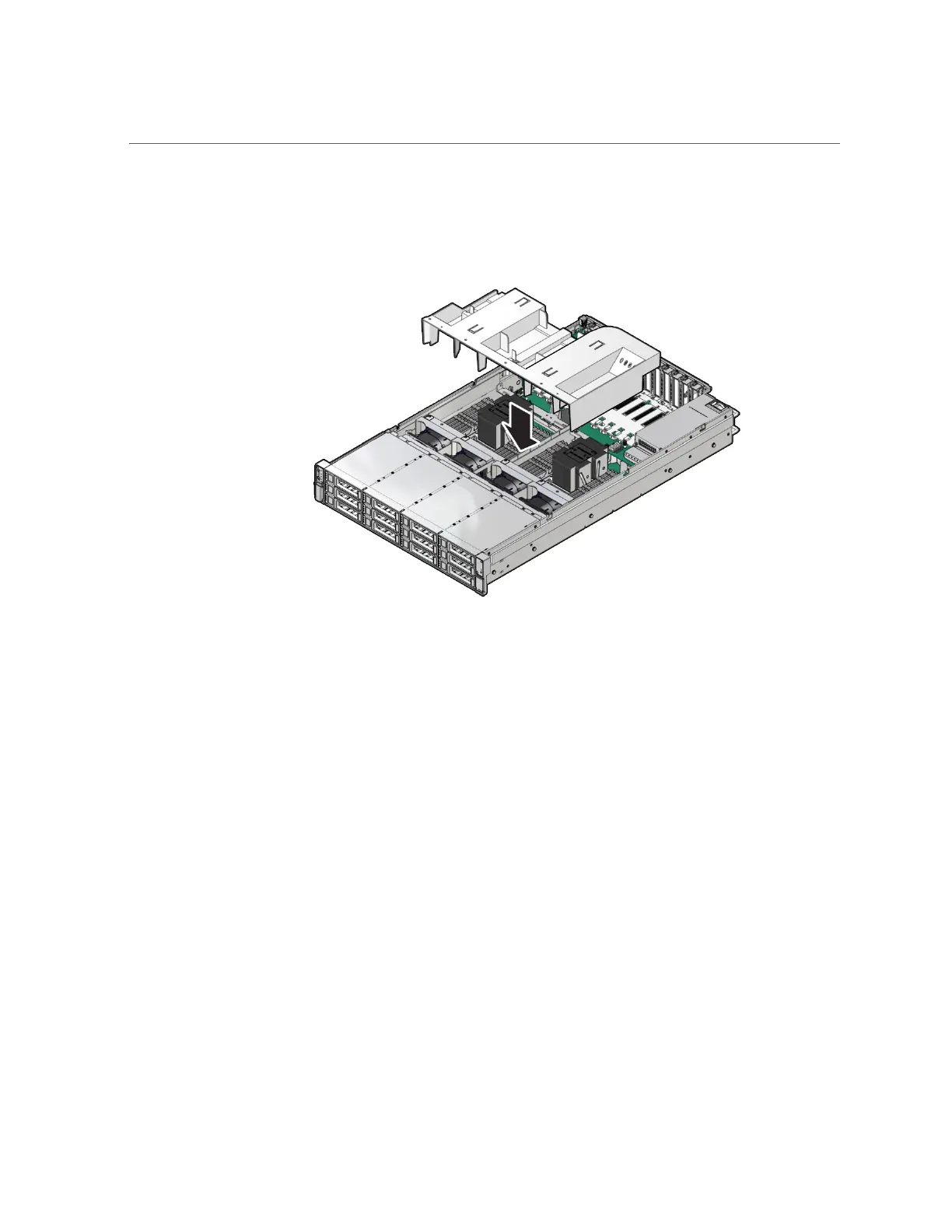

Install the Air Baffle
2.
Install the air baffle by placing it into the server and lowering it to its inserted
position.
3.
Rotate the HBA super capacitor tray down and in to its closed position.
116 Oracle Server X8-2L Service Manual • January 2021
