Install the Air Baffle

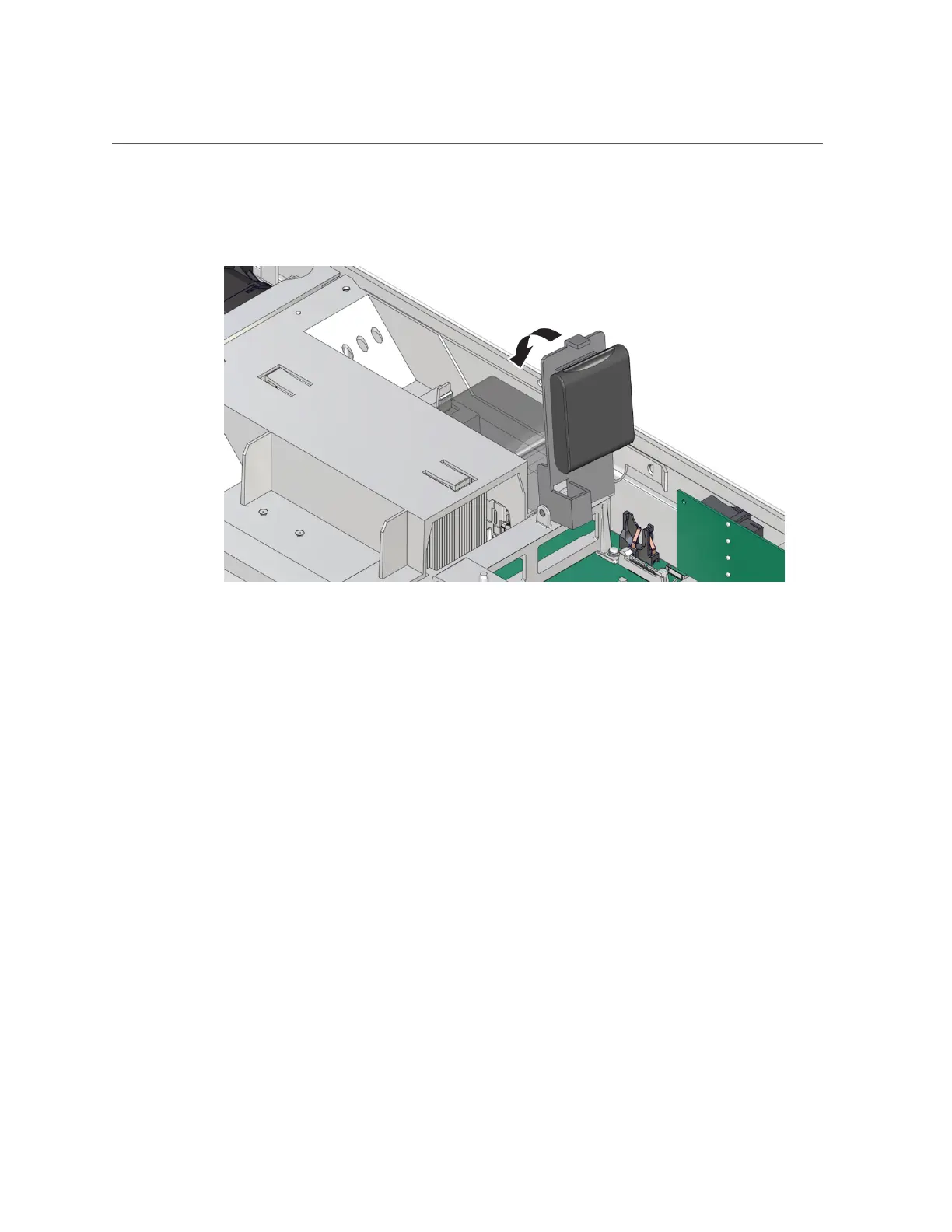

You will hear an audible click when the tray is properly secured to the air baffle.
4.
Consider your next step:
■
If you removed the air baffle as part of another procedure, return to that procedure.
■
Otherwise, continue to with this procedure.
5.
Return the server to operation:
a.
Install the server top cover.
See “Install the Server Top Cover” on page 218.
b.
Return the server to the normal rack position.
See “Return the Server to the Normal Rack Position” on page 220.
c.
Reconnect the power cords and data cables to the server.
See “Reconnect Power and Data Cables” on page 222.
d.
Power on the server.
See “Power On the Server” on page 222.
Servicing the Air Baffle (CRU) 117
