Oracle X8-2L Service Manual

Install the Internal HBA Card and HBA Super Capacitor
Note - PCIe slot 11 is the primary slot for the internal HBA card. The card is required for
controlling and managing the SAS storage drives.
3.

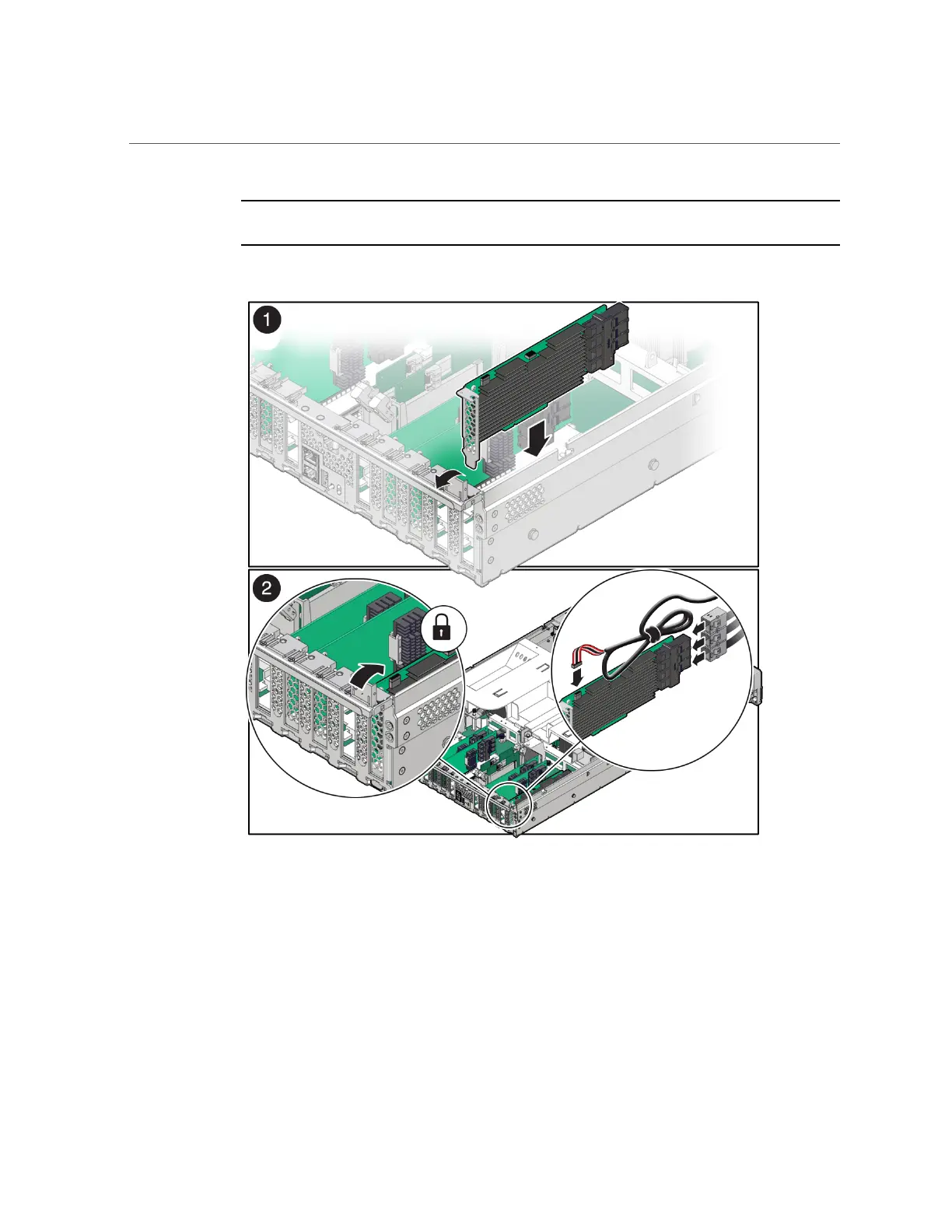

Connect the super capacitor cable to the internal HBA card, and then reconnect
the SAS cables that you unplugged during the removal procedure [2].
To ensure proper SAS cable connections, see the SAS cabling reference table in Step 3 in
“Install SAS Storage Drive Cables” on page 192.
4.
Install the HBA super capacitor in the chassis.
186 Oracle Server X8-2L Service Manual • January 2021
