Oracle X8-2L Service Manual

Troubleshoot Hardware Faults Using the Oracle ILOM Web Interface
Status

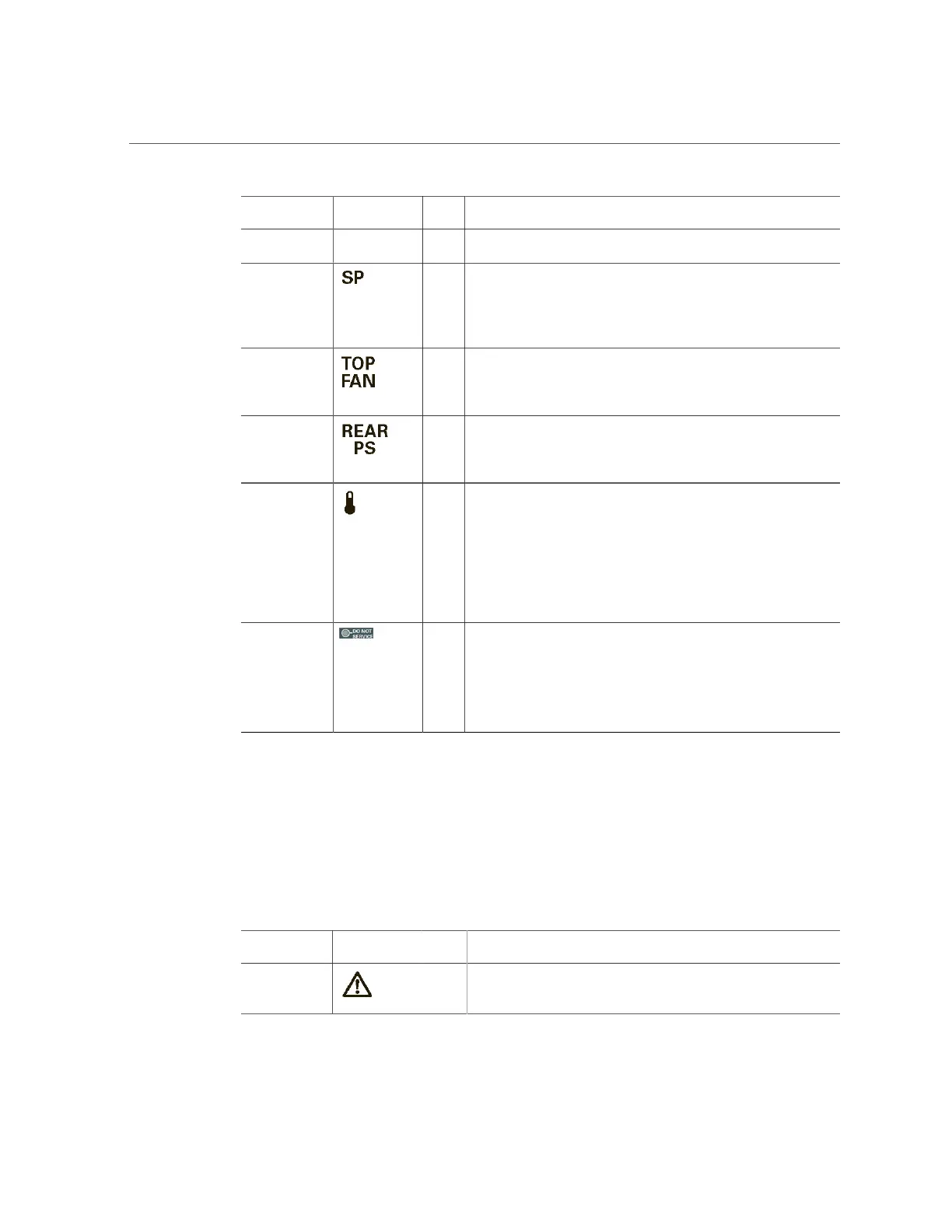

Indicator Name
Icon Color State and Meaning
states: the server host is booting the operating system (OS), or the
server host is running the OS.
SP OK Green Indicates the state of the service processor.
■ OFF – Service processor (SP) is not running.
■ SLOW BLINK – SP is booting.
■ STEADY ON – SP is fully operational.
Top Fan Amber Indicates that one or more of the internal fan modules failed.
■ OFF – Indicates steady state; no service is required.
■ STEADY ON – Indicates service required.
Back Power
Supply Fault
Amber Indicates that one of the server power supplies failed.
■ OFF – Indicates steady state; no service is required.
■ STEADY ON – Indicates service required; service the power supply.
System Over
Temperature
Warning
Amber Indicates a warning for an overtemperature condition.
■ OFF – Normal operation; no service is required.
■ STEADY ON – The system is experiencing an overtemperature
warning condition.
Note - This is a warning indication, not a fatal overtemperature. Failure
to correct this might result in the system overheating and shutting down
unexpectedly.
DO NOT
SERVICE
White Indicates that the system is not ready to service.
■ OFF – Normal operation.
■ STEADY ON – The system is not ready for service.
Note - The DO NOT SERVICE indicator is application specific. This
indicator is only illuminated on demand by the Host application.
Server Fan Status Indicators
Each fan module has one status indicator (LED). The LEDs are located on the chassis mid-
wall adjacent to and aligned with the fan modules and are visible when the server top cover is
removed.
Status
Indicator Name
Icon Color State and Meaning
Fan Status Amber ■ Off – The fan module is correctly installed and operating within
specification.
32 Oracle Server X8-2L Service Manual • January 2021
