Spa
Spa Manual Heat ON/OFF: See page 59: If the Heat Enabled (Default ON), feature
is selected and the Spa pump button (or from the Spa-Side remote, or Wireless
Controller) is turned on, the pump will turn on and the heater will begin to heat the spa
(even if the heater is set to OFF). This feature allows you to program the pool pump to
filter daily with the heater set to off, and then be ready to heat whenever the Spa button
is pressed. See Settings > Advanced System Configuration > Installation Setup > Spa
Body Configuration >Spa Settings on page
53.
Schedules (Heat Source and Set Temperature) See page 20: See Schedules
to schedule the pool/spa pump to turn on at a specific time to pre-heat the pool
or spa water. From the Schedules Weekly or One Time Only option, select "Heat
Source" and select a heat source, then set the Set Temperature settings.
Note: The Heating Set Point setting on the Spa screen is not displayed if Off is
selected on the Select Heat Source screen. Tap the Heat Mode button to display
the Select Heat Source screen.

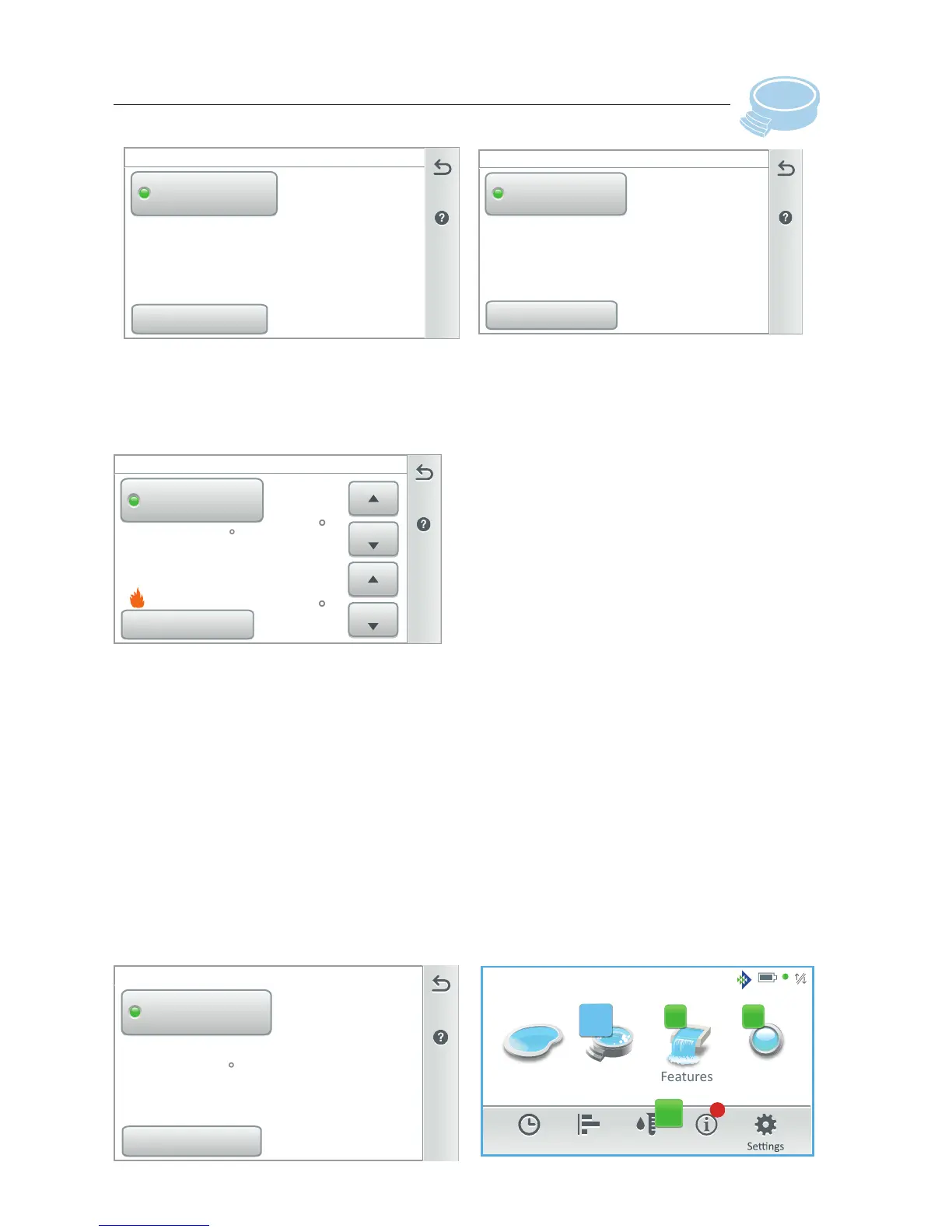

Spa Temperature
87
Spa
°
Spa Pump
Off
Heat Mode
Pool Spa Features Lights
Air Temp 65° F
Schedule Usage Chemistry Status
3 3
8:00 A.M.
6.50
0
4
78
°
Spa Heater Button: Tap to access the
Select Heat Mode screen. Tap the desired
heat source (solar or conventional
heaters).
Note: Heat sources are
configured from Settings > Advanced
System Configuration > Installation Setup >
Circuits, see page
56. Also see: Manual
OP Priority: Manual ON/OFF circuit
during a schedule. See page 44.
Spa Pump Button (Override Freeze Protect -See Delay Settings, page 87.)
Spa
Temp
40°
Pool (freeze acve)
Spa Pump
Off
Heat Mode
(press manual ON)
Spa
Temp
40°
Pool (schedule on in freeze)
Spa Pump
Off
Heat Mode
(press manual ON)
Spa
Temp
87
Spa
°
Heang
Set Point
98
°
Spa Filter Pump
Heat Pump (87°)
Cooling
Set Point
100
°
Heat Mode
Spa Freeze Override Time (0-240 min (4 hrs): Override the spa pump circuit that
has freeze protection active to run the pump and heat the spa during freezing
temperatures. This also applies if a schedule is running. Freeze Cycle Time (min):
Set the freeze protection time from 5 to 60 minutes to run the pump during
freezing temperatures. Default time is 5 minutes. See page 87 and 59.

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
