Pumps (IntelliFlo
®
VF)

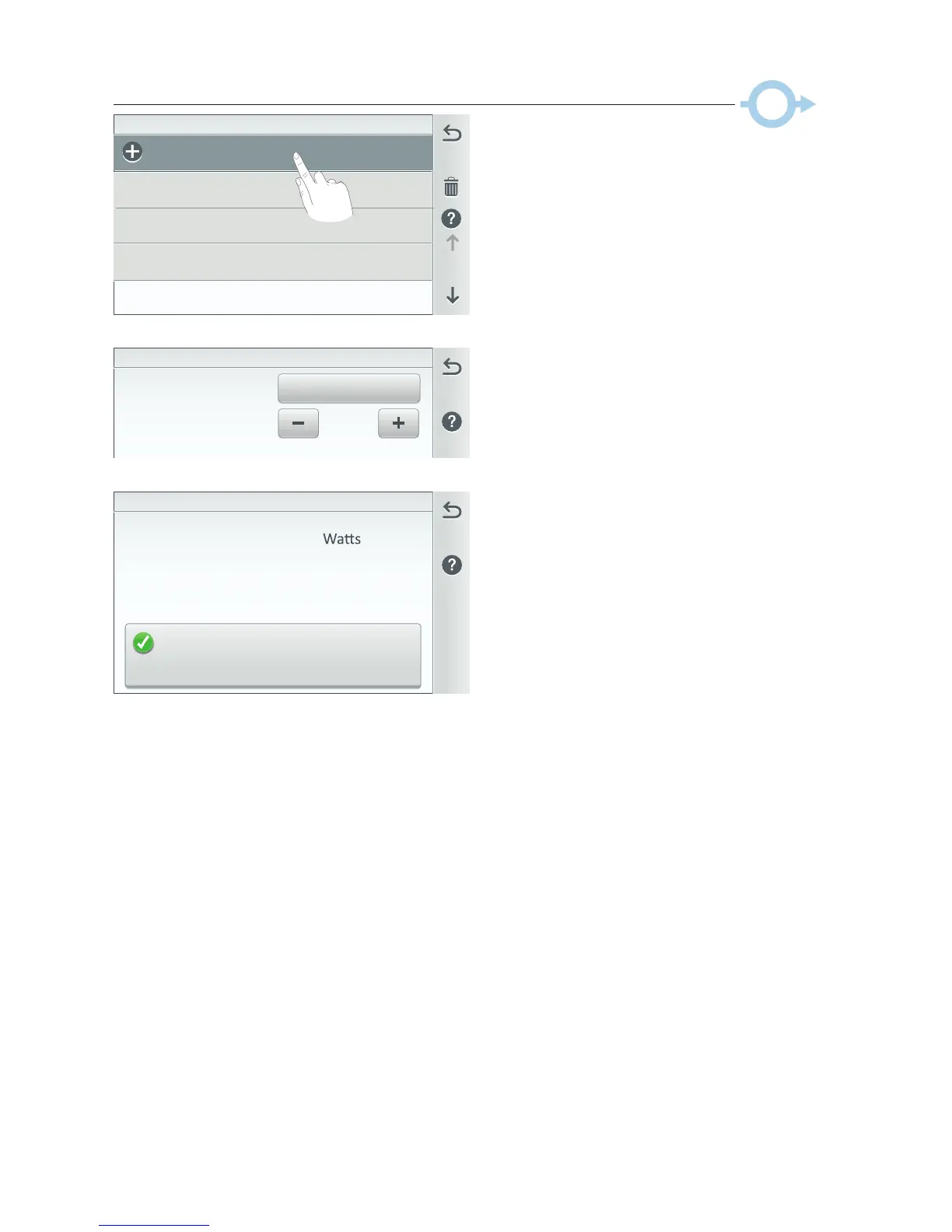

Speed Circuits: Assign the speeds
to the circuits you wish to use. Tap
Speed Circuits and tap Add Circuits to
assign a new AUX circuit. To change
the pump speed of a listed circuits, tap
the AUX name to change the assigned
RPM setting. Tap Return to save the
setting and return to the previous
screen.
Affiliated Circuit Settings:
Circuit: The assign circuit to control
the pump speed.
Flow (GPM): Assign pump flow rate
from 15 to 130 for the selected circuit.
Pump Status: Shows the current
power usage in Watts, and flow rate
in gallons per minute (GPM) while the
pump is operating. Tap Return to save
the setting and return to the previous
screen. Also see: Tap Status on the
Home screen to display the current
pump status and error condition.
No Problems Detected
Pump appears to be running normally. Click
here to view possible issues not being detected.
GPM
70
100
IntelliFlo
®
Pump Alarms and Warnings
Alerts and Warnings
The IntelliFlo
®
Variable Speed and Flow Pump displays all alarms and warnings
on the control panel display. When an alarm or warning condition exists, the
corresponding light will be lit on the display.
In the event of an alarm: The alarm light will illuminate and all control panel
buttons will be disabled until the alarm is cleared. Pressing the Reset button will
clear the alarm once the fault condition has been resolved.
In the event of a warning: The warning light will illuminate, but the pump will
continue to run. The speed, flow or pressure limit that is causing the warning
must be adjusted in order to correct the warning.
Power Out/OFF
The incoming supply voltage is less than required. The drive faults to protect
itself from over current. The drive contains capacitors that keep it powered up
long enough to save the current run parameters. If power is restored during this
process, approximately 20 seconds, the drive will not restart until completed.
Continue to next page.
