IntelliCenter Control System User’s Guide
| 9
Pool Pump On/Off Button: Tap this
button to turn the Pool Pump on to
activate the heater. Tap the Heat Mode
button to select a heat source. Note:
When the heater is turned it will
activate the pool/spa pump when the
Heating Set Point is above or at the
current water temperature reading.
Note: The Pool button name can
changed (up to nine characters),
go to
Settings > Advanced System
Configuration > Installation Setup > Body
Configuration, see
page 55.
Heating Set Point: Use the Up/Down
button to increase or decrease the heat
set point temperature.
Pool Temperature: Displays the
current pool water temperature in
Fahrenheit or Celsius, see page 41.
Pool Spa Features Lights
Air Temp 65° F
Schedule Usage Chemistry Status
3 3
8:00 A.M.
6.50
0
4
84°
78°
Flame: Snow Flake: Sun:
Heat Source Nocturnal Solar
Active Cool Down Heat Source
Select Heat Source for Pool
Off
Heater
Solar Preferred
Solar Only
Heat Pump
Pool Badge Icons: A Flame icon (heat
source active) is displayed with the
current heat set point temperature.
A Snow Flake icon indicates the
UltraTemp Heat Pump or Solar Heat (if
enabled) is in cooling mode. A Sun icon
indicates solar heat is active. Select
the heat source from the Select Heat
Source screen.
Pool

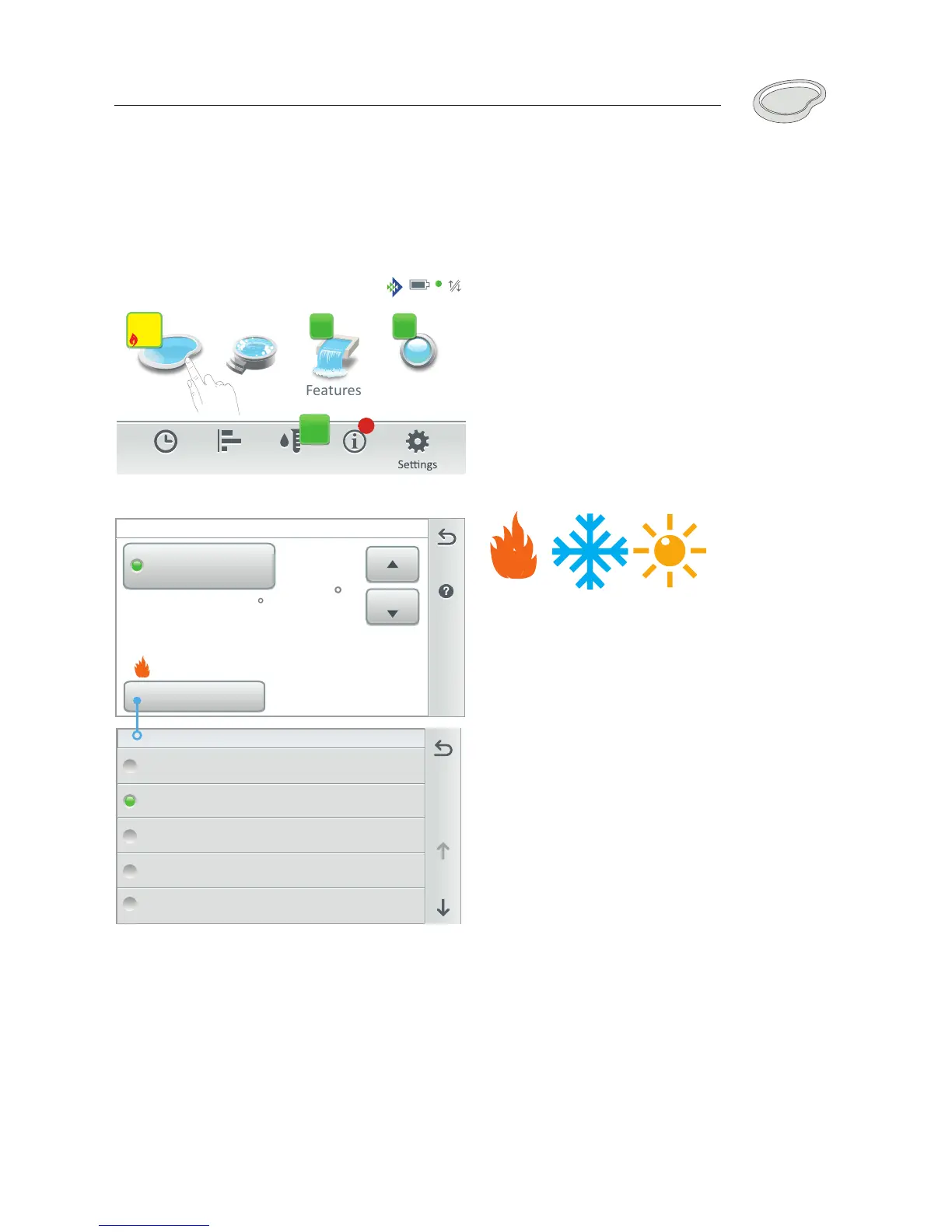

Tap the Home screen Pool icon to display the Pool Pump control settings screen.
From this screen tap the Pool Pump button to activate the pool pump. A Blue badge
displayed on the Pool icon indicates the Pool/Spa pump button has been manual
turned on. The Blue badge displays until the pump button is turned off. The badge
displays the current pool water temperature. If there is a heat source active, a
flame icon is displayed with the pool water set point temperature. Note: For more
information about screen badges, see page 3.
Heat Mode indicators:
Heat Mode Button: Tap the Heat Mode
button to select the heat source type: Off
(no heat source), Heater, Solar Only, Solar
Preferred, Heat Pump, UltraTemp (Hybrid)
or UltraTemp (Hybrid) Preferred. Note: To
add a heater, see page 72.
Pool
Temp
77
Pool
°
Heang
Set Point
78
°
Heater
Heat Mode
Pool
Note: The displayed heat sources are
configured from Settings > Advanced
System Configuration > Installation Setup >
Circuits, see page
56.

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
