IntelliCenter Control System User’s Guide
| 81
QuickTouch Buon Assignment
Spa
1
2
2
3
3
4
4
Changing the remote type will reset all type-specific
Quick
Touch
iS10
SpaCommand
Select Remote Type
QuickTouch (QT) Remote [Advanced System Configuration]

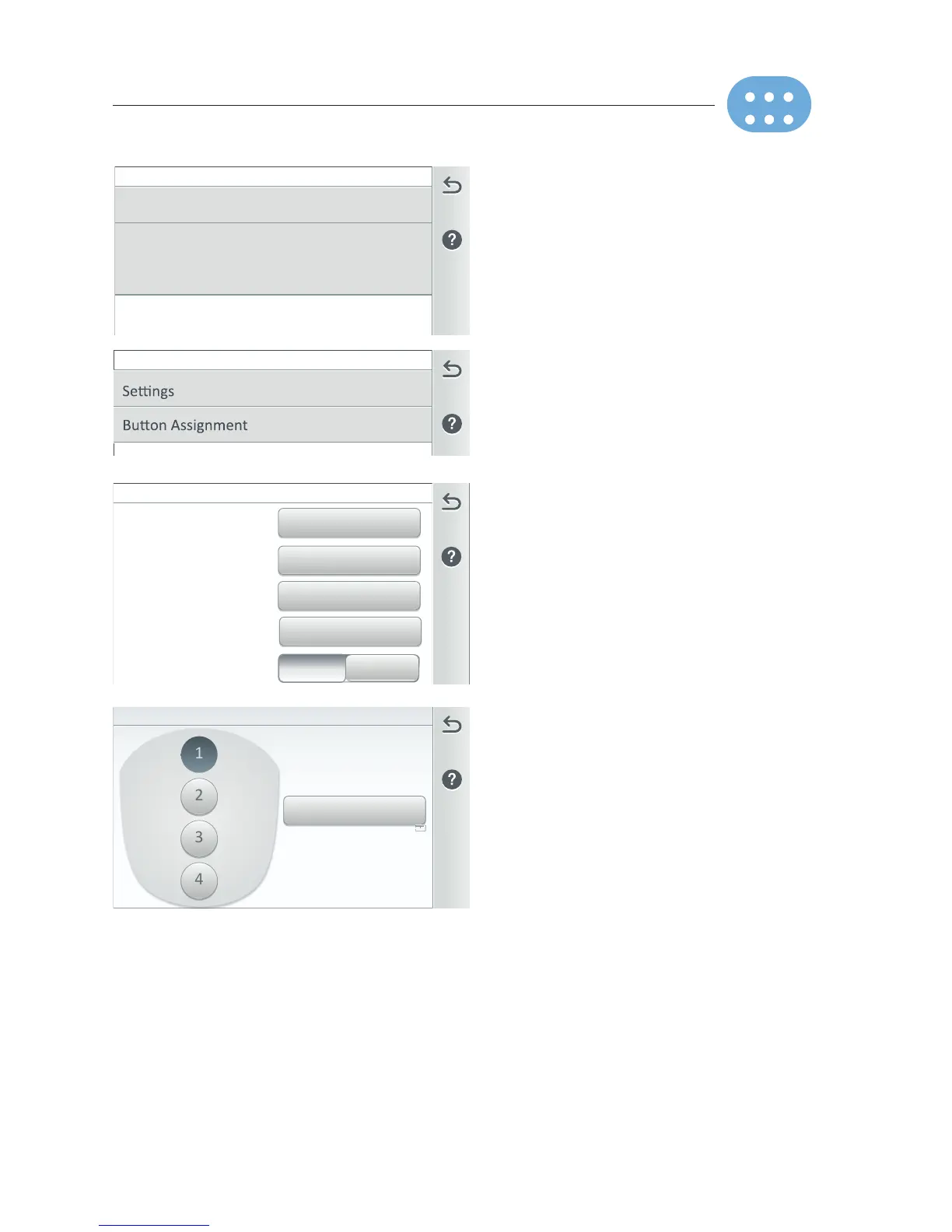

QuickTouch Spa-Side Remote: To configure a QuickTouch II remote,
tap + Add Remote and choose QT from the Select New Remote screen.
QuickTouch Settings: From the QT
Overview screen. Tap Settings to display
QT settings options.
Remote Type: The Remote Type is
assigned as QT.
Remote Name: To change the name,
tap the Remote Name button. Enter the
new name and tap Check to save.
Affiliated Body: Tap the Affiliated Body
of water button. Select Spa (or Pool).
Tap Return to save.
Affiliated Pump: Tap the Affiliated
Pump circuit button. Select the pump
circuit that is assigned to the QT
remote. Tap Check to save. See Pump
on page 62 to assign pump circuits.
Enable Remote: Tap the Enable Remote
ON/OFF button to turn the remote ON
or OFF.
Button Assignments (1-4): Tap Button
1, then tap the Unassigned button
and choose a circuit function for the
selected button. Repeat this step
for buttons 2-4. The available AUX
circuits displayed are assigned in the
Circuits option screen, see page 56
(AUX Circuits and Feature Circuits,
see, Settings > Advanced System
Configuration > Installation Setup >
Circuits).
Delete Remote: From Remotes screen
tap the Trash Can icon, select the
remotes to delete and tap Check. Tap
Yes to delete the selected remotes.
QT Overview
Select New Remote
QT
iS10
SpaCommand
QT4 #1
Remote Name
QT
Remote Type
ONEnable Remote
QuickTouch Sengs
Spa
Affiliated Body
Unassigned
Affiliated Pump
