IntelliCenter Control System User’s Guide
| 55
Body Configuraon
Master Panel
Pool
Body 0
Spa
Body 1
Expansion 1 (disabled)
Expansion 2 (disabled)
OCP0
XCP0
XCp1
Installation [Body Configuration]
Expansion 1 (disabled) (XCP0):
equipment).
Expansion 2 (disabled) (XCP0) : For
Pool and Spa combination (shared
equipment).
Expansion 3 (disabled) (XCP0) : For
Pool and Spa combination (shared
equipment).

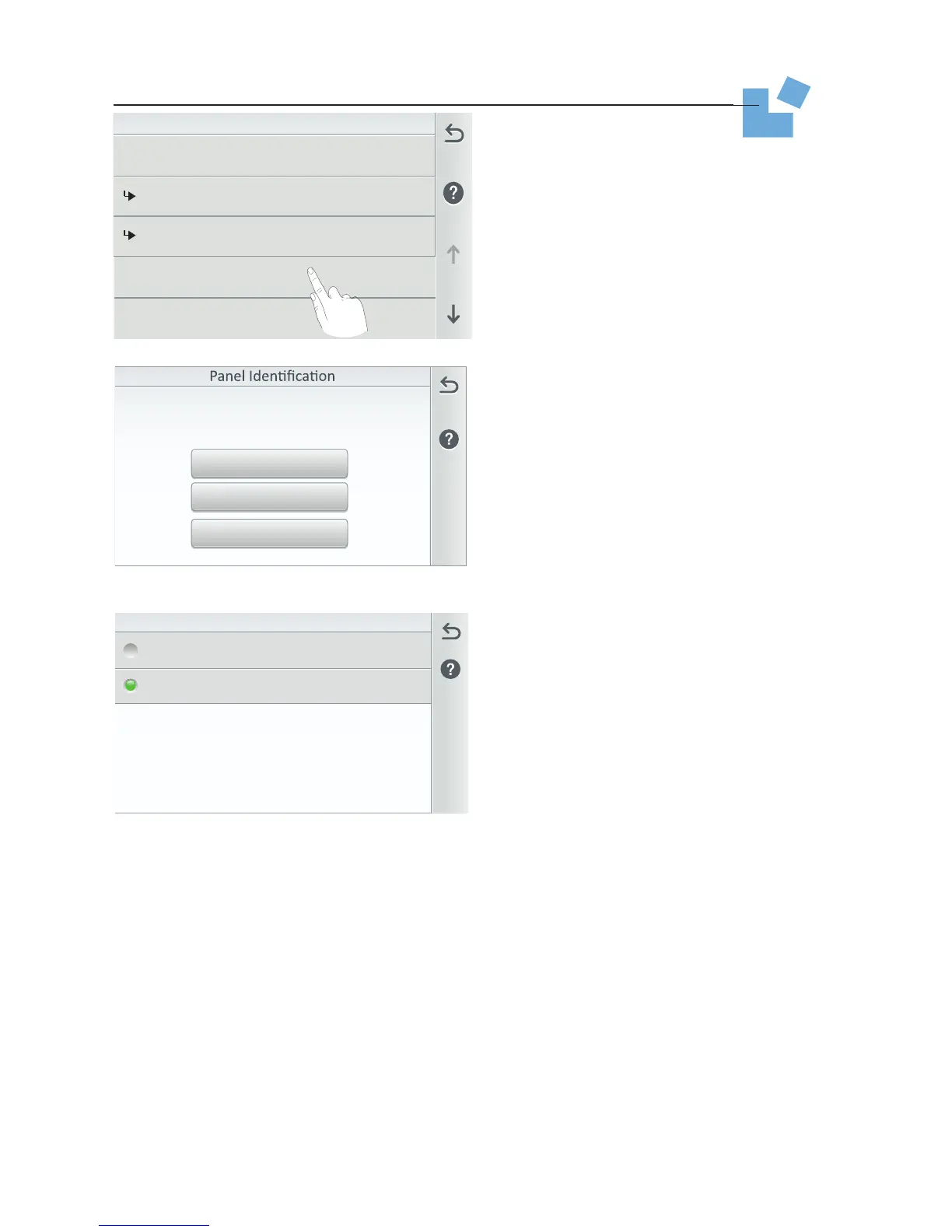

Panel Assignment
Panel Name
Expansion 1
i10x (10 Relays)
Panel Identification
(Expansion 1, 2, and 3):
Panel Name: Tap Panel Name
and enter the panel name for the
Expansion 1 enclosure. Tap Check to
save.
Panel Assignment: Tap Panel
Assignment to Disable or Enable the
Expansion Panel. Tap Check to save.
Expansion Panel Daughter card - i10x
(10 Relays): This button displays the
Daughter Card attached to the main
Personality Card (if available) installed
in Expansion enclosure number 1. Tap
this button to enable an additional
Daughter Card connected to the main
Personality board (in this example i10x
(10 Relays). Tap the Expansion Panel
Daughter Card button to enable the
card (Green light on).
See page 106 for more information
about IntelliCenter™ Control Panel
system configurations.
Expansion Panel Daughter Card
i5x (default)
i10x (requires i10x kit)

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
