Pentair INTELLICENTER - Panel Identification

IntelliCenter Control System User’s Guide
54 |

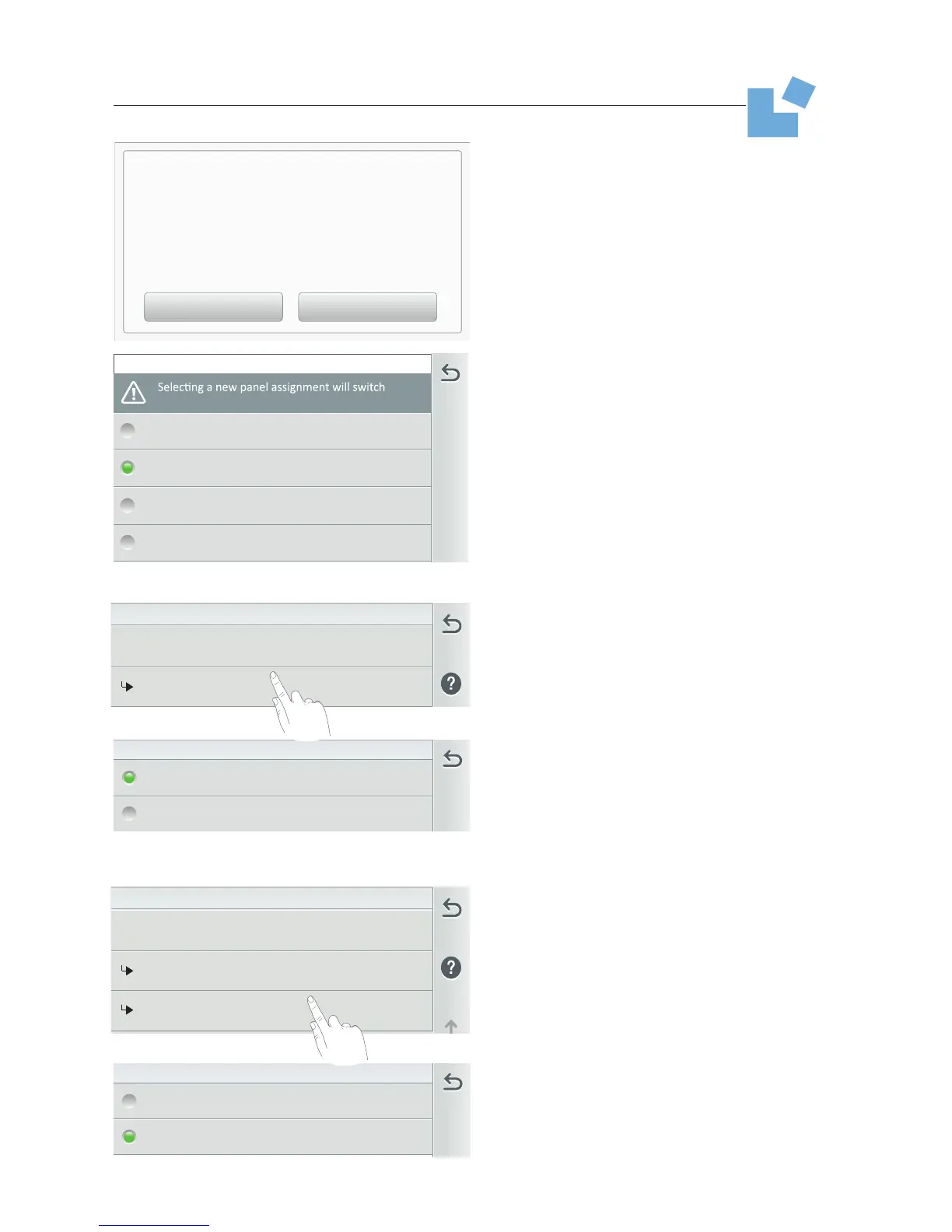

Panel Assignment
YesNo
Circuits are already assigned in one or both
panels. Changing the panel assignment will
also switch the circuit assignments.
Are you sure you want to change the
panel assignment?
OCP0
XCP0
XCP1
Change Panel Assignment
assignments between panels.
XCP2
Panel Identification (Master Panel) (Continued)
Advanced System Configuration (Installation Setup)
Panel Assignment: Tap Yes to change
the panel assignment.
Show Identifier in Other Panels: Tap to
select other installed panel to display in
other panel screen. Tap Check to save.
Pool (Body 0) - For Pool and Spa combination (shared equipment).
Spa (Body 1) -For Pool and Spa combination (shared equipment).
Select Body 1 Type for Master Panel
Pool
Spa
Select Body 0 Type for Master Panel
Pool
Spa
Change Panel Assignment: To change
the panel assignment, tap on the panel
name. Tap Check to save and return to
the previous screen.
Body Configuraon
Master Panel
Pool
Body 0
Spa
Body 1
Expansion 1 (disabled)
Expansion 2 (disabled)
OCP0
XCP0
XCp1
Body Configuraon
Master Panel
Pool
Body 0
Spa
Body 1
Expansion 1 (disabled)
Expansion 2 (disabled)
OCP0
XCP0
XCp1
Pool (Body 0 Settings): From this
screen you can reassign the body
type/*, name and capacity.
Body Type: Reassign the body type.
Choose either Pool or Spa. Tap Return
to return to the previous screen.
Body Name: Enter the body name.
Body capacity: Enter the capacity of
the body of water from 1000 - 150,000
gallons (US gallons/liters).
Spa (Body 1 Settings): From this screen
you can reassign the body type, name
and capacity.
Body Type: Reassign the body type.
Choose either Pool or Spa. Tap Return
to return to the previous screen.
Body Name: Enter the body name.
Body capacity: Enter the capacity of
the body of water from 1000 - 40,000
gallons (US gallons/liters).
