IntelliCenter Control System User’s Guide
| 79
Installation (Pool and Spa Cover)
Pool Cover Settings:
Cover Enabled: Select either Enabled
or Disabled.
Cover State Normally: Select either
Closed or Open for the state that the
pool or spa cover is usually in.
Affected Circuits: Select the circuits
that you want to switch OFF/ON when
the pool or spa cover is closed or open.
Tap Check to save and return to the
Settings screen.
IntelliChlor Active (0-40): Select ON to
switch the IntelliChlor SCG circuit OFF
when the pool or spa cover is closed.
IntelliChlor Output: While the pool
or spa cover is closed, select the
IntelliChlor SCG chlorine output from 0
to 50 %.

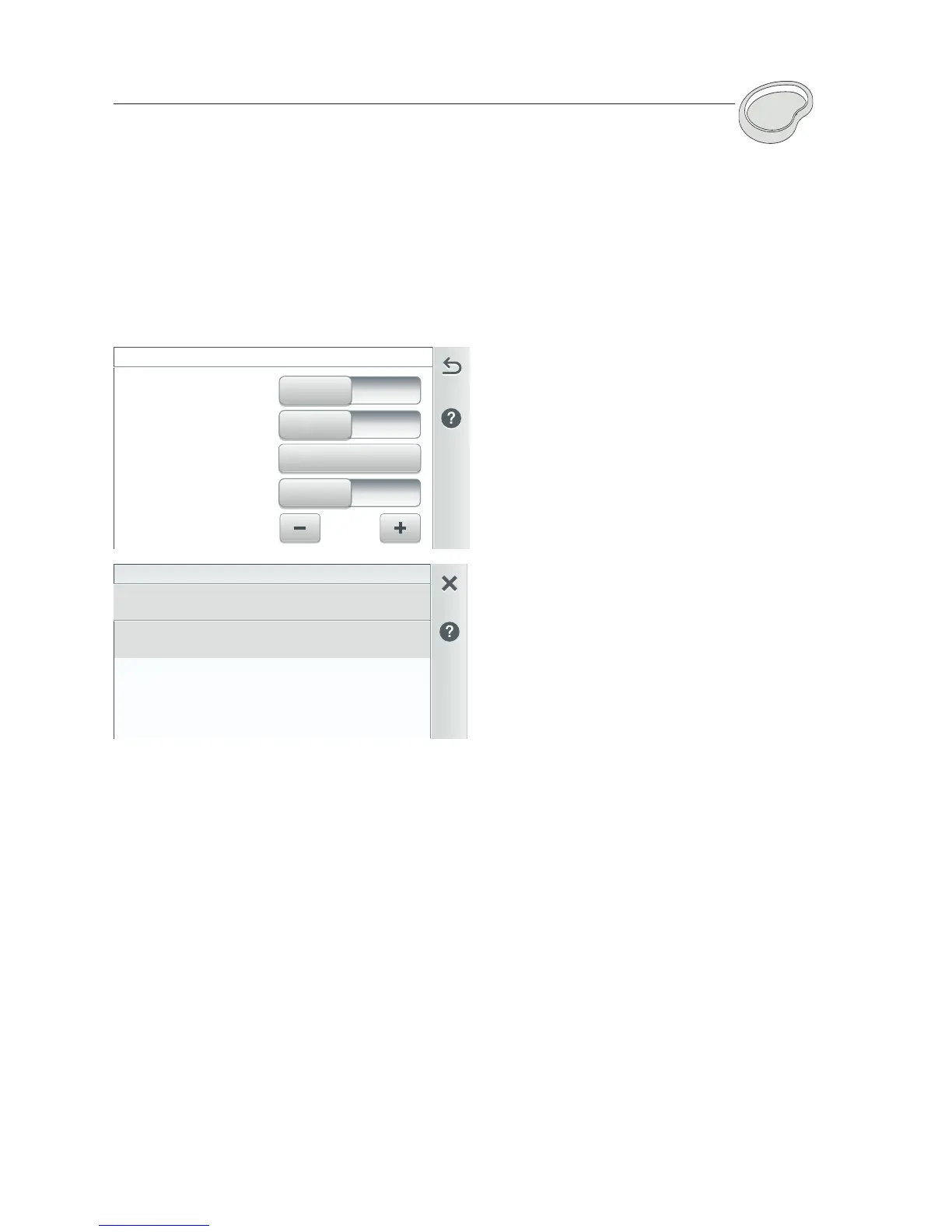

From the Installation Setup screen, Tap Pool and Spa Cover to display the
Pool and Spa Cover Select screen. The system supports two pool or spa
covers (Pool/Spa Cover 1 or Pool/Spa Cover 2) one cover for each body of
water. From the Pool/Spa Cover settings you select which circuits to switch
OFF and ON when the pool or spa cover is closed or open.
Valve Type
Pool Cover 1 Sengs
Cover Enabled
20
IntelliChlor Output
Disabled
IntelliChlor Acve
OFF
Configure...
Affected Circuits
Valve Type
Cover State Normally
Open
Pool or Spa Cover Position: "OPEN" and "COVERED" is displayed on the Home
screen to indicate the current position of the cover. The cover connection is via an
RS-485 COM Port on the IntelliCenter™ Control System Expansion Card.
Select Pool Cover
Cover 1
Cover 2

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
