SpaCommand Remote [Advanced System Configuration]
Select Remote Channel (SpaCommand)
1 2
3 4

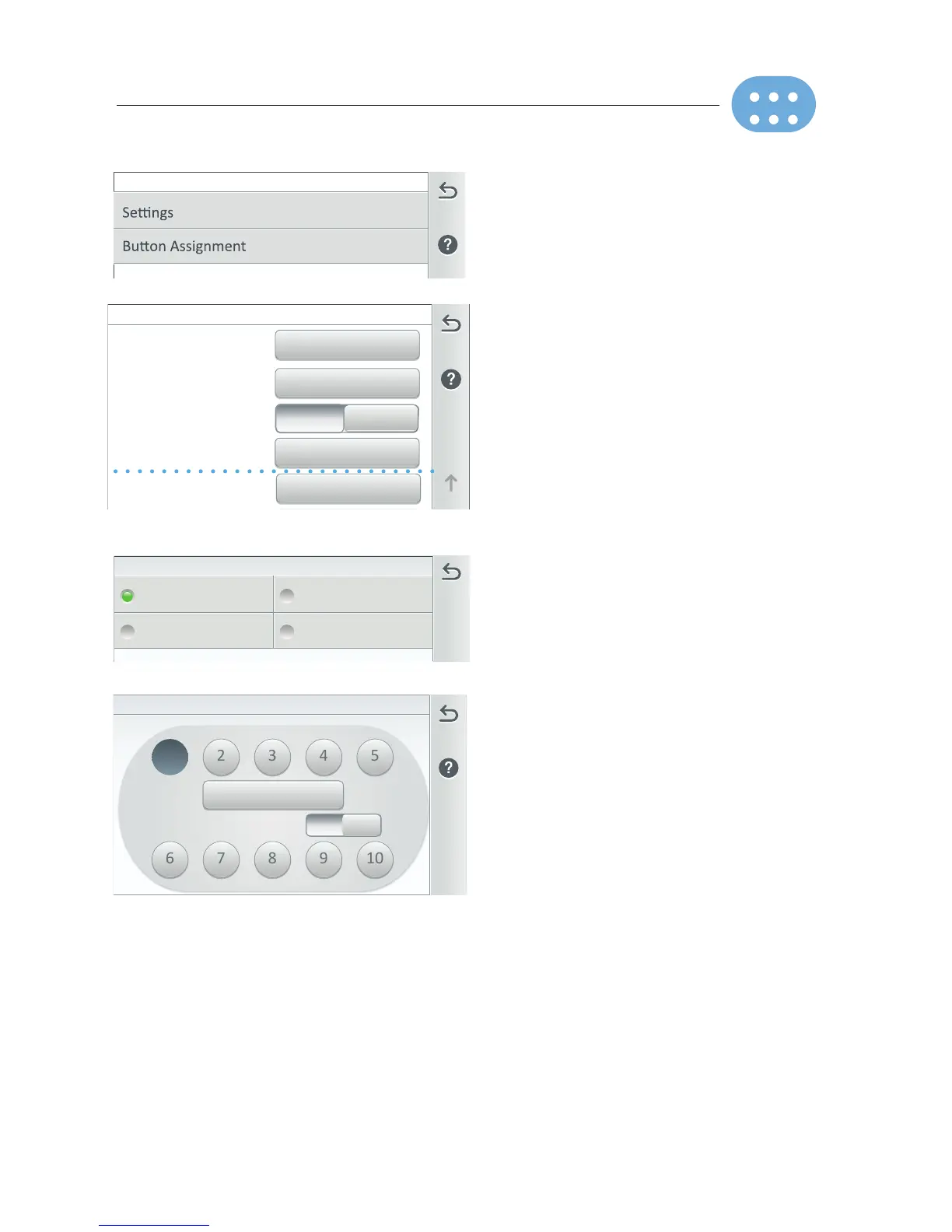

SpaCommand Settings: From the
SpaCommand Overview screen. Tap
Settings to display SpaCommand
setting options.
Remote Type: The Remote Type is
assigned as SpaCommand.
Remote Name: To change the name,
tap the Remote Name button. Enter the
new name and tap Check to save.
Enable Remote: Tap the Enable Remote
ON/OFF button to turn the remote ON
or OFF.
Remote Channel: Tap the Remote
Channel number and select a channel
form 1-4. Tap this button to assign a
communication address
(1, 2, 3 or 4). The assigned channel
is used to communicate to multiple
SpaCommand to mirror each other or
to operate individually with different
functions.
Affiliated Pump: Tap the Affiliated
Pump circuit button. Select the
pump circuit that is assigned to the
SpaCommand remote. Tap Check to
save. See Pump on page 62 to assign
pump circuits.
Body: The remote is assigned to
Spa. To reassign to a different body
of water go to Advanced System
Configuration >Installation Setup >Body
Configuration, see page 53.
SpaCommand Spa-Side Remote: To configure a SpaCommand remote,
tap + Add Remote and choose SpaCommand from the Select New Remote screen.
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
Spa
Address Mode
ON
SpaCommand Buon Assignment
SpaCommand Overview
Button Assignments (1 -10): Tap Button
1, then tap the Unassigned button and
choose a circuit function for the selected
button. Repeat this step for buttons 2-10.
The available AUX circuits displayed are
assigned in the Circuits option screen,
see page 56 (AUX Circuits and Feature
Circuits, see, Settings > Advanced System
Configuration > Installation Setup >
Circuits).
Address Mode ON/OFF: Tap this button
enable or disable the assigned Remote
Channel (1-4).
SpaCommand #1
Remote Name
SpaCommand
Remote Type
ONEnable Remote
SpaCommand Sengs
2
Remote Channel
Unassigned
Affiliated Pump
Spa
Body
Delete Remote: From Remotes screen tap
the Trash Can icon, select the remotes to
delete and tap Check. Tap Yes to delete
the selected remotes.
Note: The SpaCommand remote requires a
wired RS-485 connection to a COM port on
main circuit board in the load center.
