Lights
MagicStream Laminars
GloBrite Color Light
ColorCascade Lights Pool Party
IntelliBrite Sunset

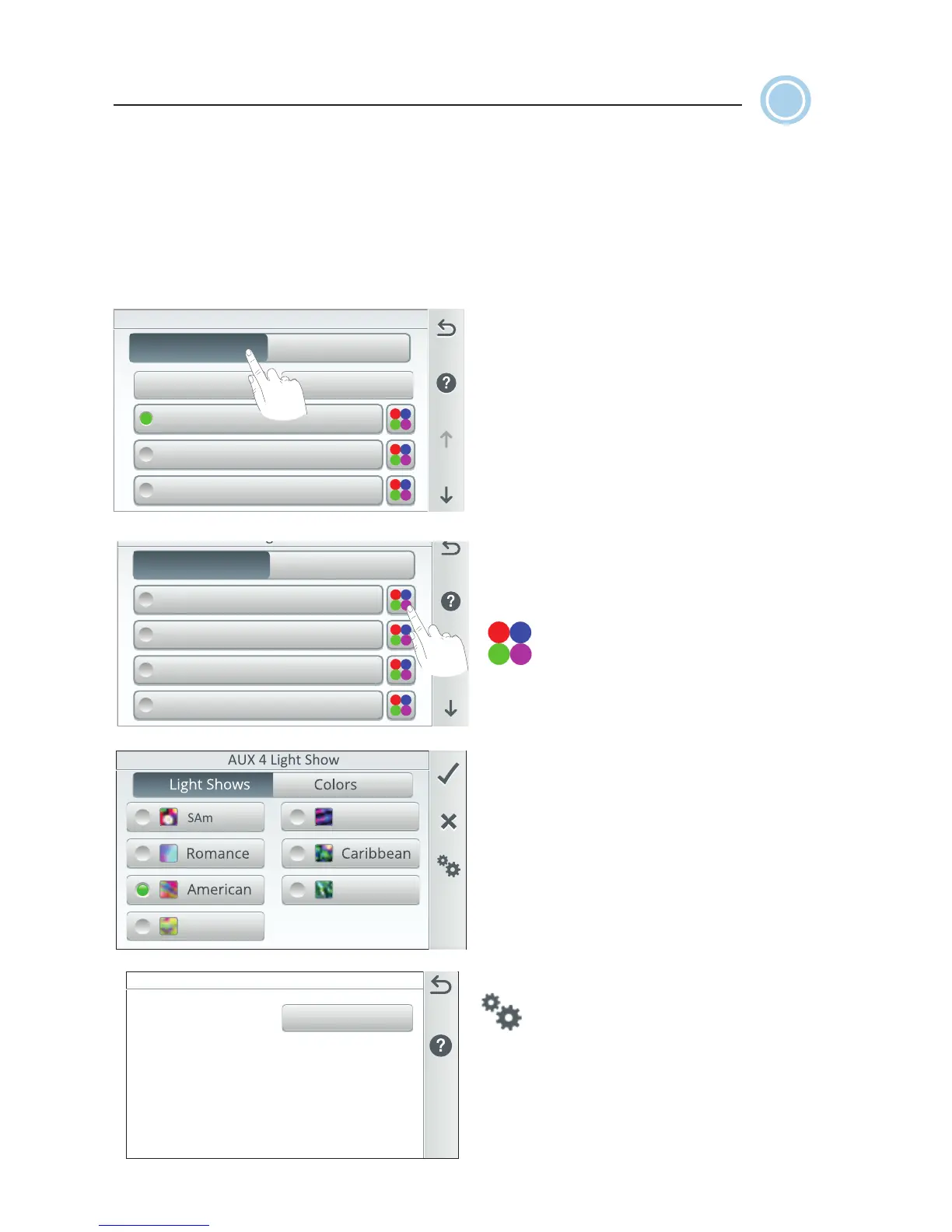

GroupsIndividual
Four Color Dots Edit Button
(IntelliBrite): Tap edit button
to display the Colors or Light
Shows screen.
Light Shows: Includes IntelliBrite,
ColorCascade, GloBrite Color Light,
and MagicStream. Tap one of the
displayed Light Shows to switch the
light show on or off. The options are:
SAm, Romance, American, Royalty,
Party, Caribbean, and Sunset.
Check: Tap Check to save changes
and return to the Lights screen.
X button: Tap to exit and return to
the previous screen without saving
changes.
Lights (MagicStream
®
, IntelliBrite
®
, ColorCascade
®
and GloBrite
®
)
To access the Lights screen, tap the Lights icon on the Home screen. From the
Lights screen you can manually turn on or off individual lights, groups of lights or
all lights. Lights displayed in the Lights screen are configured from the Circuits
screen, see Settings > Advanced System Configuration > Installation Setup >
Circuits, page 56. Light circuits settings include Schedule Egg Timer and
Freeze Protect options. Note: A Green number badge displayed on the Home
screen Lights and Features icon, indicates the number of individual and/or groups
of lights currently turned on. To hide the number badge on the Features icon, turn
Visible in Features OFF. See page 56.
Lights
GroupsIndividual
All On
All Off
MagicStream Laminars
GloBrite Color Light
ColorCascade Lights Pool Party
All On/All Off Button (IntelliBrite
®
,
ColorCascade
®
, GloBrite
®
Light (Color
and White), and MagicStream
®
lights):
Tap the All On or All Off button to turn
all light circuits On or Off. Note: Up to
12 light circuits can be configured.
Lights (Individual/Groups Button):
Tap either of these buttons to toggle
between the Individual and Groups
screens.
Individual: Displays the assigned
individual AUX Light circuits. Tap the
light name button to turn the light ON
or OFF.
AUX 4 Light Show
SAm
Royalty
Party
Sunset
MagicStream Laminar only
(Light Shows and Colors): Tap
the Gears icon to access the
Thumper Toggle screen. Tap the
Thumper button to activate the built-in
solenoid Thumper to create a random
wrinkle in the laminar’s water stream
and display a brilliant spot of light that
moves along the stream’s arc.
Thumper Control
Thumper
Laminar Thumper Toggle
Tap the Thumper buon to toggle the
state of the MagicStream Laminar.
The new seng will be save.
