Pfaff creative icon User Manual

Introduction
Top

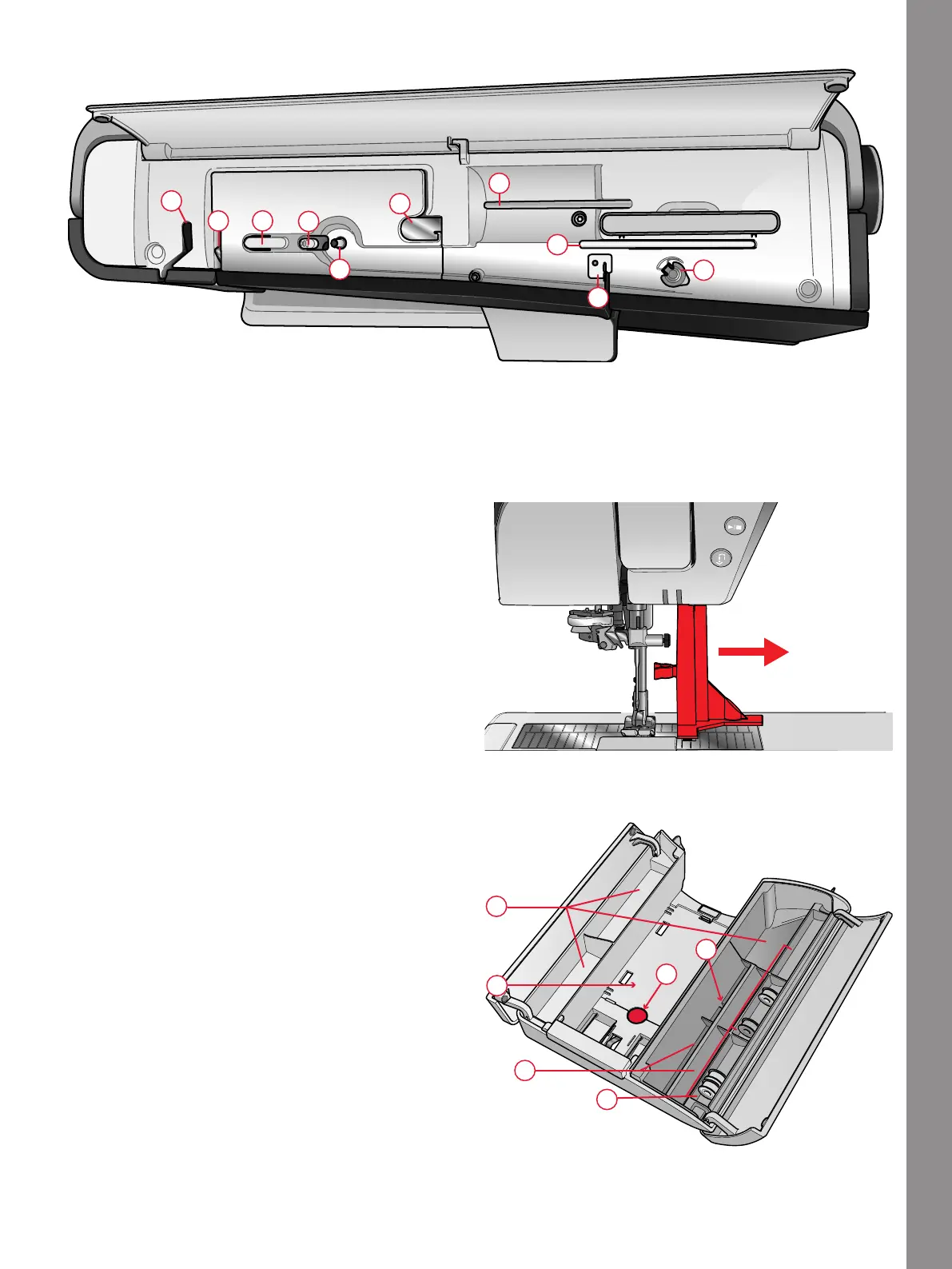

1. Thread take-up lever
2. Thread tension discs
3. Thread cutter
4. Bobbin winder lever
5. Bobbin winder
6. Pre-tension thread guide
7. Main spool pin
8. Auxiliary spool pin
9. Bobbin winding thread guide
10. Thread tension disc for bobbin winding
Note: The machine is delivered with three red safety catches;
one attached to the presser foot bar, one in the accessory tray
and one underneath the embroidery unit. These should all be
removed before sewing.
Accessory Tray
The accessory tray features special compartments for
presser feet and bobbins, plus space for needles and
other accessories. Store the accessories in the tray so
they are easily accessible.
1. Space for accessories
2. Space for needle plate
3. Spaces for presser feet
4. Spaces for bobbins
5. Space with hole for 5M Manual Buttonhole Foot
6. Safety catch (remove before sewing)
2
3
4
5
6
7
8
10
9
1
2
3
4
5
1
6
13

Pfaff creative icon Specifications

General

Stitch Width	9 mm
Needle Positions	37
Lighting	LED
USB Port	Yes
Automatic Thread Cutter	Yes
Built-in Memory	Yes
Maximum Sewing Speed	1050 stitches per minute
Connectivity	WiFi, USB
Needle Threader	Fully Automatic
Bobbin Winding	Separate bobbin winding motor
Screen	10.1" Full Color Touch Screen
Weight	15.6 kg
