Pfaff creative icon User Manual

Preparations
Telescopic Thread Guide
The telescopic thread guide is always used when
threading your machine for sewing/embroidery and
bobbin winding. The telescopic thread guide helps
straighten the thread, preventing it from tangling or
breaking. The thread guide together with the vertical
spool pins make it possible to successfully use very
large thread cones.
Extending and Retracting the Telescopic Thread Guide

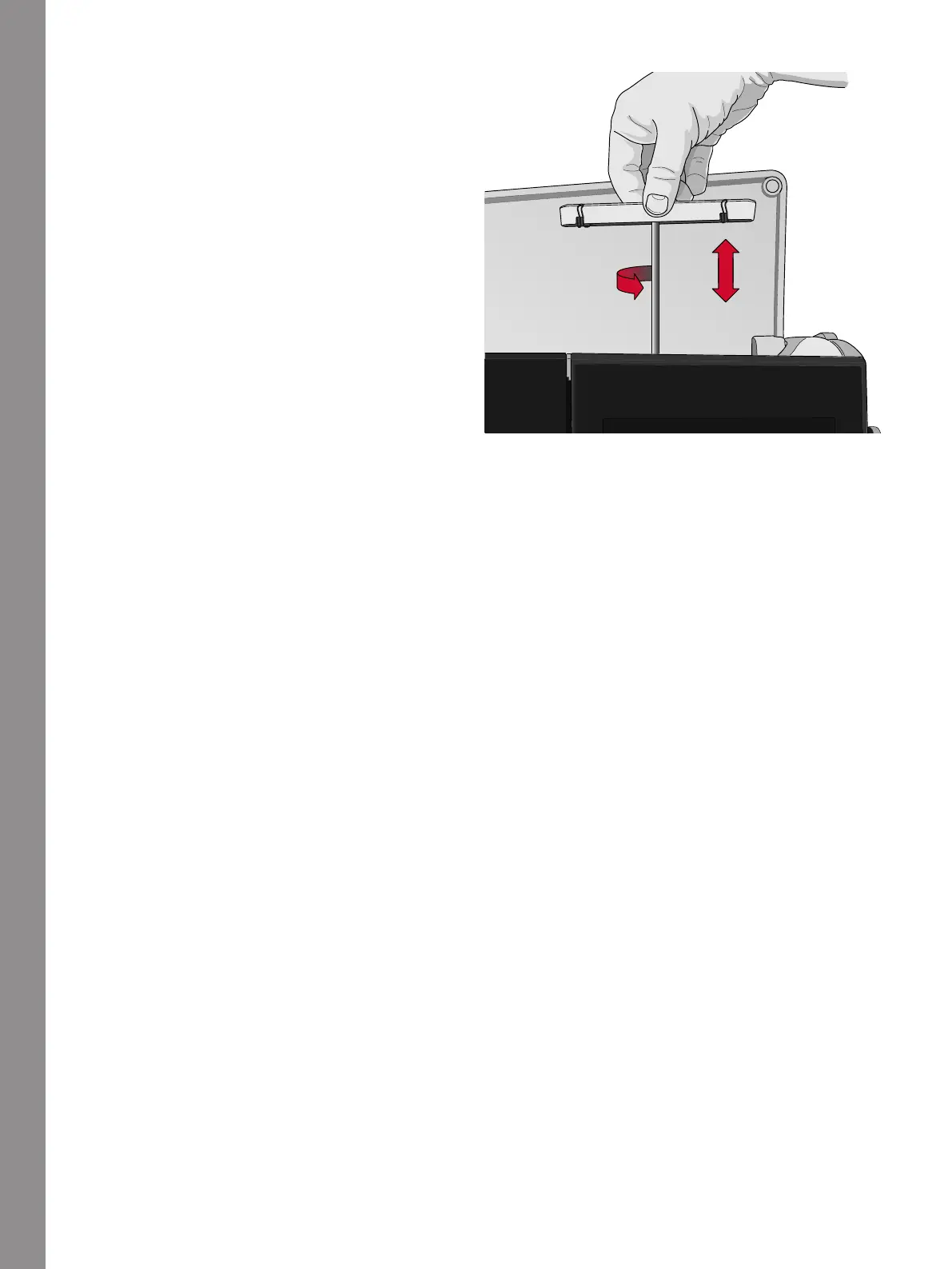

Hold the telescopic thread guide as illustrated and pull
it straight up, turn it until it clicks into place.
To retract, hold the thread guide and push it straight
down.
30

Pfaff creative icon Specifications

General

Stitch Width	9 mm
Needle Positions	37
Lighting	LED
USB Port	Yes
Automatic Thread Cutter	Yes
Built-in Memory	Yes
Maximum Sewing Speed	1050 stitches per minute
Connectivity	WiFi, USB
Needle Threader	Fully Automatic
Bobbin Winding	Separate bobbin winding motor
Screen	10.1" Full Color Touch Screen
Weight	15.6 kg
