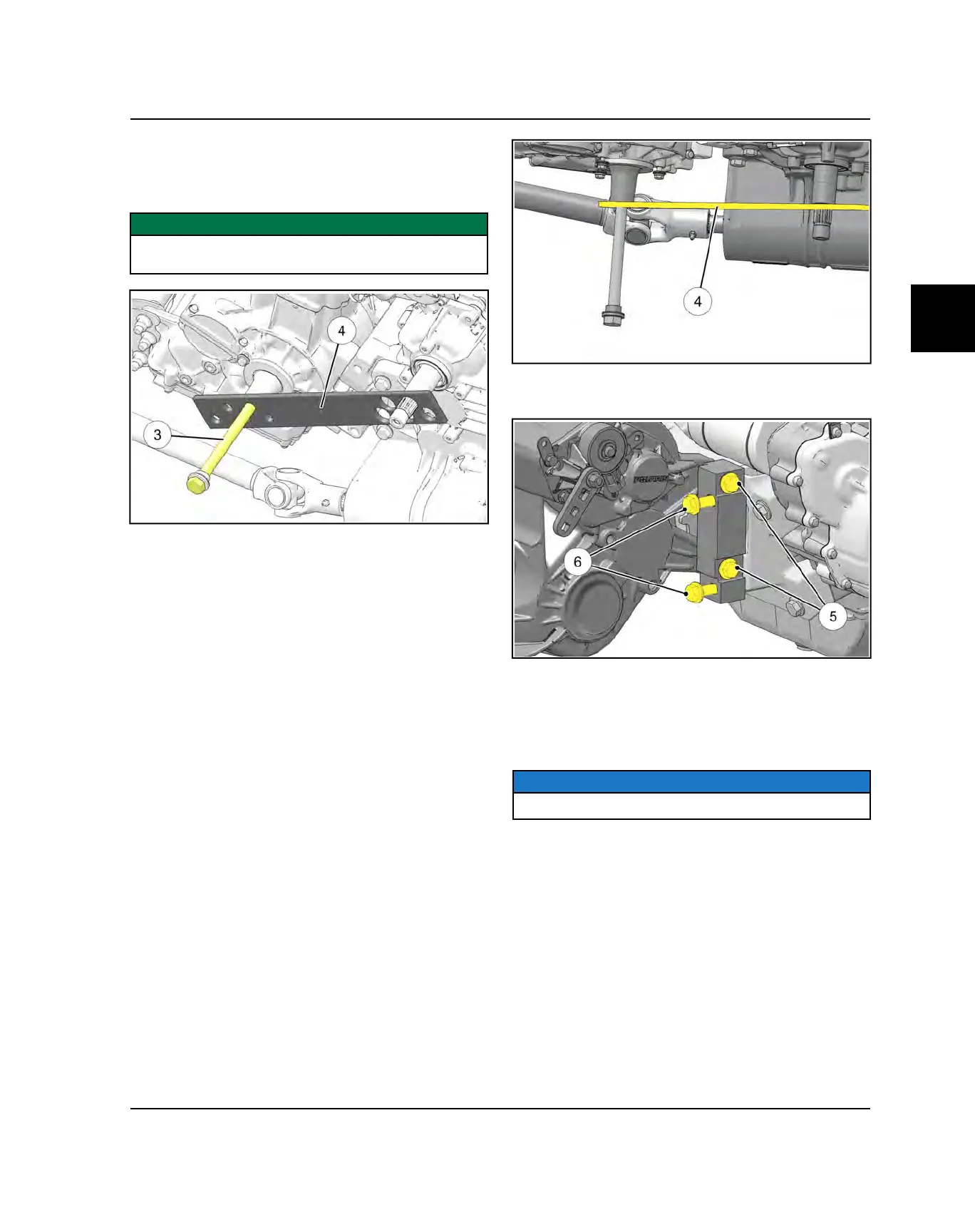

7. Install the Clutch Center Distance Tool (PU-50658-A)
onto the crankshaft
e
and transmission input shaft to
properly position the clutch center distance. The
pictures below show the tool properly installed
r
.
IMPORTANT
Use hole number 4 on the Drive clutch side and hold
number 4 on the Driven Clutch.
8. Loosen the two bolts
t
retaining transmission joint
bracket to the transmission on the right side.
9. Align the front transmission mounting holes with
transmission joint bracket mounting holes on engine.
10.Install the two bolts
y
retaining the transmission joint
bracket to the engine on the right side. Hand tighten
the bolts so they remain loose at this time.
NOTICE
DO NOT torque fasteners at this time.
