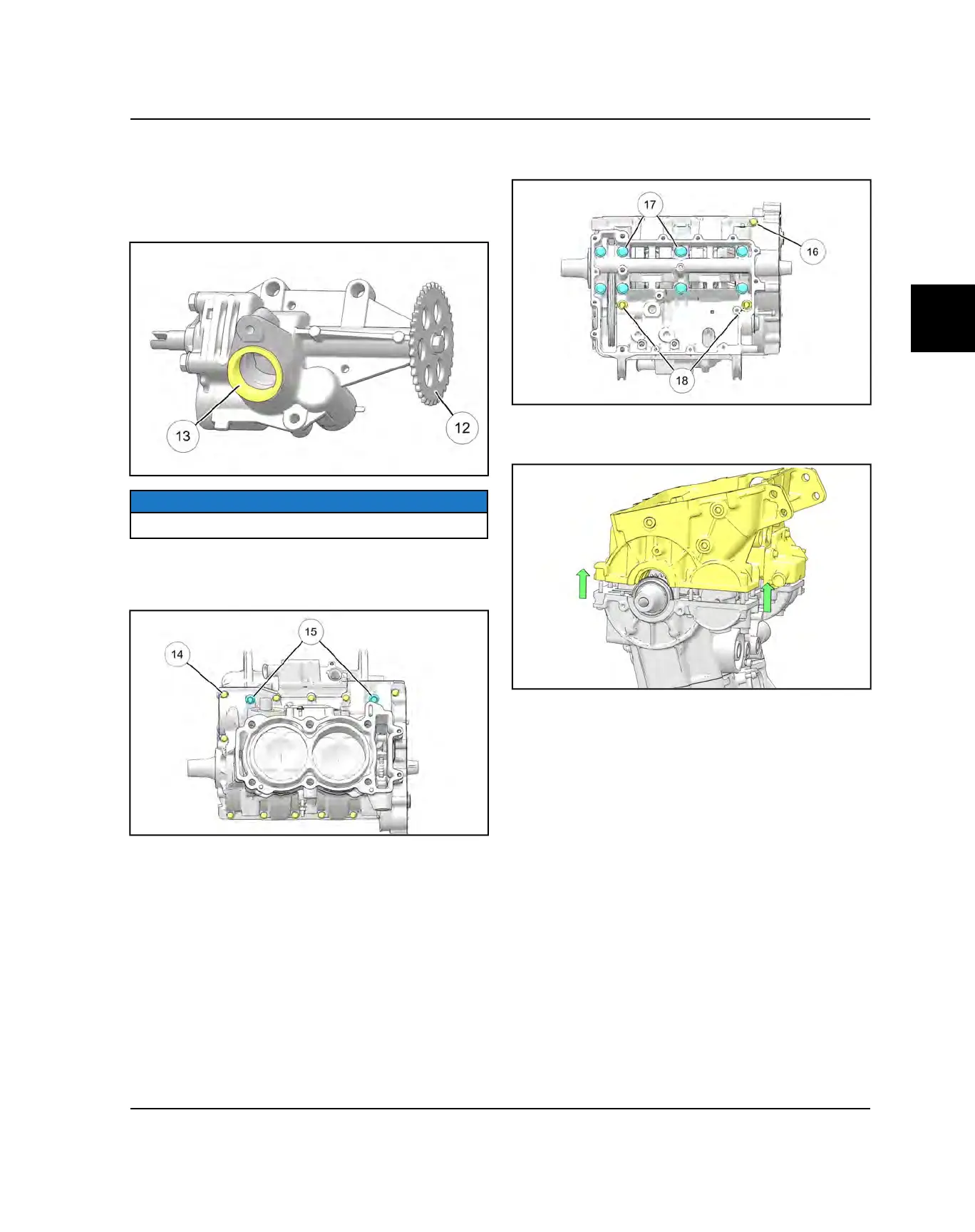

12. Visually inspect the oil pump and drive sprocket

for wear or damage. Replace oil pump drive chain

and sprocket if worn or damaged. If any part of the oil

pump is damaged, the entire assembly must be

replaced. Replace the oil pump seal

during

crankcase assembly.

NOTICE

Oil pump assembly is non-serviceable

13. Rotate the engine so the cylinder is facing up.

14. Remove the eleven M6

and two M8

upper

crankcase bolts.

15. Rotate the engine so the cylinder is facing down.

16. Remove the eight M10

, two M8

and one M6

lower crankcase bolts. Discard the eight M10 bolts.

17. Tap on the lower crankcase in reinforced areas with

a soft faced hammer to loosen. Carefully lift up and

remove the lower crankcase half.
