3.34
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

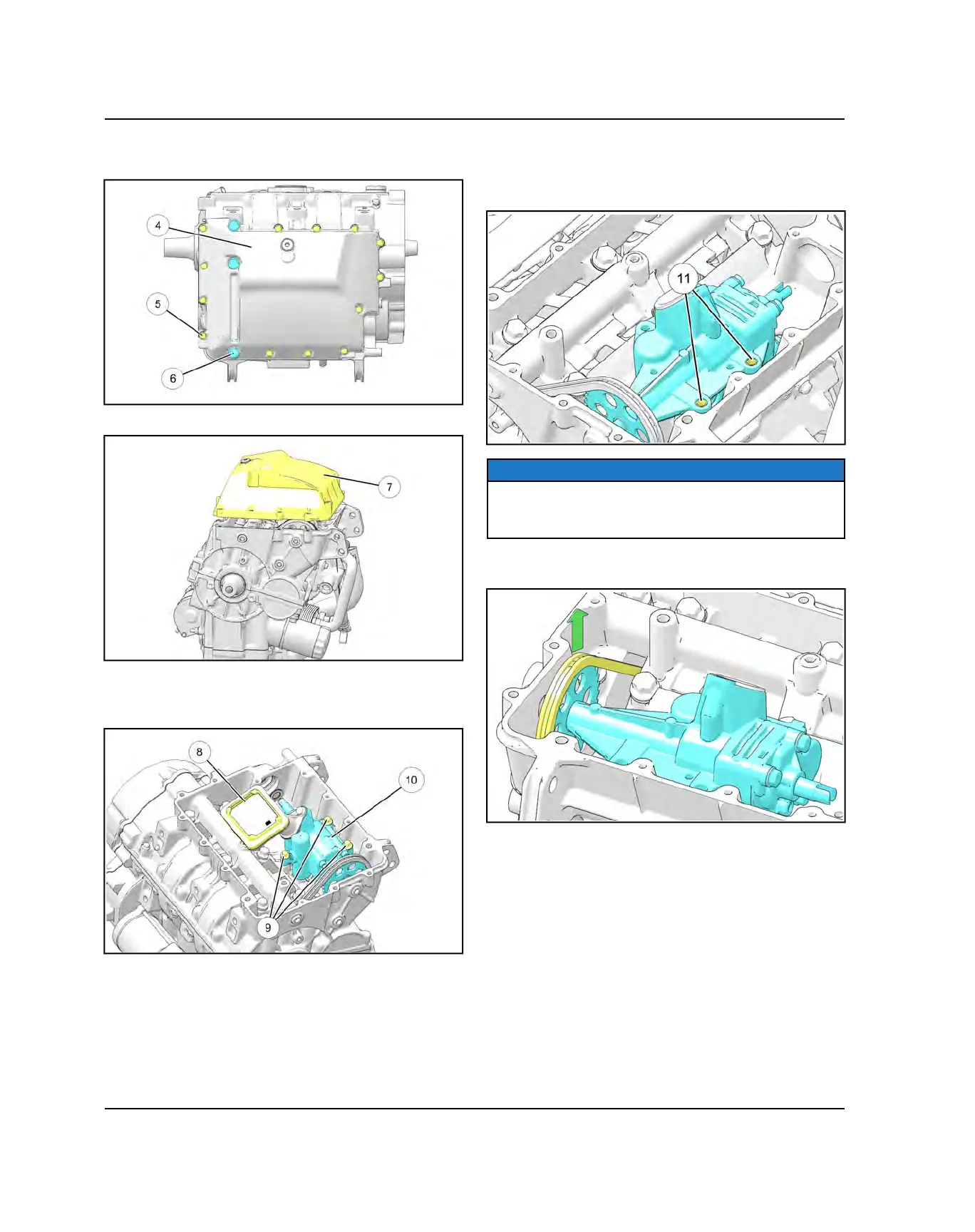

6. Remove the thirteen M6
t
and three M8 bolts
y
retaining the sump cover
r
to the crankcase.
7. Remove the sump cover
u
from the crankcase.
8. Remove and clean oil pump pick-up
i
.
9. Remove the three bolts
o
that retain the oil pump
a
to the crankcase.
10. Use one of the oil pump retaining bolts or a pen
magnet to extract the dowel pins
s
from the oil
pump. Doing so allows for oil pump removal without
having to remove the pump drive sprocket.
NOTICE
If unable to extract the dowel pins from the oil pump,
the oil pump sprocket must be removed. Access the
sprocket bolt by removing the case plug.
11. Lift the oil pump drive chain and remove the oil
pump.
ENGINE / COOLING SYSTEM
