3.56
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

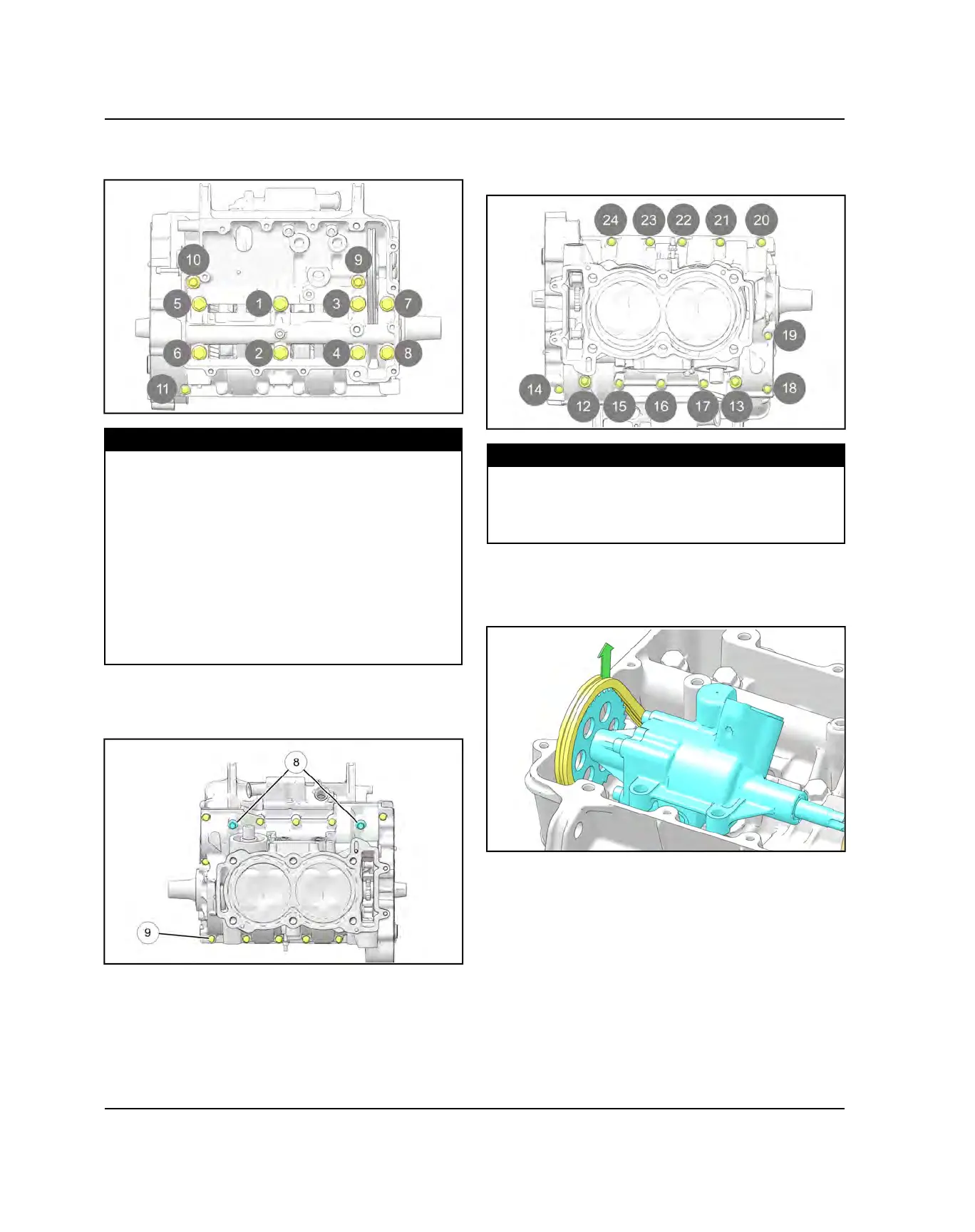

10. Torque lower crankcase bolts in sequence to
specification. Repeat sequence to verify final torque.
TORQUE
Lower Crankcase Bolts:
M10 Bolts:
Step 1: 9 ft-lbs (12 N·m)
Step 2: 21 ft-lbs (28 N·m)
Step 3: Tighten add’n 90°
M8 Bolts:
26 ft-lbs (35 N·m)
M6 Bolts:
9 ft-lbs (12 N·m)
11. Rotate the engine so the cylinder is facing up.
12. Install the eleven M6
o
and two M8
i
upper
crankcase bolts. Tighten all bolts lightly by hand.
13. Torque the upper crankcase bolts in sequence to
specification (start with #12). Repeat the sequence
to verify final torque.
TORQUE
Upper Crankcase Bolts:
M8 Bolts: 26 ft-lbs (35 N·m)
M6 Bolts: 9 ft-lbs (12 N·m)
14. Rotate the engine so the cylinder is facing down.
15. Install a new seal on the oil pump.
16. Lift the oil pump drive chain and install the oil pump.
ENGINE / COOLING SYSTEM
