7.35

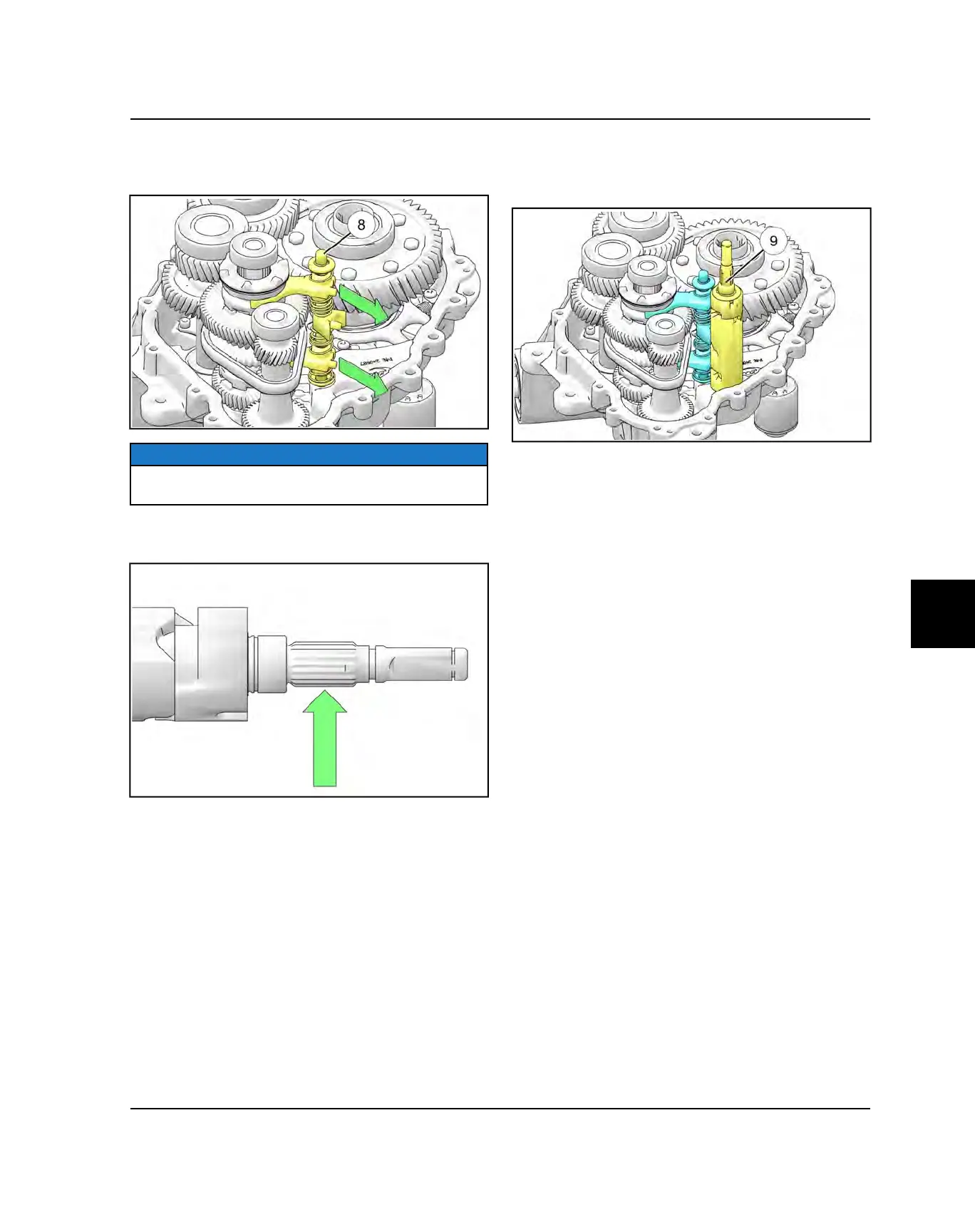

9. Install the shift shaft rail
i
and shift forks into the
transmission housing as an assembly. Be sure the
shift forks are engaged into the engagement dogs.
NOTICE
Shift fork pins should be offset towards the input shaft
as shown above.
10.Inspect the shift drum for any damage or wear.
Inspect the splines of the shift drum.
11. Install the shift drum
o
into the transmission housing.
Lift up on the shift shaft rail and move the rail
assembly towards the shift drum to allow the shift fork
ends to be installed into the shift drum.
TRANSMISSION
To Next Page
