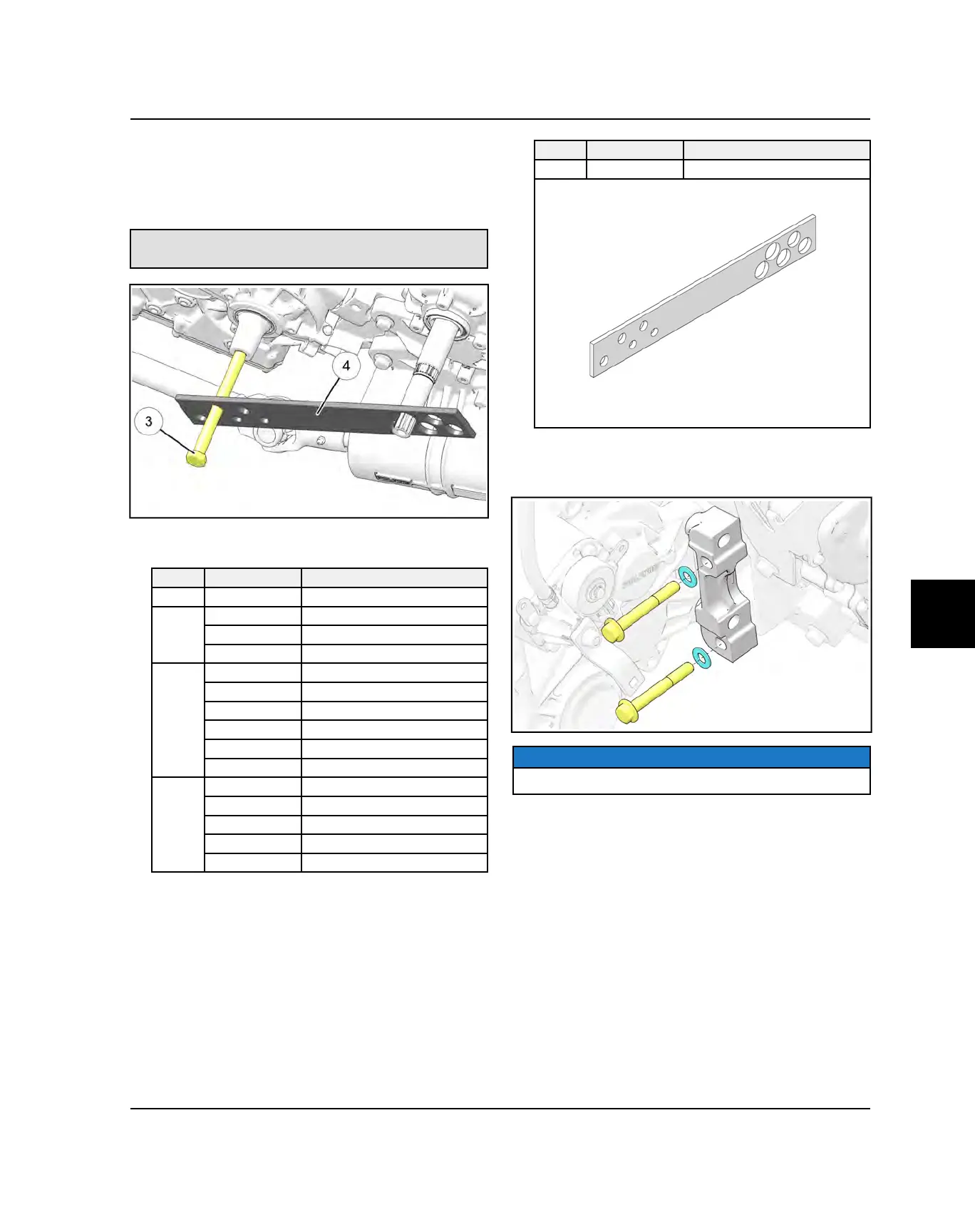

4. Install the Clutch Center Distance Tool onto
transmission input shaft and install the drive clutch
bolt
e
to properly position the clutch center distance.
The pictures below show the tool properly installed
r
.
Clutch Center Distance Tool:
PU-50658-A
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013
RANGER 900
3
2014-16 ACE
2015-19
ACE 570
2015-16 RGR ETX
2013–19 RZR 570
2014–19
RANGER 500/570
2015-19 RANGER 570 Full-Size
4
2014-19
RANGER 900/1000
2015-19 RZR 900
2016-19 RZR 1000
2016–19 ACE 900
2016–19
GENERAL
HOLE
YEAR
VEHICLE DESCRIPTION
5 2015-18
RANGER Diesel
i.e. 2015 RZR 900 uses the holes marked with a 4
5. Loosely install the two bolts retaining the
transmission coupler bracket to the engine on the
right side.
NOTICE
DO NOT torque fasteners at this time.
TRANSMISSION
