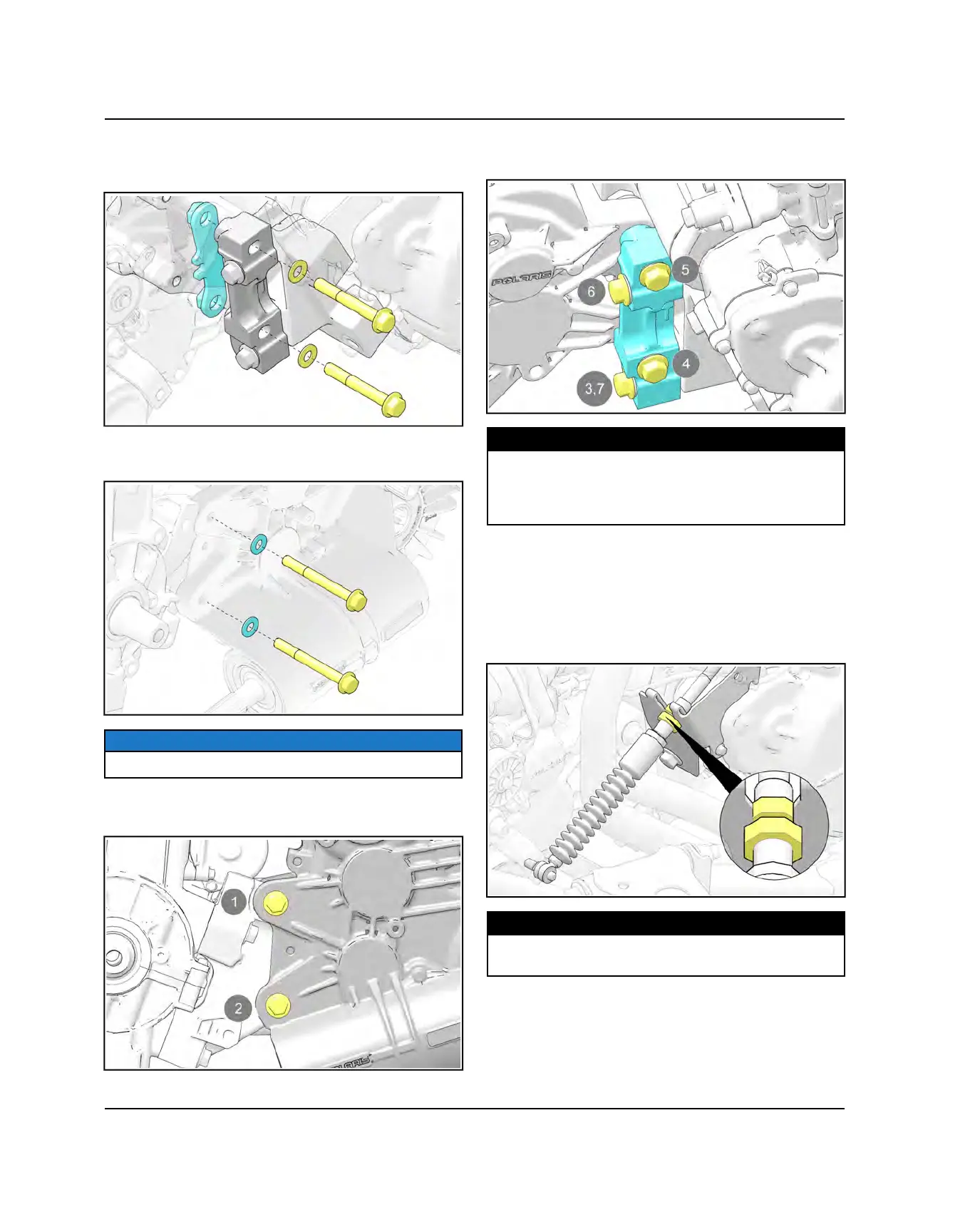

6. Install the two bolts and transmission joint retainer
plate on the right side. Hand tighten the bolts so they
remain loose at this time.
7. Loosely install the two longer bolts into left side
mounting holes.
NOTICE
DO NOT torque fasteners at this time.
8. Torque left side mounting bolts to specification using
the numbered sequence shown.
9. Torque right side mounting bolts to specification
using the numbered sequence shown.
TORQUE
Engine / Transmission Mounting Bolts:
Step 1-2: 64 lb-ft (87 Nm)
Step 3: 5 lb-ft (7 Nm)
Step 4-7: 44 lb-ft (60 Nm)
10.Remove the clutch center distance tool.
11. Remove the spacer or support between the vehicle
frame and engine.
12.Install the shift cable assembly onto the shift cable
the bracket. Tighten the lower jam nut until the line
meets with the upper shift cable jam nut
TORQUE
Shift Cable Jam Nut:
13 lb-ft (18 Nm)
