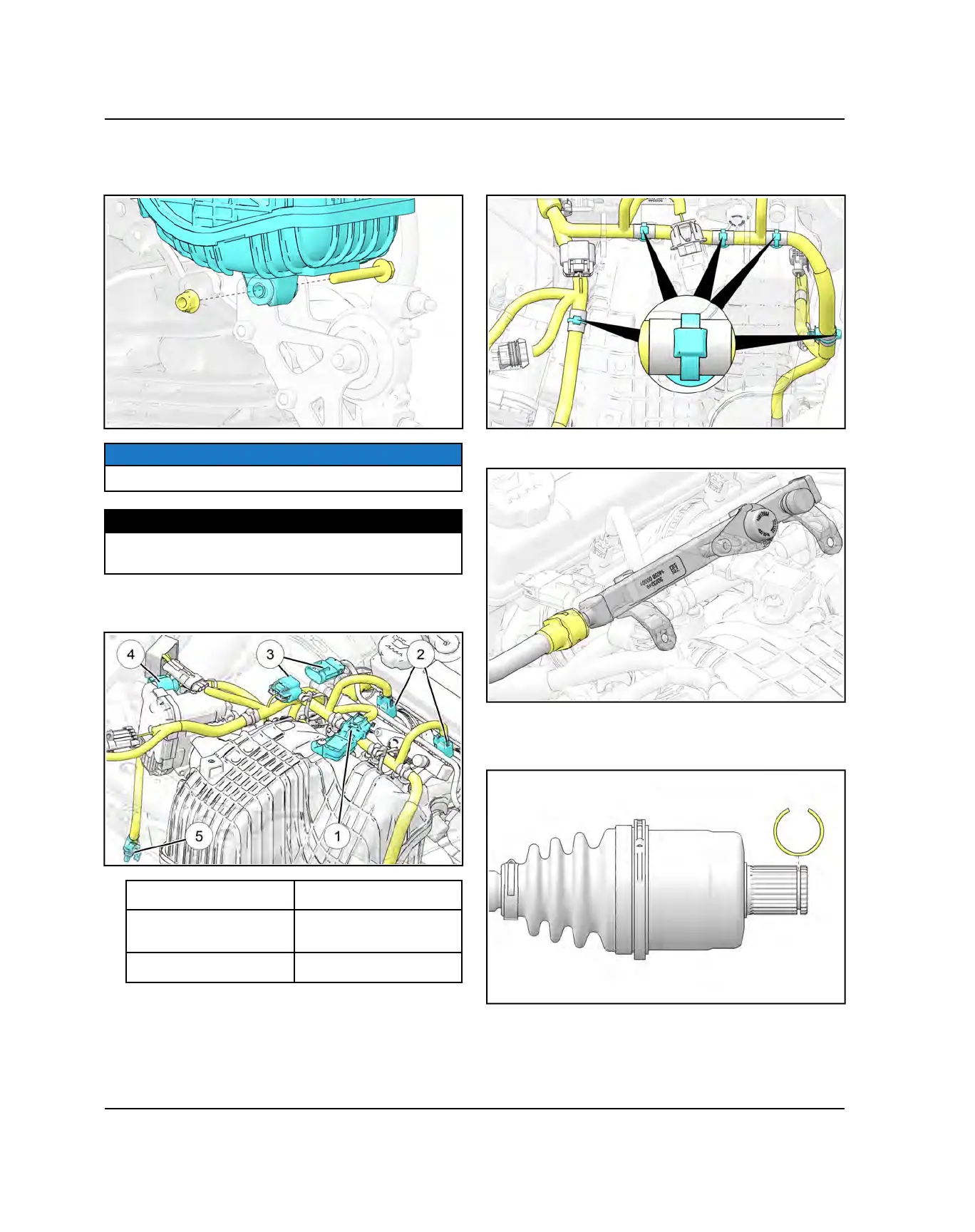

18.Install lower intake plenum mounting fastener (to
trans mount bracket). Torque fastener to
specification.
NOTICE
Components hidden for image clarity.
TORQUE
Lower Intake Plenum Fastener:
22 lb-ft (30 Nm)
19. Connect the T-MAP sensor, fuel injectors, oxygen
sensor, ETC, and rear differential solenoid.
q
T-Map Sensor
r
ETC
w
Fuel Injectors
t
Rear Differential
Solenoid
e
Oxygen Sensor
20.Ensure harness is properly routed and install the five
plastic tie straps retaining the harness to the intake
plenum.
21.Connect the fuel supply at the fuel rail.
22.Install new spring ring on rear drive shafts. Apply an
anti-seize compound to the splines. Install rear drive
shafts into transmission.
TRANSMISSION
To Next Page
