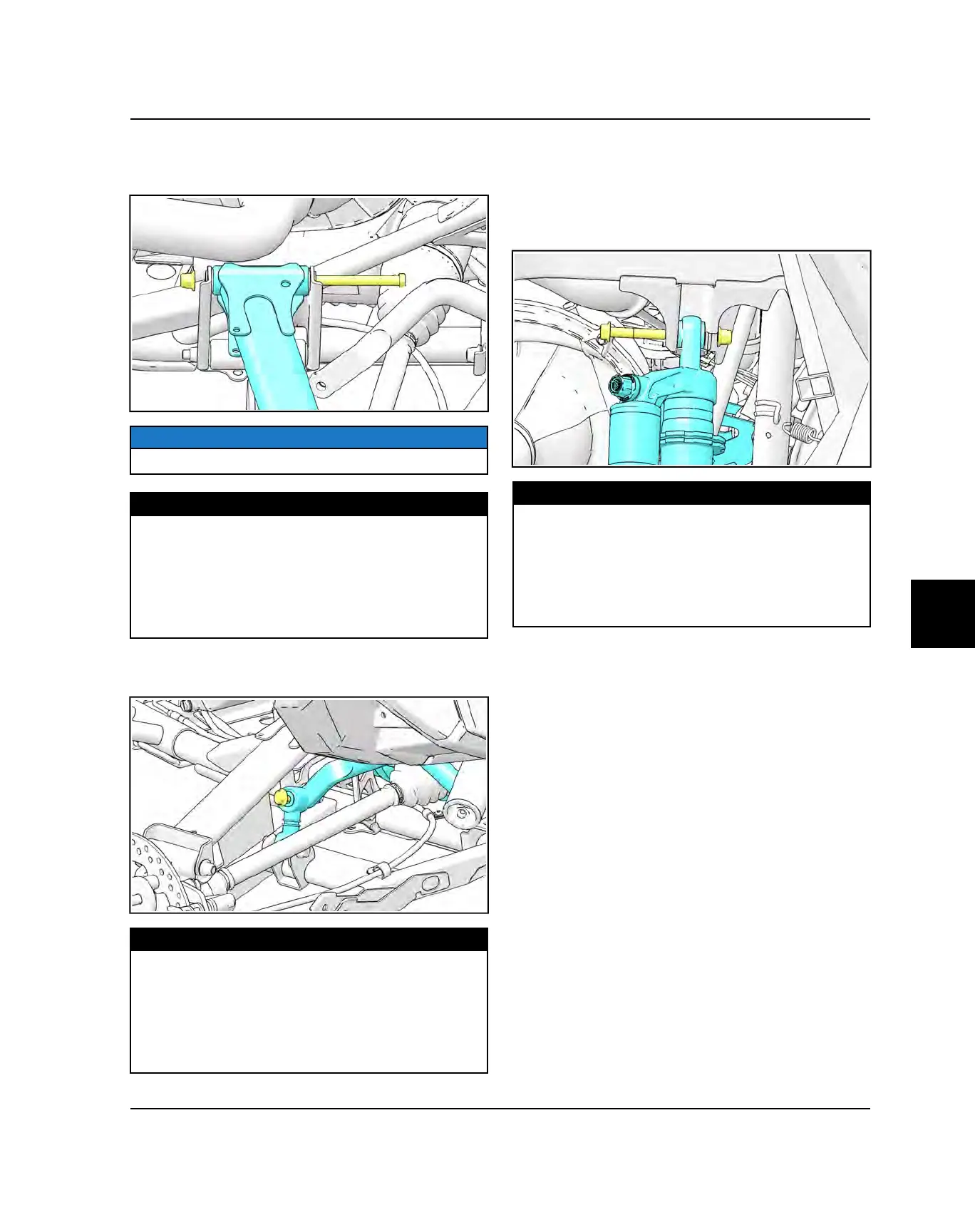

23.Rotate RH and LH rear upper control arms into
position and install NEW mounting fasteners. Torque
fasteners to specification.
NOTICE
Image for reference only.
TORQUE
GENERAL / GENERAL 4
Control Arm Fasteners:
40 lb-ft (54 Nm) + 90°
GENERAL XP / GENERAL XP 4
Control Arm Fasteners:
81 lb-ft (110 Nm)
24.Install NEW stabilizer mounting fasteners and torque
nut to specification.
TORQUE
GENERAL / GENERAL 4
Rear Stabilizer Bar Mounting Nuts:
44 lb-ft (60 Nm)
GENERAL XP / GENERAL XP 4
Rear Stabilizer Bar Mounting Nuts:
51 lb-ft (70 Nm)
25.Install inner clutch cover, outlet duct, drive clutch,
driven clutch, belt and outer clutch cover. Refer to
“PVT Assembly” page 6.9 procedure.
26.Rotate RH/LH rear shocks into position and install
NEW upper fasteners. Torque fasteners to
specification.
TORQUE
GENERAL / GENERAL 4
Shock Mount Fasteners:
20 lb-ft (27 Nm) + 90°
GENERAL XP / GENERAL XP 4
Shock Mount Fasteners:
51 lb-ft (70 Nm)
27.Lubricate the transmission splines and mid propshaft
joint splines with Polaris All Purpose Grease. Install
the propshaft onto the transmission output shaft.
Refer to the applicable procedure.
• 2-Seat Propshaft Installation page 8.16
• 4-Seat Propshaft Installation page 8.18
28.Properly lower the vehicle.
29.Lower the cargo box and secure in position.
30.Connect the negative (-) battery cable to the battery
and install the driver seat.
31.If lubricant was drained, fill the transmission with the
specified amount. Refer to “Service Specifications -
Transmission” page 7.2.
