10
9850067
R01
-
2020-2021
GENERAL
/
GENERAL
XP
Service
Manual
©
Copyright
Polaris
Inc.

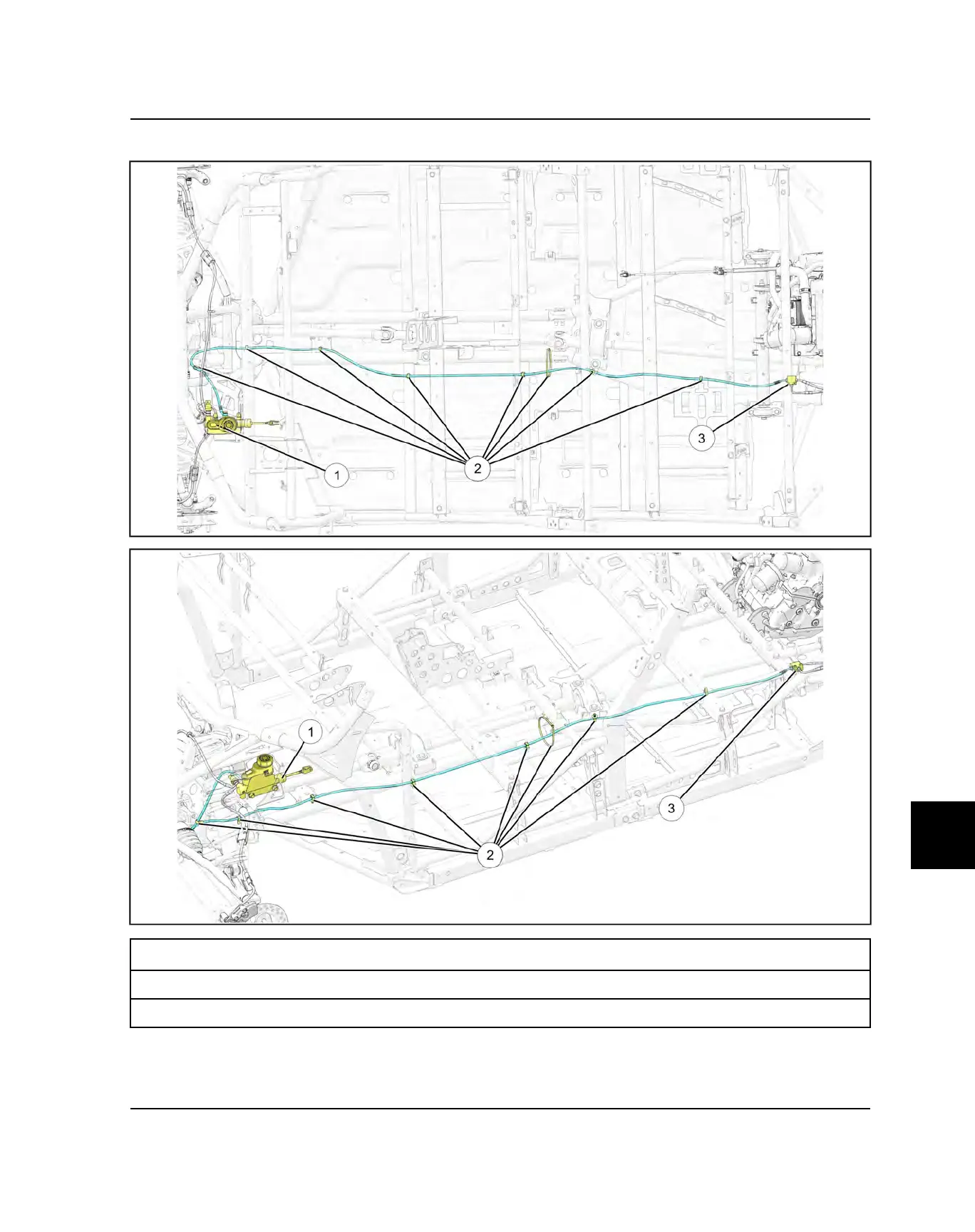

10.17
MASTER
CYLINDER
TO
JUNCTION
BLOCK
q
Master
Cylinder
w
Brake
Line
Retention
Points
e
Junction
Block
BRAKE
SYSTEM
550
552
Table of Contents
Chapter 1 1 General Information
7
Table of Contents
7
Model Number Designation
9
Vehicle Identification
9
Vehicle Identification Number (Vin) Designation
9
Vehicle and Engine Serial Number Location
10
Reference Information
11
Service Rules
11
Publication Part Numbers
12
Replacement Keys
13
Special Tools Website
14
Special Tools Index
15
Vehicle Specifications (Model Year 2021)
19
Model Specifications - 2 Seat
19
Model Specifications - 4 Seat
24
Model Specifications - Intl
28
Misc Specifications and Charts
32
Master Torque Table
32
Conversion Table
39
Sae Tap / Drill Sizes
40
Metric Tap / Drill Sizes
40
Decimal Equivalents
41
General Diagnostics
42
General Diagnostics Information Overview
42
Guided Symptom Diagnostic
42
Guided Symptom References
43
Engine and Drivability Diagnostic Procedures
44
Engine Cranks but Does Not Start
47
No Crank no Start or Slow Crank
49
Over Heating
50
Warning Lights
51
Engine Troubleshooting
52
Cooling Troubleshooting
54
Digital Wrench® Software Overview
55
Guided Diagnostics
55
Special Tools
55
Digital Wrench® Software Installation and Updates
56
Digital Wrench® - Diagnostic Connector
57
Digital Wrench® Communication Errors
57
Digital Wrench® Serial Number Location
58
Digital Wrench® Feature Map
59
Engine Controller Reprogramming (Reflash)
61
Polaris Mobile Digital Wrench® (Pmdw)
61
Diagnostic Trouble Codes Overview
63
Cylinder Misfire Detection
75
Fluid Inspection
76
Fuel System Troubleshooting
77
Pvt System Troubleshooting
79
Pvt System Overheating / Diagnosis
81
Hard Shifting
82
Transmission Isolation
82
All Wheel Drive (Awd) Concerns
83
Driveshaft (Half Shaft) Diagnostics
83
Brake Noise Troubleshooting
84
Brake Vibration
84
Caliper Overheats (Brakes Drag)
85
Poor Brake Performance
85
Brakes Lock
85
Eps Troubleshooting (Power Steering Non-Functional with Mil
86
Eps Troubleshooting (Power Steering Non-Functional with Mil Off)
87
Eps Troubleshooting (Using Digital Wrench®)
88
Shock Analysis
89
Electrical Service Notes
90
Digital Multi-Meter (DMM) Notes
90
Static and Dynamic Testing
90
Connector Probing Guidelines
91
Testing Continuity / Resistance
92
Testing for a Short to Ground
92
Testing for a Short to Voltage
93
Testing for Intermittent Conditions
94
Testing Current Flow (Amperage)
94
Current Draw - Key off
95
Testing Voltage Drop
95
Fluid Leaks
76
Maintenance Chapter 2 Maintenance 2
97
Chapter 2
99
General Information - Maintenance
99
Maintenance
99
Service Notes - Maintenance
99
Special Tools - Maintenance
99
Service Specifications - Maintenance
100
Periodic Maintenance
102
Periodic Maintenance Overview
102
Break-In Period
102
Pre-Ride Inspection
103
Maintenance Interval Chart
104
Maintenance Quick Reference
117
Grease Lubrication Points
119
Maintenance Lubricants
120
General Vehicle Inspection and Maintenance
121
Pre-Ride / Daily Inspection
121
Frame, Nuts, Bolts, and Fasteners
121
Shift Cable Inspection / Adjustment
121
Heat Shield Inspection
122
Engine Maintenance
123
Engine Oil Level
123
Engine Oil and Filter Change
124
Engine Crankcase Breather Hose Inspection
125
Engine Cylinder Leakdown Test
125
Valve Clearance Inspection
125
Cam Chain Tensioner Inspection
127
Cooling System Maintenance
128
Cooling System Overview
128
Coolant Strength
128
Coolant Level Inspection
128
Coolant Drain / Fill
130
Fuel System and Air Intake Maintenance
131
Fuel Pump / Fuel Filters
131
Fuel Tank Vent Line
132
Vent Line Termination Fitting
132
Air Filter Service
133
Intake Duct Drain Inspection
133
Pvt System Maintenance
134
Pvt Drying
134
Transmission and Front Gearcase Maintenance
135
Transmission Lubrication
135
Front Gearcase Lubrication
136
Final Drive Maintenance
137
Maintenance
137
Drive Shaft Boot Inspection
137
Wheel Removal
137
Wheel Installation
137
Tire Inspection
138
Tire Inspection (Intl)
138
Steering Maintenance
139
Steering Inspection
139
Steering Wheel Free-Play
139
Tie Rod End / Wheel Hub Inspection
140
Wheel Toe Alignment Inspection
140
Wheel Toe Adjustment
141
Suspension Maintenance - General / General 4
142
Spring Adjustment
142
Shock Compression Adjustment
143
Spring Adjustment - General 4
143
Spring Adjustment - General Xp 4
145
Shock Compression Adjustment
146
Brake System Maintenance
147
Brake Hose and Fitting Inspection
147
Brake Fluid Inspection
147
Brake Pad / Disc Inspection
147
Electrical Maintenance
150
Battery Maintenance
150
Battery Removal
150
Battery Installation
151
Battery Removal (Intl)
151
Battery Installation (Intl)
152
Engine / Chassis Electrical Ground
152
Spark Plug Service
153
Throttle Pedal Inspection
154
Chapter 3 Engine / Cooling System
155
General Information - Engine
157
Service Notes - Engine / Cooling System
157
Special Tools - Engine / Cooling System
157
Engine Cylinder Leakdown Test
158
Oil Pressure Test
160
Engine Oil Flow Chart
161
Engine Break-In Period
162
Engine Service Specifications
163
Service Specifications - Engine / Cooling System
163
Engine Service
165
Top End Service (Engine in Chassis)
165
Crankshaft Pto Seal Replacement
165
Engine Removal
167
Engine Installation
170
Engine Disassembly / Inspection - Top End
174
Camshaft Sprocket Inspection
175
Engine Disassembly / Inspection - Bottom End
184
Piston-To-Cylinder Clearance
197
Engine Assembly - Bottom End
200
Bearing Selection Identification Letters and Numbers
200
Connecting Rod Bearing Selection
201
Crankshaft Main Bearing Selection
206
Engine Assembly - Top End
214
Camshaft Timing - Quick Reference
220
Valve Lash - Tappet Selection
223
Intake Service
225
Intake Assembly View - General / General
225
Intake Assembly View - General 4 / General
226
Intake Removal
227
Intake Installation
228
Exhaust Service
230
Exhaust System Assembly View
230
Exhaust Removal
231
Exhaust Installation
231
Cooling System Service
233
Cooling System Assembly View
233
Coolant Hose Routing / Retention - 2 Seat
234
Coolant Hose Routing / Retention - 4 Seat
237
Coolant Overflow Line Routing / Retention
240
Cooling System Specifications
241
Cooling System Pressure Cap Test
242
Cooling System Hose Replacement
242
Radiator Replacement
243
Thermostat Replacement
244
Cooling System Bleeding
245
Water Pump Installation
246
Chapter 4 Engine Electrical
251
Ecu Operation Overview
252
Ecu Replacement
252
Ecu Service
252
Electronic Control Unit (Ecu)
252
Adjustable Speed Limiting Device (Asld) - Abs Models
254
Asld Overview - Abs Models
254
Crankshaft Position Sensor (Cps)
255
Cps Operation Overview
255
Cps Test
255
Cps Replacement
256
Electronic Throttle Control (Etc)
257
Etc Operation Overview
257
Etc Test
257
Etc Replacement
257
Etc Learn Procedure
258
Accelerator Position Sensor (Aps)
259
Aps Operation Overview
259
Aps Test
259
Aps Replacement
259
Heated Oxygen Sensor (O2)
260
O2 Operation Overview
260
O2 Test
260
O2 Replacement
260
Temp / Manifold Absolute Pressure Sensor (T-Map)
261
T-Map Operation Overview
261
T-Map Test
261
T-Map Replacement
261
Engine Coolant Temperature (Ect) Sensor
262
Ect Operation Overview
262
Ect Test
262
Ect Replacement
262
Ignition System Service
263
Ignition Coil / Ht Lead Replacement
263
Ignition Coil Tests
263
Spark Plug Service
264
Chapter 5 Fuel System
265
General Information - Fuel System
266
Service Notes - Fuel System
266
Service Specifications - Fuel System
267
Special Tools - Fuel System
267
Assembly Views - Fuel System
268
Fuel System Assembly View
268
Evap Fuel System Assembly View
269
Fuel Pump Assembly View
270
Evap System
271
Evap System Overview
271
Evap Conditions and Symptoms
272
Carbon Canister Filter Replacement
273
Carbon Canister Replacement
273
Purge Valve Replacement
274
Purge Valve Ohm Test
274
Fuel Lines
275
Fuel Line Routing
275
Fuel Line Routing - General 4
277
Fuel Line Routing (Evap Models)
279
Fuel Line Routing - General 4 (Evap Models)
283
Fuel Line Quick Connect Removal
287
Fuel Line Replacement
288
Vent Line Termination Fitting
289
Fuel Injector
290
Fuel Injector Operation Overview
290
Fuel Injector O-Rings
290
Fuel Injector Test
291
Fuel Injector Replacement
291
Fuel Injector Troubleshooting
292
Fuel Tank Service
293
Fuel Tank Removal
293
Fuel Tank Installation
294
Fuel Pump Service
295
Fuel Pump Operation Overview
295
Fuel Pump Test
296
Fuel Pump Replacement
297
Chapter 6 Pvt System
301
General Information - Pvt System
302
Service Notes - Pvt System
302
Special Tools - Pvt System
302
Service Specifications - Pvt System
303
Pvt System Overview
304
Drive Clutch Operation
304
Driven Clutch Operation
304
Pvt Break-In
304
Pvt System Maintenance / Inspection
304
Assembly Views - Pvt System
305
Pvt Covers / Duct Assembly View - General 4
306
Inner Clutch Cover Assembly View
307
Pvt System Service
308
Pvt Disassembly
308
Pvt Assembly
309
Drive Belt Service
311
Drive Belt Removal
311
Drive Belt Inspection
311
Drive Belt Installation
312
Drive Clutch Service
313
Drive Clutch Assembly View
313
Moveable Sheave Bushing Inspection
319
Driven Clutch Service
324
Driven Clutch Assembly View
324
Driven Clutch Alignment Procedure
325
Driven Clutch Disassembly
325
Driven Clutch Assembly
327
Driven Clutch Slider Inspection
329
Chapter 7 Transmission
331
General Information - Transmission
332
Service Notes - Transmission
332
Service Specifications - Transmission
332
Special Tools - Transmission
332
Shift Cable Service
333
Shift Lever / Cable Assembly View - General
333
Shift Cable Routing - General
334
Shift Lever / Cable Assembly View - General 4
336
Shift Cable Routing - General 4
337
Shift Lever Replacement
339
Shift Cable Inspection
339
Shift Cable Adjustment
339
Assembly Views - Transmission
341
Transmission Assembly View
341
Transmission Mounting Torque Values
342
Transmission Vent Line
343
Transmission Vent Line Routing
343
Vent Line Termination Fitting
344
Transmission Service
345
Transmission Removal
345
Differential Operation
349
Transmission Disassembly
351
Gear Cluster Disassembly
355
Snorkel Shaft Removal / Disassembly
355
Bevel Differential Disassembly
357
Bevel Differential Assembly
358
Gear / Shaft / Bearing Inspection
360
Transmission Assembly
363
Transmission Installation
368
Chapter 8 Final Drive
375
General Information - Final Drive
377
Service Notes - Final Drive
377
Service Specifications - Final Drive
377
Special Tools - Final Drive
377
Assembly Views - Final Drive
378
Propshaft Assembly View - 2 Seat
378
Propshaft Assembly View - 4 Seat
379
Drive Shaft Assembly View
380
Drive Shaft Assembly View (Intl Abs Models)
381
Front Gearcase Assembly View
383
Gearcase Vent Line
384
Propshaft Service
385
Propshaft Removal - 2 Seat
385
Propshaft Removal - 4 Seat
386
U-Joint Disassembly
388
U-Joint Assembly
389
Propshaft Installation - 2 Seat
390
Propshaft Installation - 4 Seat
392
Front Drive Shaft Removal
394
Front Drive Shaft Installation
395
Rear Drive Shaft Removal
396
Rear Drive Shaft Installation
397
Drive Shaft / CV Joint Handling Tips
399
Outer CV Joint / Boot Replacement
400
Inner Plunging Joint / Boot Replacement
402
Front Drive Shaft Removal
405
Front Drive Shaft Installation
406
Rear Drive Shaft Removal
408
Rear Drive Shaft Installation
409
Drive Shaft / CV Joint Handling Tips
410
Outer CV Joint / Boot Replacement
411
Inner Plunging Joint / Boot Replacement
413
Front Bearing Carrier Removal / Inspection
416
Front Bearing Replacement
417
Front Bearing Carrier Installation
418
Rear Bearing Carrier Removal / Inspection
420
Rear Bearing Replacement
421
Rear Bearing Carrier Installation
422
Front Bearing Carrier Removal / Inspection
423
Front Bearing Replacement
424
Front Bearing Carrier Installation
425
Rear Bearing Carrier Removal / Inspection
426
Rear Bearing Replacement
427
Rear Bearing Carrier Installation
428
All-Wheel Drive Operation
429
Front Gearcase Service
429
Front Gearcase Removal
430
Front Gearcase Disassembly / Inspection
432
Front Gearcase Assembly
435
Front Gearcase Installation
437
Front Hub Assembly View
440
Rear Hub Assembly View
441
Front Hub Assembly View
442
Rear Hub Assembly View
443
Chapter 9 Steering / Suspension
445
General Information - Steering / Suspension
447
Service Notes - Steering / Suspension
447
Service Specifications - Steering
447
Special Tools - Steering / Suspension
447
Steering Assembly View
448
Front Suspension Assembly View
456
Front Stabilizer Bar Assembly View
458
Rear Stabilizer Bar Assembly View
461
Steering Assembly Service
462
Steering Shaft Removal - Upper
462
Steering Wheel Removal
463
Power Steering Unit Removal
463
Steering Shaft Removal - Lower
464
Steering Shaft Bearing Replacement
465
Steering Shaft Installation - Lower
465
Power Steering Unit Installation
466
Steering Shaft Installation - Upper
467
Tie Rod End / Wheel Hub Inspection
469
Steering Rack Removal
469
Steering Rack Installation
470
Wheel Toe Alignment Inspection
471
Wheel Toe Adjustment
472
Steering Wheel Free-Play
472
Front Control Arm Removal
473
Front Control Arm Installation
474
Front Stabilizer Bar Removal
477
Front Stabilizer Bar Installation
477
Rear Control Arm Removal
478
Rear Control Arm Installation
479
Rear Stabilizer Bar Removal
482
Rear Stabilizer Bar Installation
482
Front Control Arm Installation
486
Front Stabilizer Bar Removal
488
Front Stabilizer Bar Installation
489
Rear Control Arm Removal
489
Rear Control Arm Installation
491
Rear Stabilizer Bar Installation
494
Rear Stabilizer Bar Removal
494
Ball Joint Installation
496
Ball Joint Preparation
496
Ball Joint Service
496
Shock Specifications - General 4
499
Shock Removal
501
Spring Replacement
501
Spring Adjustment
502
Spring Adjustment - General 4
503
Shock Compression Adjustment
504
Shock Installation
504
Shock Disassembly (Fox)
505
Shock Assembly (Fox)
513
Shock Specifications - General Xp 4
525
Shock Removal
527
Spring Replacement
527
Spring Adjustment - General Xp
528
Shock Compression Adjustment
530
Shock Installation
530
Shock Disassembly (Walker Evans)
531
Shock Assembly (Walker Evans)
532
Chapter 10 Brake System
535
General Information - Brake System
537
Service Notes - Brake System
537
Special Tools - Brake System
537
Service Specifications - Brake System (General / General 4)
538
Service Specifications - Brake System (Intl)
540
Brake System Service
541
Brake Bleeding / Fluid Change
541
Brake Burnishing Procedure
542
Assembly Views - Brake System (General / General 4)
543
Brake System Assembly View - General 4
548
Brake Line Routing - General 4
550
Brake Caliper Assembly View - General / General 4
553
Brake Line Fitting Orientation - General / General 4
555
Assembly Views - Brake System (General Xp / General Xp 4)
557
Brake System Assembly View - General Xp 4
568
Brake Line Routing - General Xp 4
570
Brake Caliper Assembly View - General Xp 4
577
Brake Line Fitting Orientation - General Xp / General Xp 4
579
Master Cylinder Service
581
Master Cylinder Removal
581
Master Cylinder Installation
581
Brake Pedal Service
582
Brake Pedal Removal
582
Brake Pedal Installation
582
Front Pad Service
583
Front Brake Pad Removal
583
Brake Pad Inspection
584
Brake Pad Inspection (Intl)
584
Front Brake Pad Installation
584
Front Caliper Removal
586
Front Caliper Disassembly
586
Front Caliper Inspection
588
Front Caliper Assembly
588
Front Caliper Installation
589
Front Caliper Removal
590
Front Caliper Disassembly / Inspection
590
Front Caliper Assembly
592
Front Caliper Installation
592
Rear Pad Service
593
Rear Brake Pad Removal
593
Brake Pad Inspection
594
Rear Brake Pad Installation
594
Rear Caliper Removal
598
Rear Caliper Disassembly
598
Rear Caliper Service - General Xp
598
Rear Caliper Inspection
599
Rear Caliper Assembly
600
Rear Caliper Installation
600
Disc Service
602
Brake Disc Runout
602
Brake Disc Inspection
602
Brake Disc Replacement
604
International (Intl) Brake Service
605
Antilock Braking System (Abs) Overview (Intl)
605
Brake System Assembly View (Intl Abs)
606
Brake Line Routing and Retention (Intl Abs)
607
Brake Line Fitting Orientation - Abs
611
Brake Line Routing and Retention Non-Abs (Intl)
614
Brake Pedal Removal (Intl)
617
Brake Pedal Installation (Intl)
617
Brake Pressure Switch Replacement (Intl)
618
Tone Ring Inspection (Intl Abs)
619
Tone Ring Replacement (Intl Abs)
619
Wheel Speed Sensor Replacement (Intl Abs)
619
Wheel Speed Sensor Air Gap Adjustment (Intl Abs)
620
Abs Hecu Removal (Intl Abs)
621
Abs Hecu Installation (Intl Abs)
622
Abs Troubleshooting (Intl Abs)
623
Parking Brake (Intl)
624
Parking Brake Assembly View
624
Chapter 11 Body / Frame
629
Decal Replacement
631
General Information - Body / Frame
631
Service Notes - Body / Frame
631
Special Tools - Body / Frame
631
Assembly Views - Body / Frame
632
Front Facia Assembly View
632
Hood & Front Fender Assembly View - General / General 4
633
Hood & Front Fender Assembly View - General Xp / General Xp 4
634
Dash Assembly View
635
Floor & Rocker Assembly View - General
636
Floor & Rocker Assembly View - General Xp
637
Center Console Assembly View - General / General Xp
638
Closeoff & Rear Fender Assembly View - General
639
Closeoff & Rear Fender Assembly View - General Xp
640
Front Closeoff & Floor Assembly View - General 4 / General Xp 4
641
Center Console Assembly View - General 4 / General Xp 4
642
Rear Closeoff, Fenders, & Floor Assembly View - General 4
644
Rear Closeoff, Fenders, & Floor Assembly View - General Xp 4
645
Seat Assembly View - General
646
Seat Assembly View - General 4
648
Cargo Box Assembly View - General
650
Cargo Box Assembly View - General Xp
654
Door Assembly View - Front
658
Door Assembly View - Rear
662
Rops Assembly View - General
666
Frame Assembly View - General
668
Frame Assembly View - General 4
671
Frame Assembly View - General Xp
674
Body Component Removal
678
Door Removal
678
Door Removal - General 4
678
Seat Removal
679
Hood Removal
679
Exterior Body Component Removal
679
Exterior Body Component Removal - General
681
Interior Body Component Removal
684
Interior Body Component Removal - General
686
Cargo Box Removal
690
Body / Frame
691
Body Component Installation
691
Cargo Box Installation
691
Interior Body Component Installation
691
Interior Body Component Installation - General
694
Exterior Body Component Installation
699
Exterior Body Component Installation - General
701
Hood Installation
704
Seat Installation
704
Door Installation
705
Door Installation - General 4
706
Door Cable Adjustment
709
Frame Component Installation
714
Rops Installation
714
Rops Removal
714
Rops Removal - General 4
715
Rops Installation - General 4
716
Skid Plate Replacement
718
Skid Plate Replacement - General
718
Chapter 12 Chassis / Body Electrical
719
General Information - Electrical System
722
Service Specifications - Electrical System
723
Special Tools - Electrical System
723
Chassis Harness
724
Harness Component Locations - 2 Seat
724
Harness Routing / Retention - 2 Seat
726
Harness Component Locations - 4 Seat
728
Harness Routing / Retention - 4 Seat
730
Cargo Box Harness Component Locations
732
Cargo Box Harness Routing / Retention
733
Chassis Harness (Intl)
734
Harness Component Locations - Intl (Non-Abs)
734
Harness Routing / Retention - Intl (Non-Abs)
736
Harness Routing / Retention - Intl (Abs)
740
Cargo Box Harness Component Locations - Intl
742
Cargo Box Harness Routing / Retention - Intl
743
Instrument Cluster Service
744
Instrument Cluster Overview
744
Instrument Cluster Replacement
744
Battery Service
746
Battery Specifications
746
Battery Removal
746
Battery Installation
746
Battery Specifications (Intl)
747
Battery Removal (Intl)
747
Battery Installation (Intl)
747
Battery Identification
748
Lead Acid Conventional Battery Activation
749
Lead Acid Conventional Battery Inspection
749
Lead Acid Conventional Battery Charging and Testing
750
Lead Acid Conventional Battery Maintenance
750
Dry Shipped Agm Battery Activation
751
Dry Shipped Agm Battery Charging and Testing
753
Dry Shipped Agm Battery Maintenance
753
Lead Acid Low Maintenance Battery Charging and Testing
754
Lead Acid Low Maintenance Battery Maintenance
754
Agm Low Maintenance Battery Charging
755
Chassis / Body Electrical
755
Agm Battery Charging - Low Charge
755
Agm Battery Charging - Deeply Discharged (below 3 Volts)
756
Agm Low Maintenance Battery Testing
756
Agm Low Maintenance Battery Maintenance
757
Battery Conductance Analyzer
757
Battery Charging Procedure
759
Battery Off-Season Storage
759
Fuse / Relay Service
760
Fuse / Relay Operation Overview
760
Fuse Box Replacement
760
Fuse / Relay Center - 2 Seat
761
Fuse / Relay Center - 4 Seat
764
Fuse / Relay Center - Intl (Non-Abs)
767
Fuse / Relay Center - Intl (Abs)
770
Charging System Service
773
Charging System Break Even Test
773
Charging System Stator (Alternator) Tests
773
Stator (Alternator) Replacement
774
Regulator / Rectifier Operation
774
Current Draw - Key off
775
Charging System Testing
776
Starting System Service
777
Voltage Drop Test
777
Starter Motor Removal
777
Starter Motor Installation
778
Starter Solenoid Service
778
Starting System Troubleshooting
778
Electronic Power Steering (Eps)
779
Eps Operation
779
Lighting System Service
780
Headlight Adjustment
780
Headlight Bulb Replacement
780
Headlight Removal
781
Headlight Installation
781
Tail Light Replacement
782
Interior Led Lights
782
Switch Service
783
Brake Pressure Switch
783
Headlight Switch
784
Ignition / Key Switch
785
Transmission / Gear Position Switch
786
Seat Belt Switch
787
Brake Fluid Level Switch
788
Ignition / Key Switch
788
Hazard Switch (Int'l / Tractor)
789
Horn
790
Turn Lights
790
Turn/Lights/Horn Switch (Int'l/Tractor)
790
Brake Alarm
791
Flasher Module
791
Parking Brake Switch
791
Fog Light Switch
792
Vehicle Speed Sensor (Vss)
793
Vss Operation Overview
793
Vss Test
793
Vss Replacement
793
Misc Electrical Service
794
12V Receptacle
794
Awd Coil
794
Pulse Bar
795
Chassis Ground
795
Diagnostic Plug
795
Factory-Installed Options Chapter 13 Factory-Installed Options 13
797
Factory-Installed Options
799
General Information - Factory-Installed Options
799
Chapter 13
800
Roof Assembly View
800
Roof Service - General
800
Roof Installation
801
Roof Removal
801
Roof Assembly View - General 4
803
Roof Installation - General 4
804
Roof Removal - General 4
804
Rear View Mirror Service
806
Rear View Mirror Assembly View
806
Rear View Mirror Removal
807
Rear View Mirror Installation
807
Side Mirror Service (Intl)
808
Side Mirror Assembly View (Intl)
808
Side Mirror Removal (Intl)
809
Side Mirror Installation (Intl)
809
Light Bar Service
810
Light Bar Assembly View
810
Light Bar Removal
811
Light Bar Installation
812
Light Bar Switch
812
Front Bumper Service
814
Front Bumper Assembly View
814
Front Bumper Removal
815
Front Bumper Installation
816
Winch Service
817
Winch Assembly View
817
Winch Cable Routing / Retention
818
Winch Replacement
819
Winch Switch
821
Rockford Fosgate Stage 1 (Base) Audio
822
Base Audio Assembly View
822
Audio Harness Routing
823
Front Speaker Assembly Service
824
Front Speaker Service
825
Base Audio Display Pinout
827
Ride Command with Rockford Fosgate Stage 4 Audio
828
Rockford Fosgate Audio Assembly View
828
Ride Command Assembly View
830
Rockford Fosgate & Ride Command Harness Routing
833
Ride Command Overview
836
Ride Command Display Removal / Installation
836
Ride Command Display Pinout
837
Front Speaker Assembly Service
841
Front Speaker Service
842
Subwoofer Service
844
Subwoofer Pinout
848
Amplifier Service
849
Amplifier Pinout
850
Rear Speaker Assembly Service
850
Rear Speaker Service
852
Front Camera Service
854
Rear Camera Service
856
Ambient Air Temperature Sensor Service
858
Gps Antenna Service
859
Vehicle-To-Vehicle (V2V) Antenna Service (2-Seat)
861
Vehicle-To-Vehicle (V2V) Antenna Service (4-Seat)
863
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Polaris General XP 2021 and is the answer not in the manual?
Ask a question
Polaris General XP 2021 Specifications
General
Brand
Polaris
Model
General XP 2021
Category
Offroad Vehicle
Language
English
Related product manuals
Polaris General XP 1000 2024
136 pages
Polaris RZR PRO XP 2021
598 pages
Polaris RZR PRO XP 4 2021
598 pages
Polaris General 2020
877 pages
Polaris General 1000 2023
150 pages
Polaris RZR XP
564 pages
Polaris RZR XP 1000
193 pages
Polaris Ranger 900 XP
88 pages
Polaris RZR PRO XP 2020
598 pages
Polaris RZR XP 1000 2016
152 pages
Polaris Sportsman 550 XP
141 pages
Polaris RANGER XP 900 2013
447 pages
Need help?
General
To Next Page
