Renesas H8 Series Hardware Manual

Appendix I Specifications of Chip Tray
Rev. 7.00 Mar 10, 2005 page 650 of 652
REJ09B0042-0700
Appendix I Specifications of Chip Tray
The specifications of the chip tray for the HCD64338024, HCD64338023, HCD64338022,
HCD64338021, and HCD64338020 are shown in figure I.1. The specifications of the chip tray for
the HCD64F38024 and HCD64F38024R are shown in figure I.2. The specifications of the chip
tray for the HCD64338024S, HCD64338023S, HCD64338022S, HCD64338021S, and
HCD64338020S are shown in figure I.3.
Chip direction
Chip
Type name
Chip tray name
DAINIPPON-INK-&-CHEMICALS-INC.
Type: CT015
Carved code: TCT45-060P
X-X' cross section
Unit: mm
0.6 ± 0.1
6.2 ± 0.16.9 ± 0.154.0 ± 0.1
6.2 ± 0.1 6.9 ± 0.1
XX'
3.99
3.99
51
51
4.5 ± 0.05
4.5 ± 0.05
1.8 ± 0.1

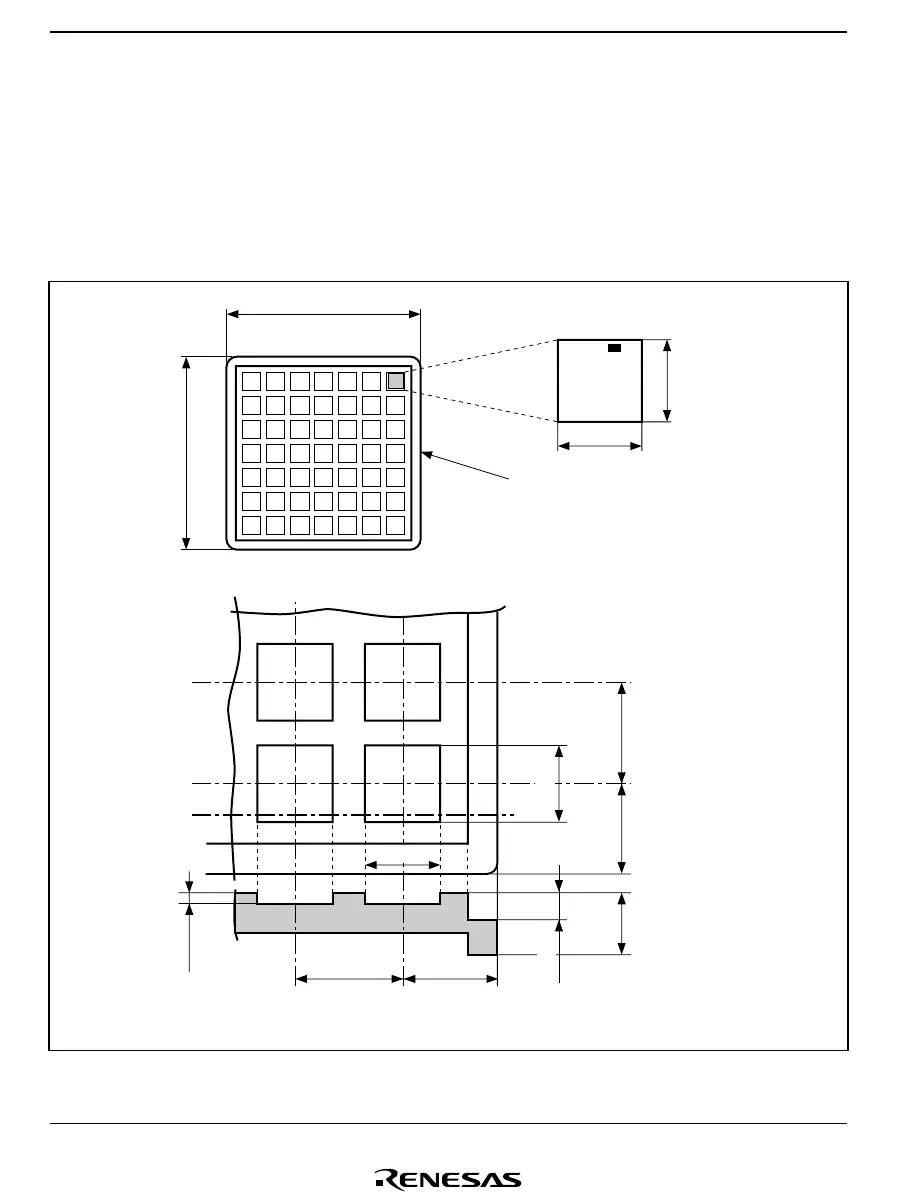

Figure I.1 Specifications of Chip Tray for the HCD64338024, HCD64338023,
HCD64338022, HCD64338021, and HCD64338020
