ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-121
DKC 11.3-***-7-FW – Analog Interface
See page 4-40" "ECODRIVE03 DKC**.040, DKC**.100, DKC**.200
Electrical connections - independent of the drive controller type".
DKC 21.3-***-7-FW – Parallel Interface 2

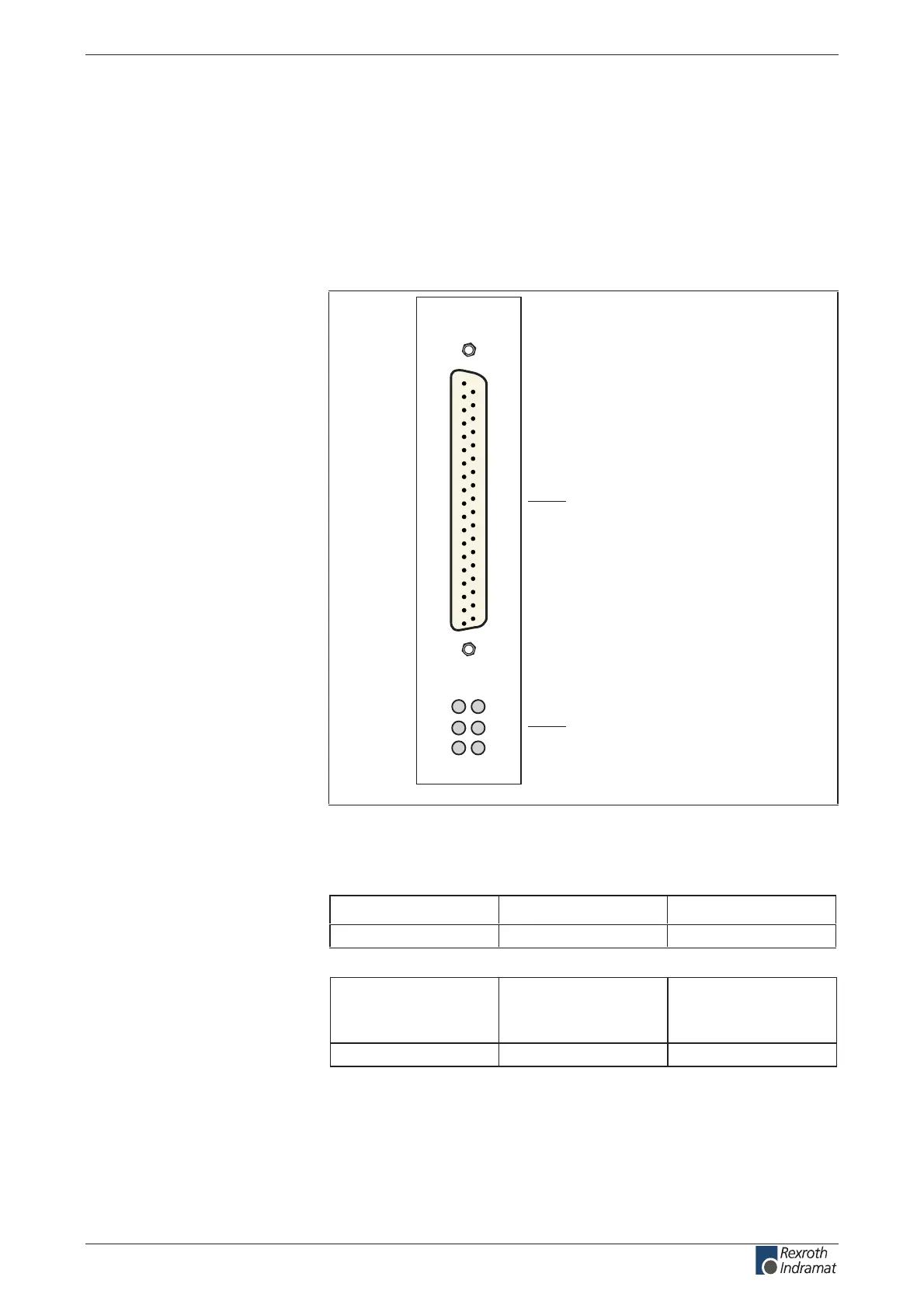

View of command communications interface
FA5061F1.FH7
X210
H215
H213
H211
H214
H212
H210
37
19
20
1
Diagnostic display
X210:
Parallel-Interface 2
(male,37 pins)
Fig. 4-210: View of command communications interface
Technical description of connector
Type No. of pins Design
D-SUB 37 pins on the unit
Fig. 4-211: Design
Cross sections
single wire
[mm ²]
Cross sections
multi core wire
[mm ²]
Cross sections
in AWG
gauge No.:
-- 0.08-0.5 --
Fig. 4-212: Connection cross sections
Design:
Connection cross section:
