610-3.**CKD 30EVIRDOCEsrellortnoC evirD 30EVIRDOCE 5-39
Voltage connection for brakes
Note: The motor holding brake is not supplied by the controller.
Given one voltage source for brake and control voltage, use
parallel leads from the voltage source. Note the voltage range
for the motor holding brake according to the motor projection.
Ap5385f1.fh7
X1
X6
24V
to the central
ground

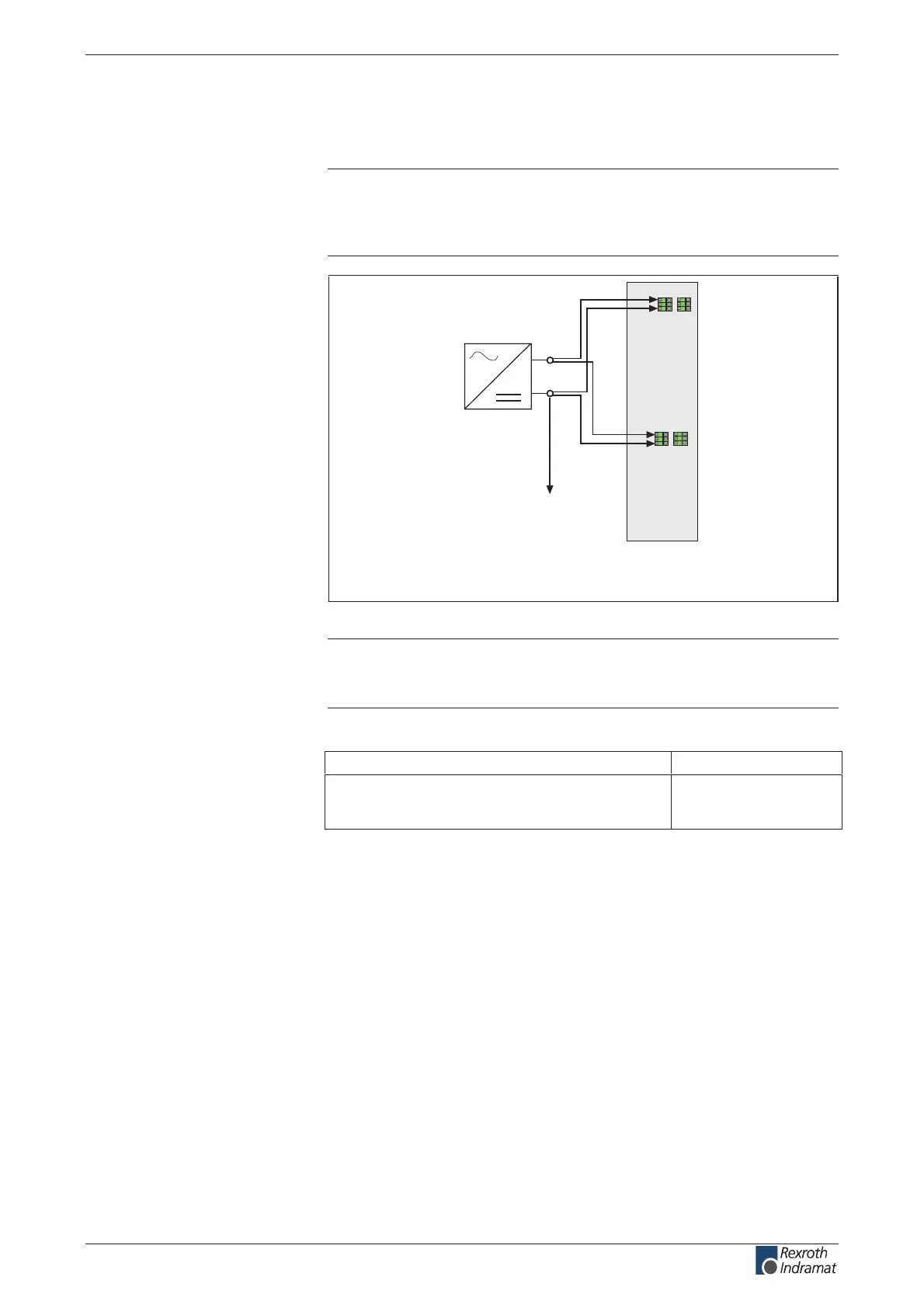

Fig. 5-65: Shared voltage source for brakes and control voltage supply
Note: Looping through the voltages to other drive controllers is
impossible. Other drive controllers have to be connected in
radial arrangement around the voltage source.
V 63 CD:5.6X tsniaga 4.6X ta egatlov .xam
current consumption at X6.3 and needed supply
voltage:
see "Technical data"
brake in the motor
manual
Voltage connection for brakes
on DKC:
