ECODRIVE03 Drive Controllers ECODRIVE03 Auxiliary Bleeder Module BZM01.3 6-19
Mains connections
The mains connector serves as the connection of the drive controller with
the power supply.
device-external device-internal
AP5370F1.FH7
X5
L1
L2
L3
L1
N
n.c.

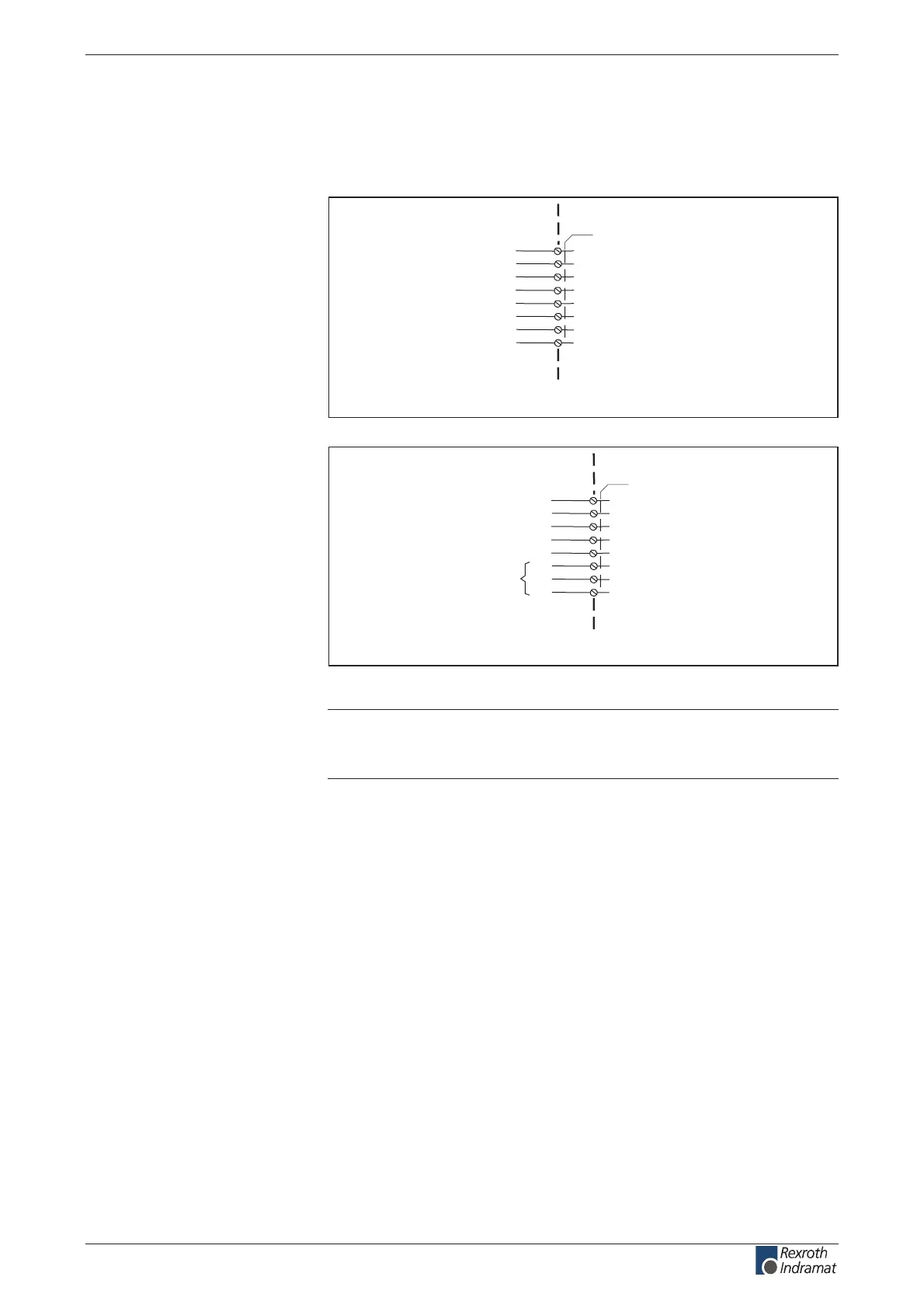

Fig. 6-41: Single-phase mains connection
device-external device-internal
AP5303F1.FH7
X5
L1
L2
L3
L1
L2
L3
mains connection
Fig. 6-42: Three-phase mains connection
Note: Mains connections should not be daisy-chained between the
units (intermediate connectors for the supply source should be
used).
See page 11-1: "Mains Connections"
Single-phase mains connection:
Three-phase mains connection:
