ECODRIVE03 Drive Controllers Replacing or Exchanging Drive Components 15-5
Note: When replacing the motor, cap open connector ends
particularly if there might be the change that coolant or grease
could be sprayed or splashed in their vicinity (allowable level of
dirt contamination is V2 (according to DIN VDE 0160).
• Replace cables
• Connect plug-in connectors
Switchboard wall
Machine housing
V2 V2 V2 V2 V2
Indramat-Motor
ECO3
V2
Immediate environment requirements
Conductive contamination cannot occur when operating the control
drive (at least not with the IP 65); when installing or exchanging drive
components, non- conductive contamination or light condensation
may momentarily occur.
AP5144F1.Fh7
Barcode
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
H1
S1
S3 S2
Barcode
Typenschild
123 4 5 6 7 8 9 1 2 3 4
11121314 15161718
567 8
123 4
123 4
567 8

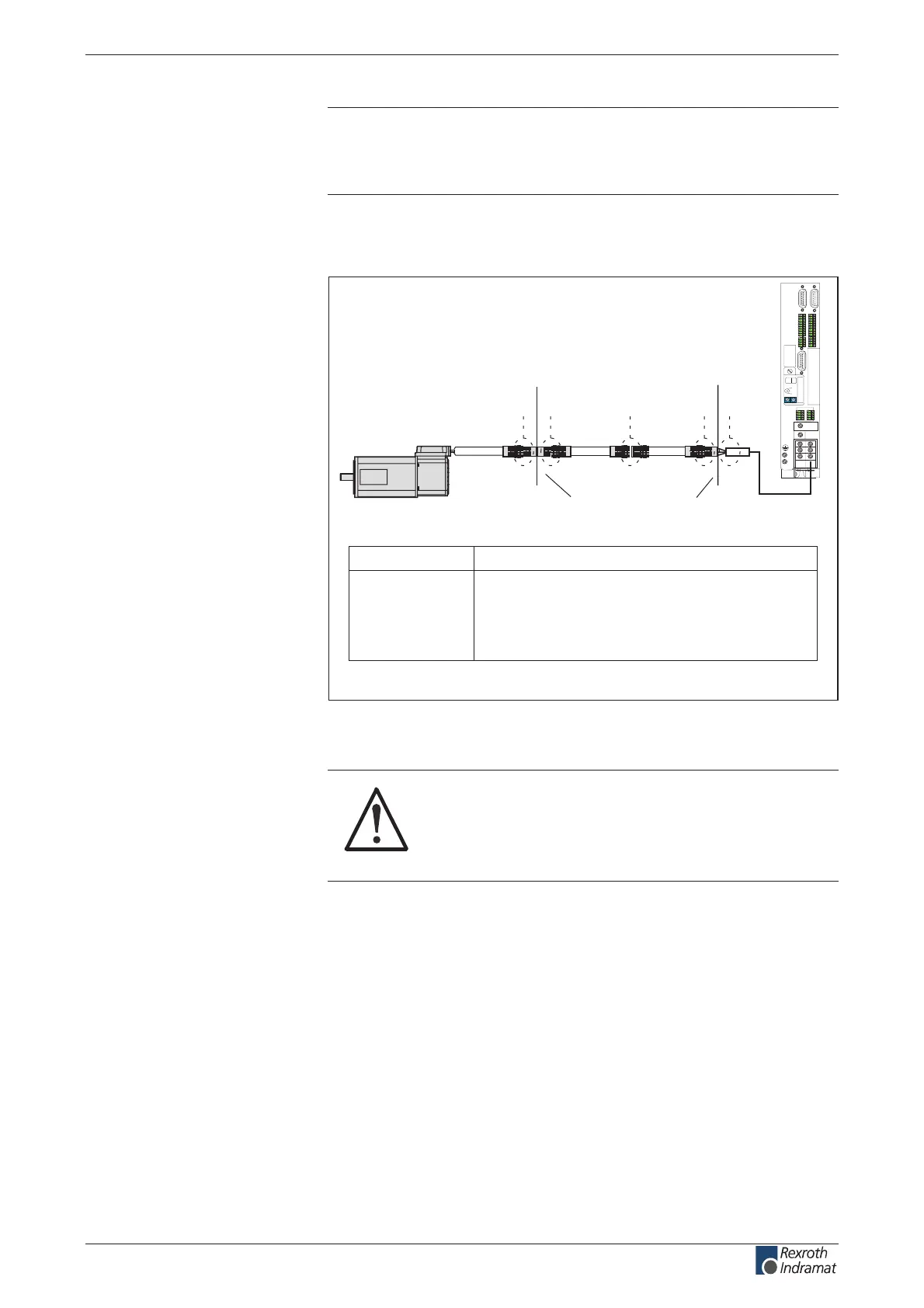

Fig. 15-2: Dirt contamination per DIN VDE 0160
ATTENTION
Property damage caused by bad power
connectors!
 Connect power connections only when they are dry
and clean.
