ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-25
Arranging the Central supply
Note: DKC**.3-040 as supply unit in "Central supply" not allowed!
Note: The connection of the devices DKC**.3-100 and DKC**.3-200
to the mains power is not to increase the allowed DC bus
continuous power but to protect the integrated DC bus
dynamic brake setup (ZKS).
See also "Fig. 4-146: Block diagram interlock ZKS/Mains"
,
Ap5112f1.fh7
K1
DKC**.3
3
3
BZM1.3
CZM1.3DKC**.3 DKC**.3
3
-100 -100 -040
-200 -200
3 3
3

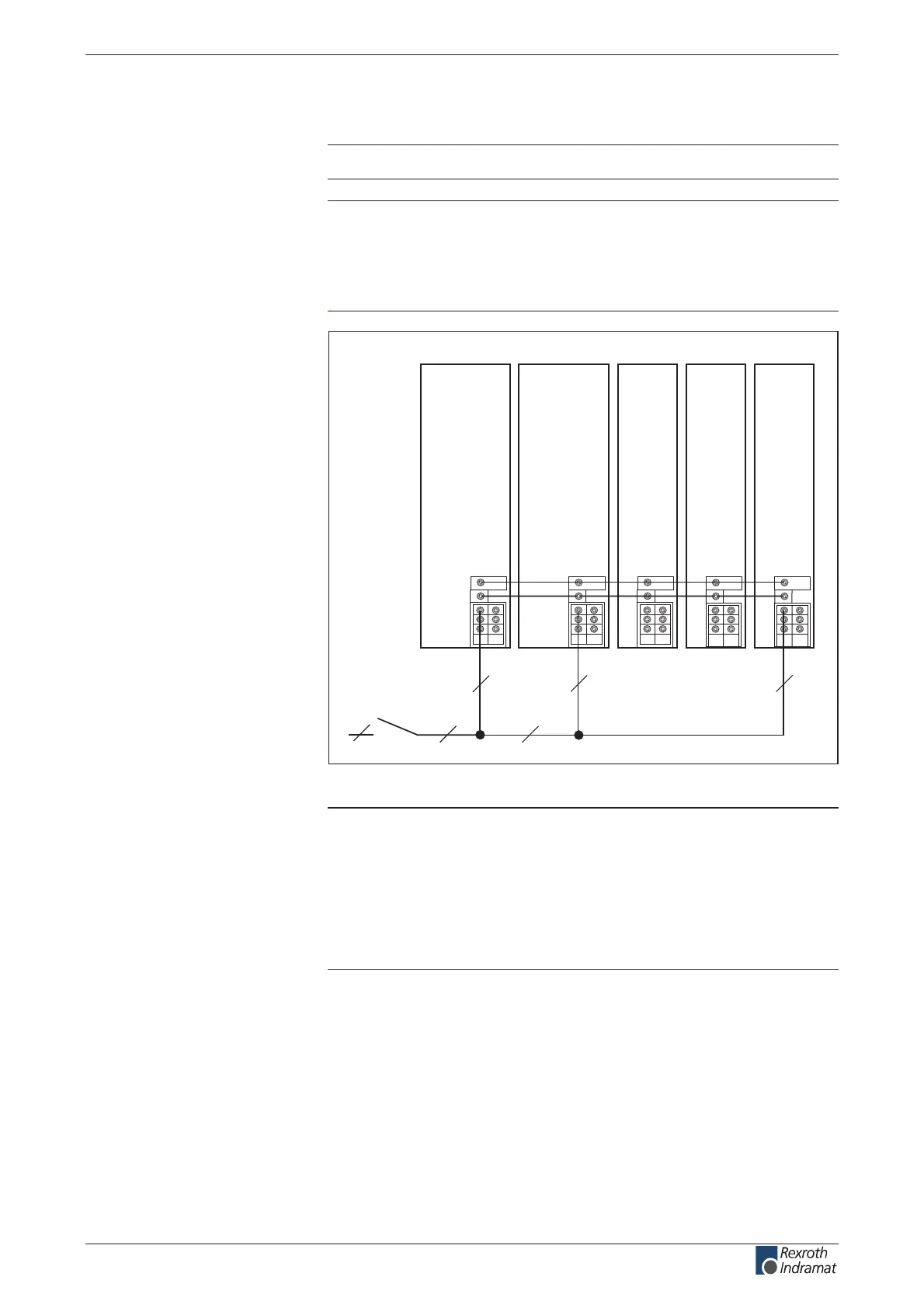

Fig. 4-25: Central supply
Note: In addition to the illustrated connections of the drive controller
at the DC bus, the following connections must be wired as
well:
• Bb contact
• control voltage supply
• Ud and Udpower supply (see "Fig. 4-149: UD power
supply")
