Rexroth Indramat ECODRIVE03 Series User Manual

ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-37
DKC**.3-200-7
0
100
200
300
400
500
600
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
P
ZWD
[W]
U
N3
[V]
—————: DKC**.3-200-7, 50 Hz without CZM
— — — —: DKC**.3-200-7, 50 Hz with CZM

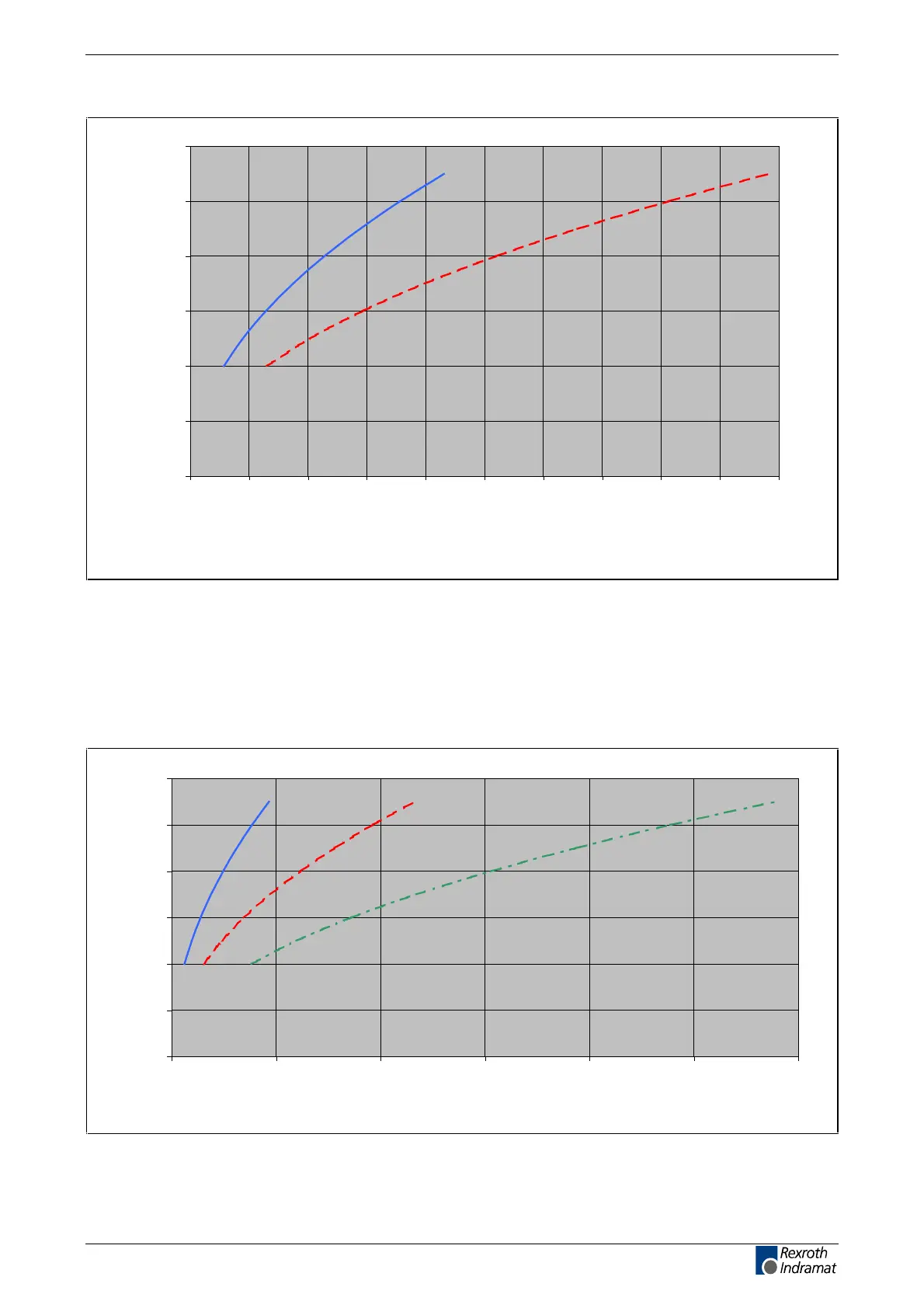

Fig. 4-37: Allowed DC bus continuous power in single-phase mode with 50 Hz
Allowed DC bus continuous power in single-phase mode
with networks with a frequency of 60 Hz
DKC**.3-040-7, DKC**.3-100-7
0
100
200
300
400
500
600
0 1000 2000 3000 4000 5000 6000
P
ZWD
[W]
U
N3
[V]
—————: DKC**.3-040-7, 60 Hz with / without CZM
— — — —: DKC**.3-100-7, 60 Hz without CZM
— - — - — : DKC**.3-100-7, 60 Hz without CZM
Fig. 4-38: DC bus continuous power in single-phase mode with 60 Hz
