Rexroth Indramat ECODRIVE03 Series User Manual

4-38 ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 ECODRIVE03 Drive Controllers
DKC**.3-200-7
0
100
200
300
400
500
600
0 2000 4000 6000 8000 10000 12000
P
ZWD
[W]
U
N3
[V]
—————: DKC**.3-200-7, 60 Hz without CZM
— — — —: DKC**.3-200-7, 60 Hz with CZM

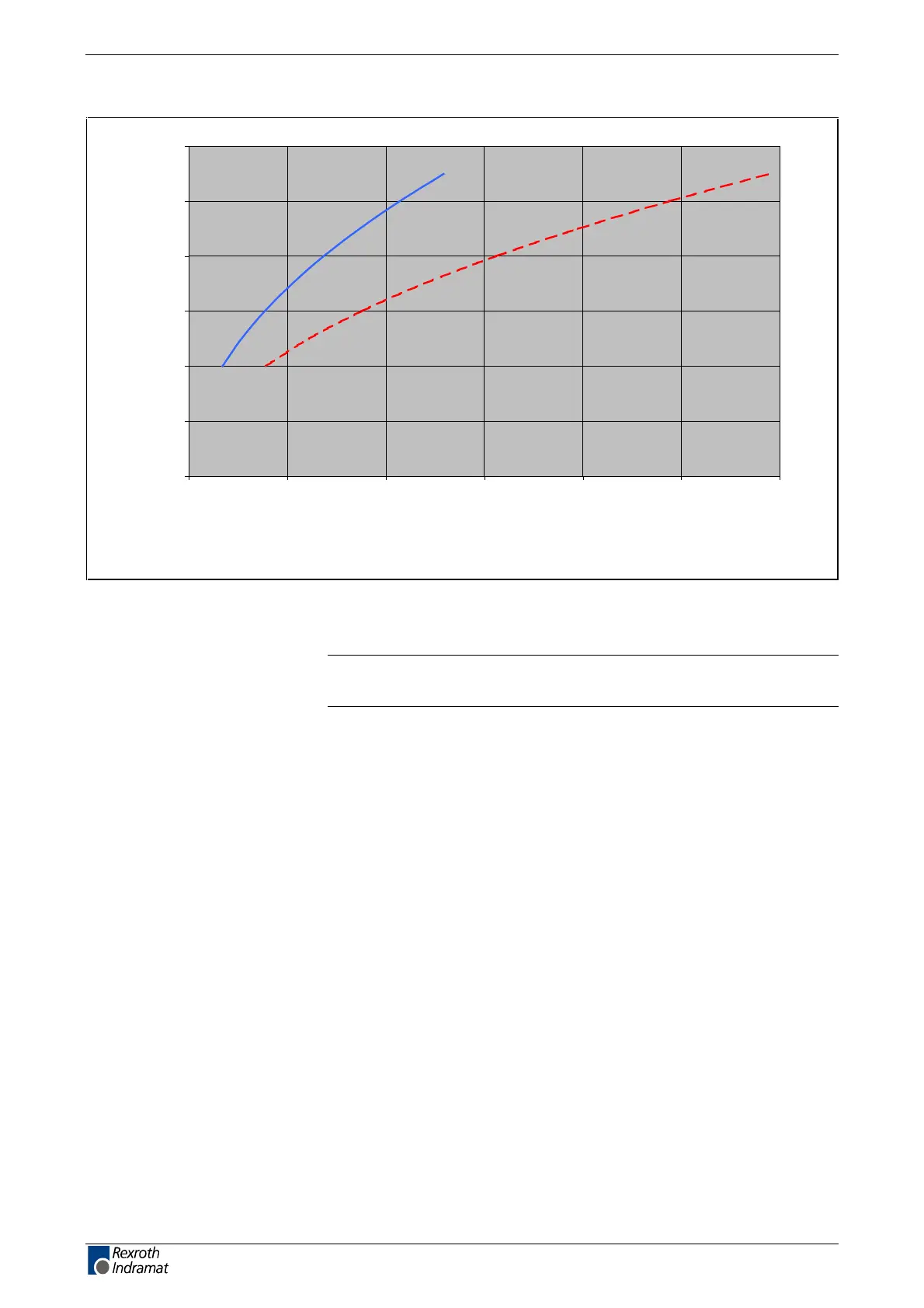

Fig. 4-39: DC bus continuous power in single-phase mode with 60 Hz
Note: Do not operate DKC**.3-200-7s with single-phase mains with
smoothing choke !
