17.3 SOLID STATE OUTPUT I/O MODULE

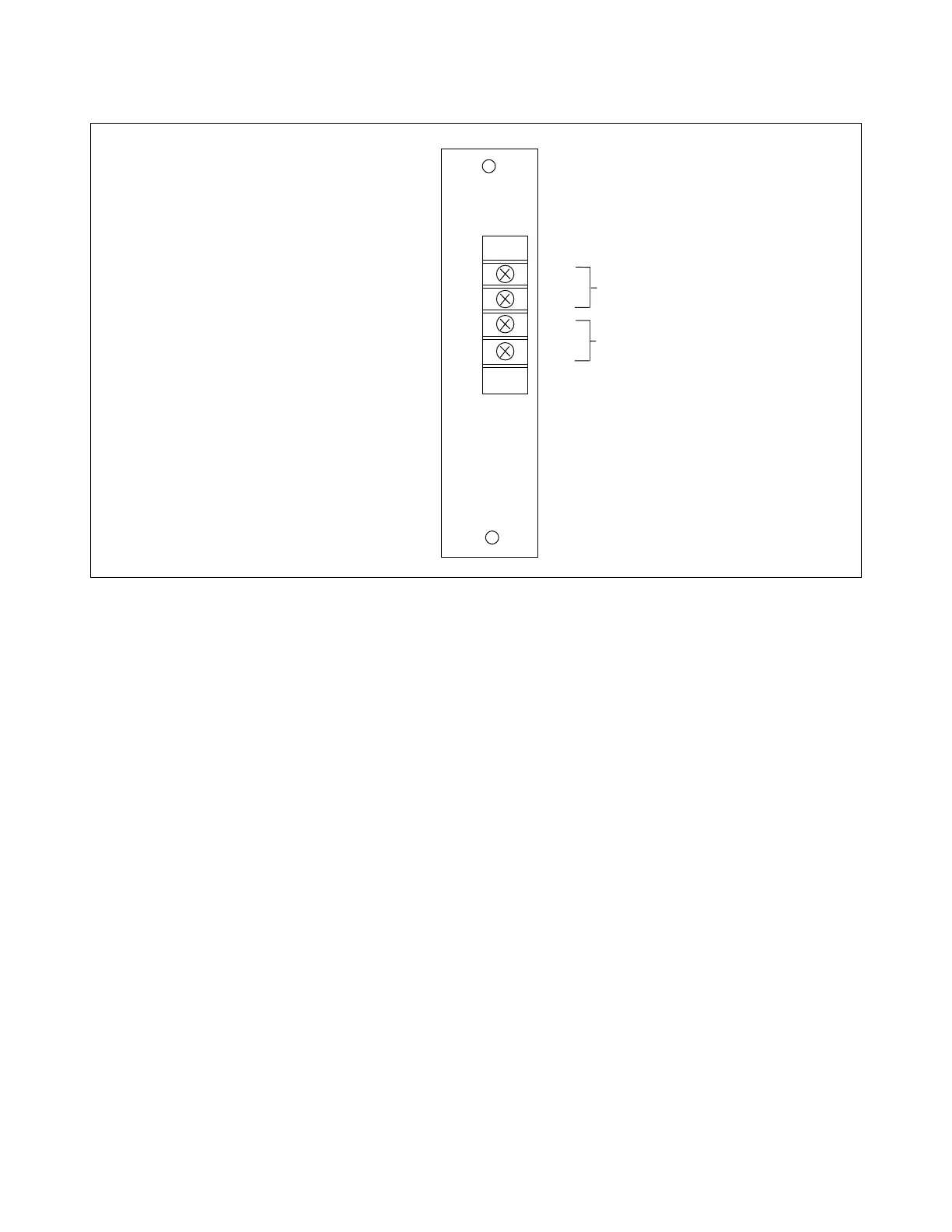

Figure 17-7. Solid State Output I/O module, rear panel view
17.3.1. DESCRIPTION
The Solid-State Output I/O module provides two solid state outputs. This I/O module is available in
three versions as follows:
Input Voltage Assembly No.
48V or 125V (106440-3)
250V (106440-4)
5V (106440-5)
The outputs are used for received trip and guard commands. All signals to and from the Solid-State
Output I/O module interface directly with the 9780 Logic Module.
The Solid-State Output I/O module is primarily used for RX/RX and RX only applications. It can also
be used for customer specific applications and can be mounted in a spare I/O slot, if available, or in an
expansion chassis.
User configuration is not required for this module.
SS OUTPUT I/O
+1
SS1
-2
+3
SS2
-4
+
-
+
-
SS GUARD OUT
SS TRIP OUT
