Table 19-9. Replaceable parts, RFL 9780 Dual Power Supply I/O module
Assembly No. 106455-3 and -4.
Circuit Symbol
(Figs. 19-10 & 19-11)
Description Part Number
C1, 2, 6 ,7
Capacitor, metalized polypropylene, 0.22µF, 20%, 275V
1007 1808
C3, 4, 8, 9 Capacitor, ceramic disc, 0.01µF 1007 1788
C5, 10
Capacitor, electrolytic, 0.47µF, 20%, 350V
1007 1854
F1, 2 Fuse, carrier international 90278
L1, 3 Choke, common mode, 3mH, 1.8Adc 105426
L2, 4 Inductor, 120µH, 10%, 2A 101483
P1 Connector, plug, female, 64 cont, DIN 99134
R1, 2 Resistor, carbon film, 330KΩ, 5%, 1/2W 0500 6
S1, 2
Switch, rocker, SPST
30441 1
TB1 Terminal block 101697 4
VR1, 2 Suppressor, varistor
L3
L4L2
C10
L1
W3
W4
W2
VR2
C7
C6
C1
R2
C9
C8
C3
C5
W1
VR1
C2
R1
P1
C4
TB1
RFL ELECTRONICS INC.
DUAL PWR SUPP I/O 106458-1 REV-B
+
+
1

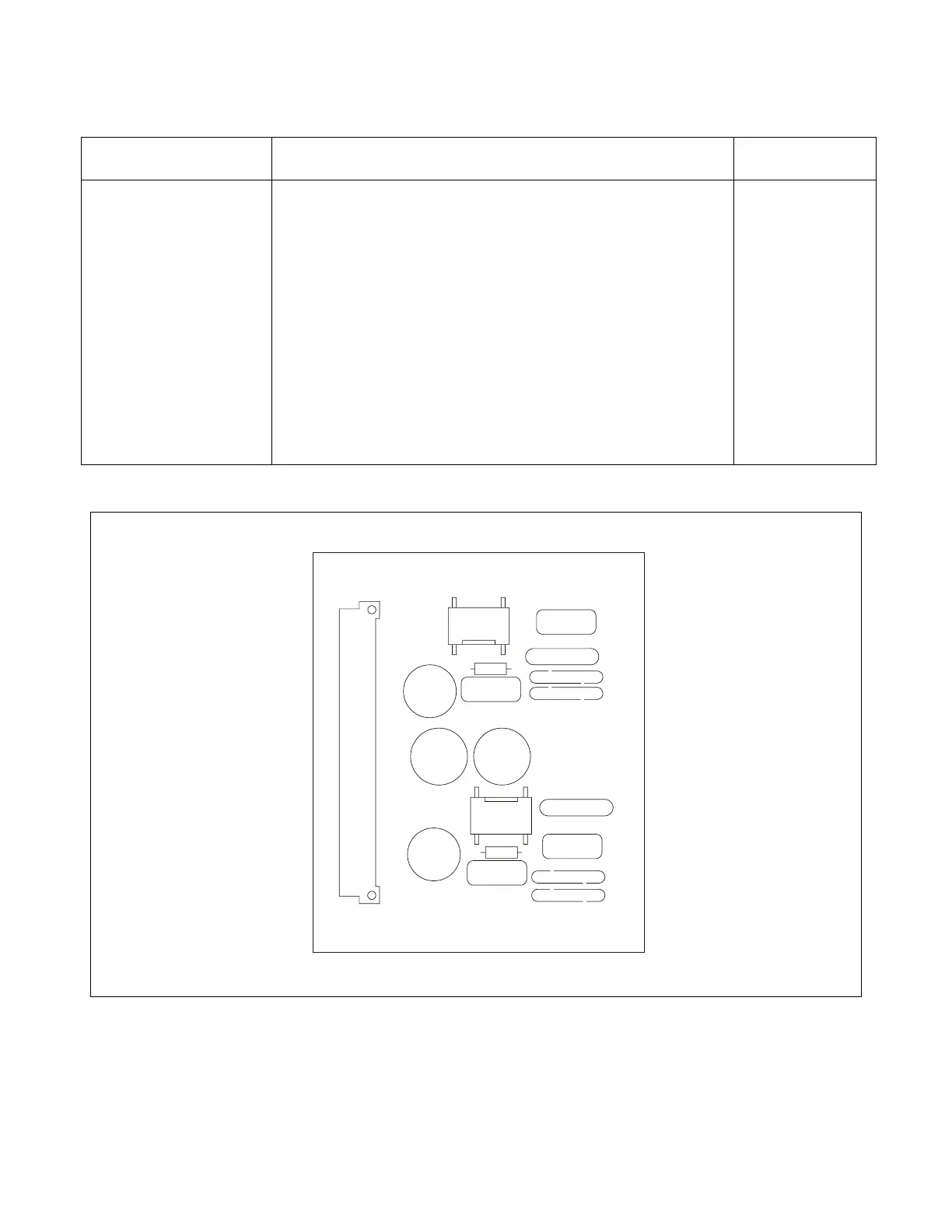

Figure 19-10. Component locator drawing, dual power supply I/O module
