RFL Electronics 9780 - Table 19-7. Replaceable Parts, RFL 9780 Single Power Supply I;O Module

RFL 9780 RFL Electronics Inc.
April 8, 2003 19-21 (973) 334-3100
Table 19-7. Replaceable parts, RFL 9780 Single Power Supply I/O module
Assembly No. 106455-1 and -2.
Circuit Symbol
(Figs. 19-7 & 19-8)
Description Part Number
C1, 2
Capacitor, metalized polypropylene, 0.22µF, 20%, 275V
1007 1808
C3, 4 Capacitor, ceramic disc, 0.01µF 1007 1788
C5
Capacitor, electrolytic, 0.47µF, 20%, 350V
1007 1854
F1 Fuse, 4A, 250V, slo-blo 301122
L1 Choke, common mode, 3mH, 1.8Adc 105426
L2 Inductor, 120µH, 10%, 2A 101483
P1 Connector, plug, female, 64 cont, DIN 99134
R1 Resistor, carbon film, 330KΩ, 5%, 1/2W 0500 6
S1
Switch, rocker, SPST
30441 1
TB1 Terminal block 101697 4
VR1
Suppressor, varistor
C1, 2 106455-1: V130LC20B 41079
C3, 4 106455-2: V275LC40B
105447
-1
V130LC20B
L1
L2
C1
C5
W2
C2
C
3
W1
VR1
R1
P1
C
4
TB1
RFL ELECTRONICS INC., BOONTON, NJ, U.S.A.
PWR SUPP I/O 106458 REV-B
+
1

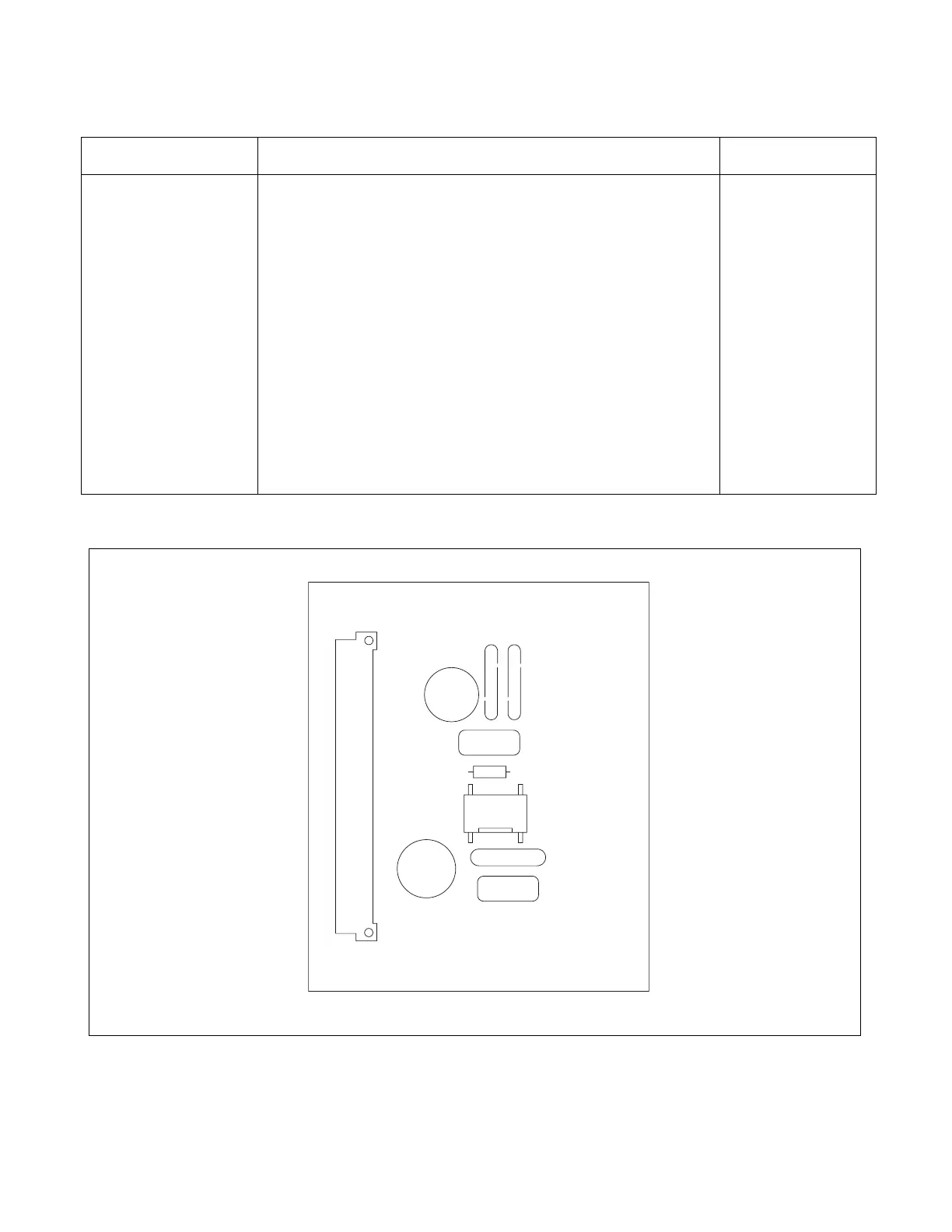

Figure 19-7. Component locator drawing, single power supply I/O module
