RFL 9780 RFL Electronics Inc.
April 8, 2003 20-1 (973) 334-3100
SECTION 20. CHASSIS ASSEMBLY
POWER SUPPLY POWER SUPPLY BLANK BLANK
LOGIC
BLANK
CLI
LM/SL
IF/BF RF/IF
SOE BLANK

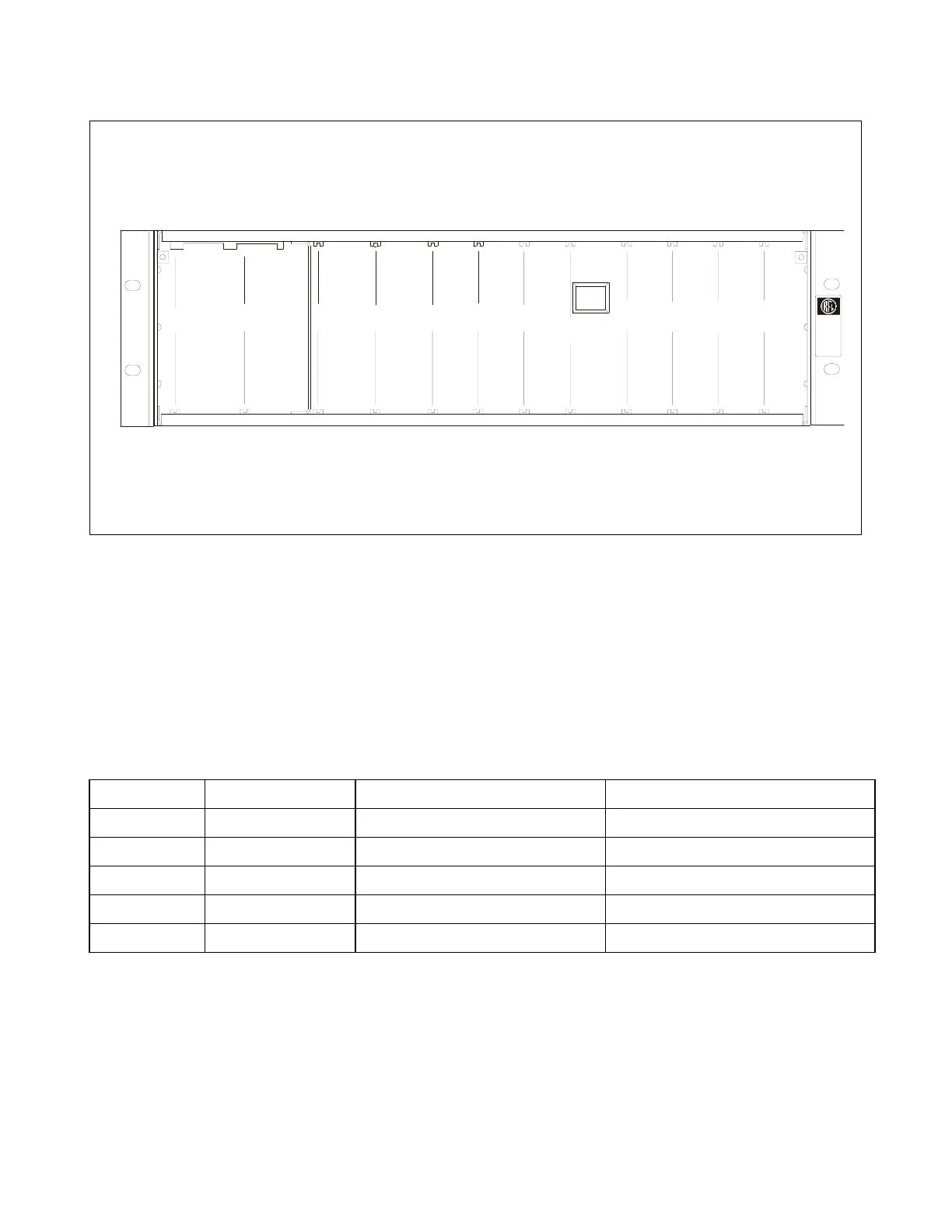

Figure 20-1. RFL 9780 Tx/Rx Chassis Assembly, front view with door opened
20.1 INTRODUCTION
There are five different types of RFL 9780 systems. These are Tx/Rx, Rx/Rx, Tx/Tx, Tx only and Rx
only. In addition to this there are five different types of chassis assemblies and three different types of
mother board assemblies as shown in Table 20-1. The front view of a typical RFL 9780 Tx/Rx chassis
with its door opened is shown in Figure 20-1.
Table 20-1. RFL 9780 Tx/Rx Chassis Assembly, front view with door opened
9780 System Chassis Assy No. Mother Board Assy No. Schematic No.
Tx/Rx 106400-1 106450-2 (See Fig. 20-2) D-106454-2-A (See Fig. 20-6)
Rx/Rx 106410 106560-2 (See Fig. 20-3) D-106564-2-A (See Fig. 20-7)
Tx/Tx 106405-1 106555-2 (See Fig. 20-4) D-106559-2-A (See Fig. 20-8)
Tx only 106610 106450-2 (See Fig. 20-2) D-106454-2-A (See Fig. 20-6)
Rx only 106615 106450-2 (See Fig. 20-2) D-106454-2-A (See Fig. 20-6)
