19.3.2 CONTROLS AND INDICATORS FOR 106455-3 & -4 P.S. I/Os

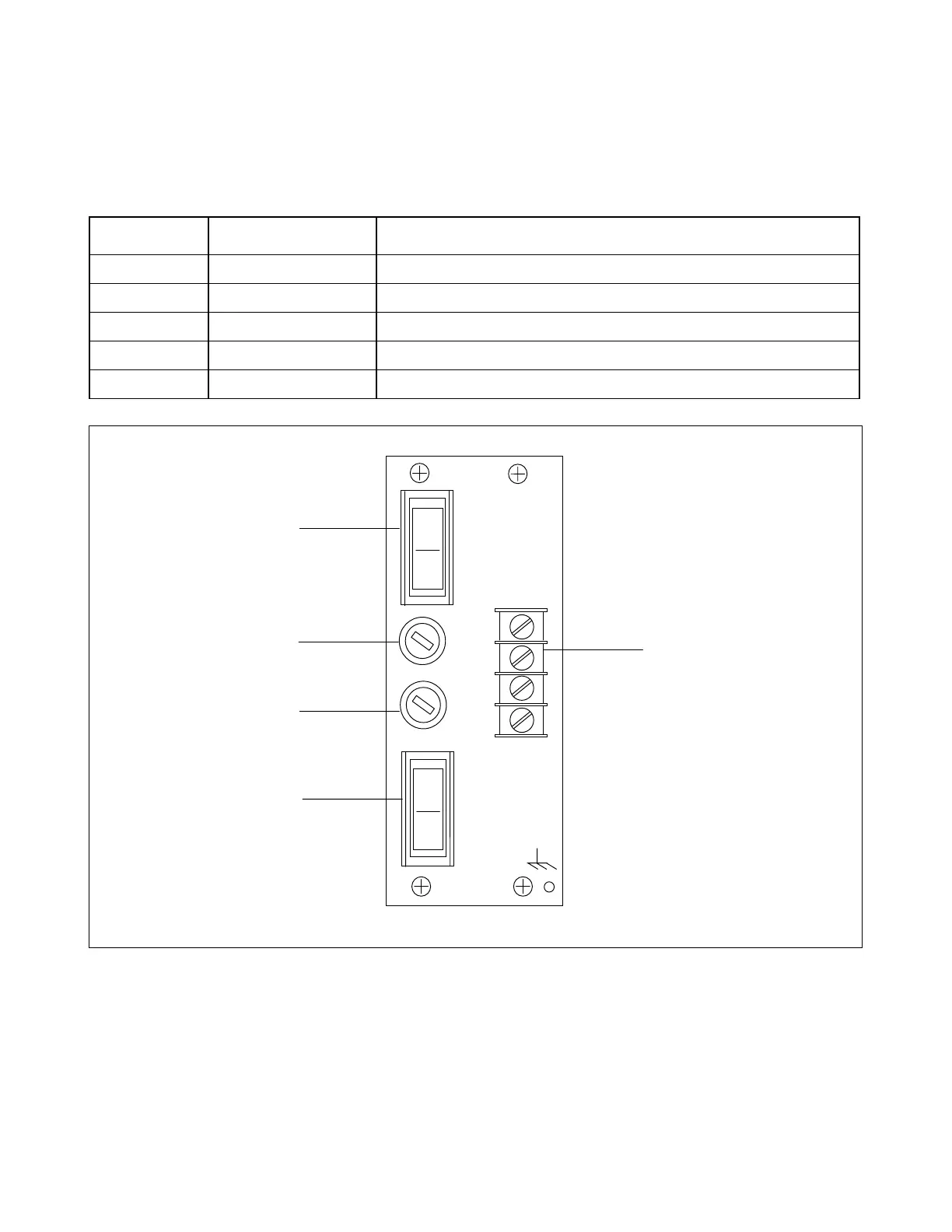

Figure 19-9 shows the location of all controls on the RFL 9780 Dual Power supply I/O module. These
controls are described in Table 19-8.
Table 19-8. Controls and Indicators, RFL 9780 dual power supply I/O module
Component
Designator
Name/
Description
Function
F1 Fuse Fuse for power supply No. 1
F2 Fuse Fuse for power supply No. 2
SW1 Switch ON/OFF switch for power supply No. 1
SW2 Switch ON/OFF switch for power supply No. 2
TB1 Terminal Board Input power connections
Figure 19-9. Controls and indicators, RFL 9780 dual power supply I/O module
1
0
P.S. - A
ON P.S.I/O
OFF A
F1 SB+
4A SB-
SB+
F2 SB-
B
ON
OFF
SW1
F1
F2
SW2
TB1
1
0
