18.3.3 CONTROLS AND INDICATORS

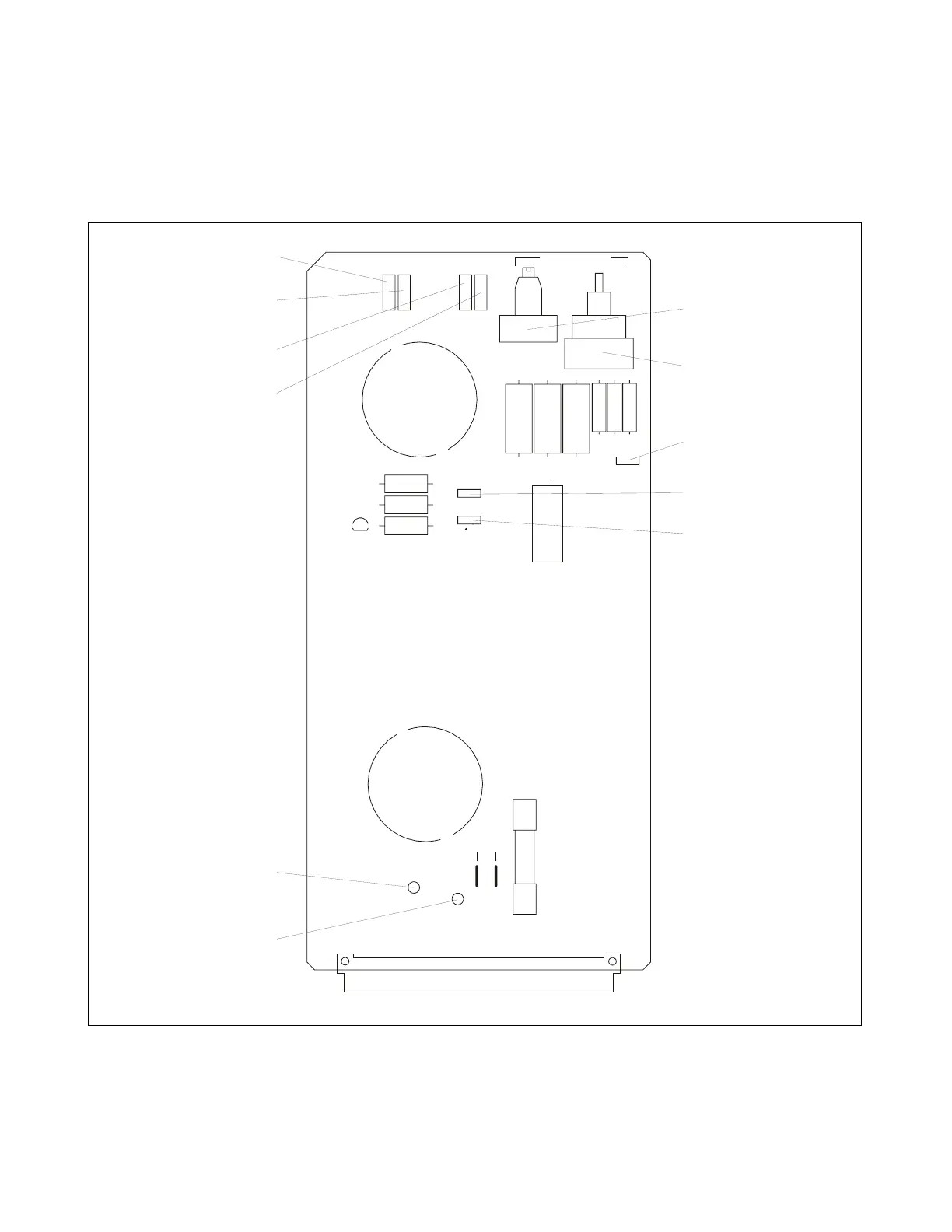

Figure 18-5 shows the location of all controls and indicators on the Skewed Hybrid module. These
controls and indicators are described in Table 18-3. Only TP5, TP6, TP7, TP8, SW1 and R4 are
accessible with the Skewed Hybrid Module installed in the chassis. All others are accessible when the
module is removed from the chassis or is on a card extender.
