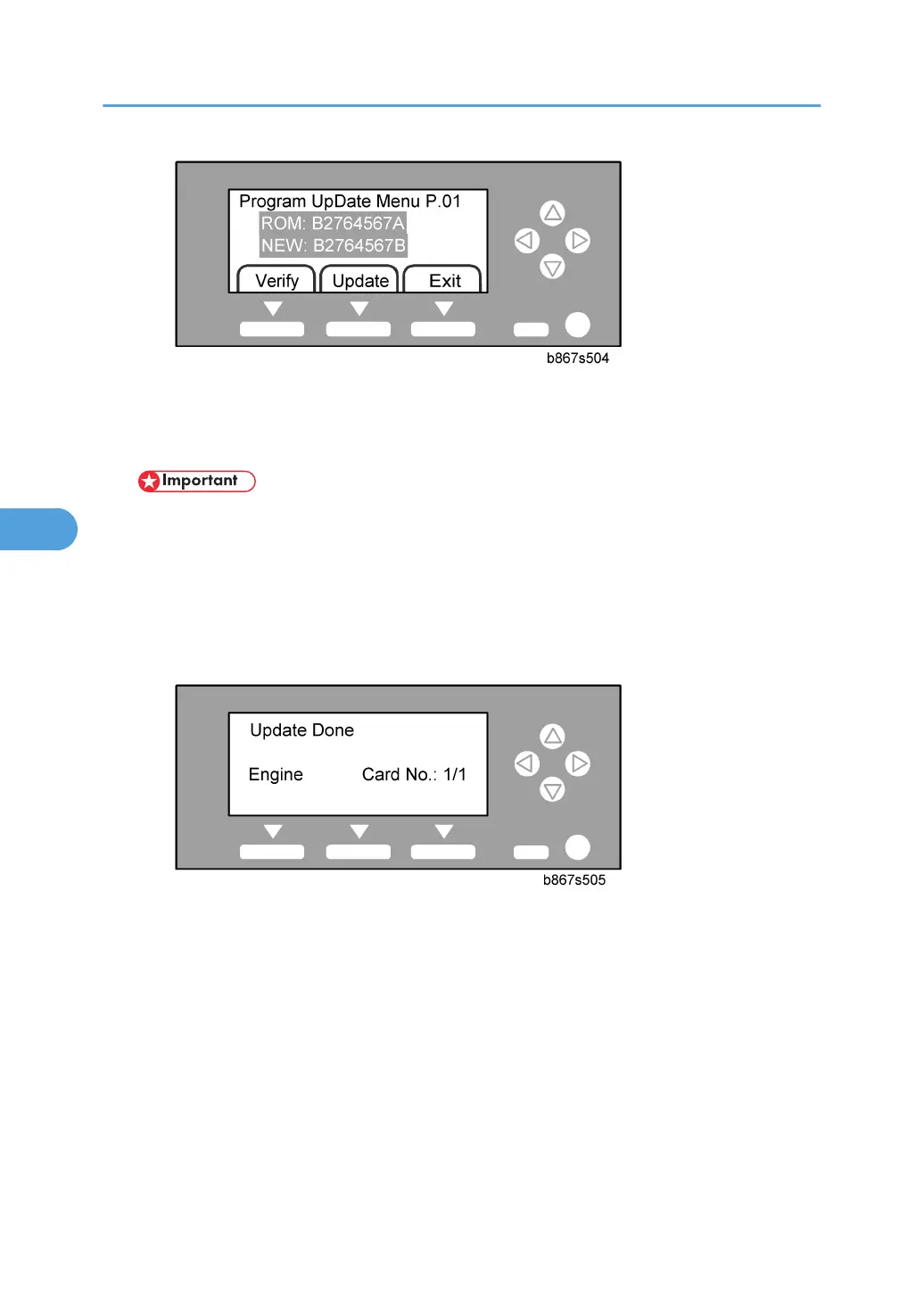

• When you have selected a module, the text lines are highlighted, and the "Verify" key and the
"Update" key are displayed.
8. Select a module and press the "Update" key.
• Do NOT press the “Verify” key.
9. The firmware update program starts and the message "Loading" is displayed.
• The update will begin, and then will take a few minutes to complete. The LCD will initially display,
“Updating… ***---------“.
• When the update is completed, the LCD display will change to “Update done” or “Updated /
Power Off On”.
10. Check that the message "Update Done" is displayed.
Confirmation
1. Turn the main power switch off and on.
• The LCD will display “Please wait…” for about 60 seconds, after which it will return to the
“Program UpDate Menu” screen.
2. Repeat Steps 1-8 above until all firmware updates are complete.
3. Turn the main power switch off.
4. Remove the SD card from the lower slot on the controller by pushing on the card to release the spring
lock.
5. Service Tables
228
