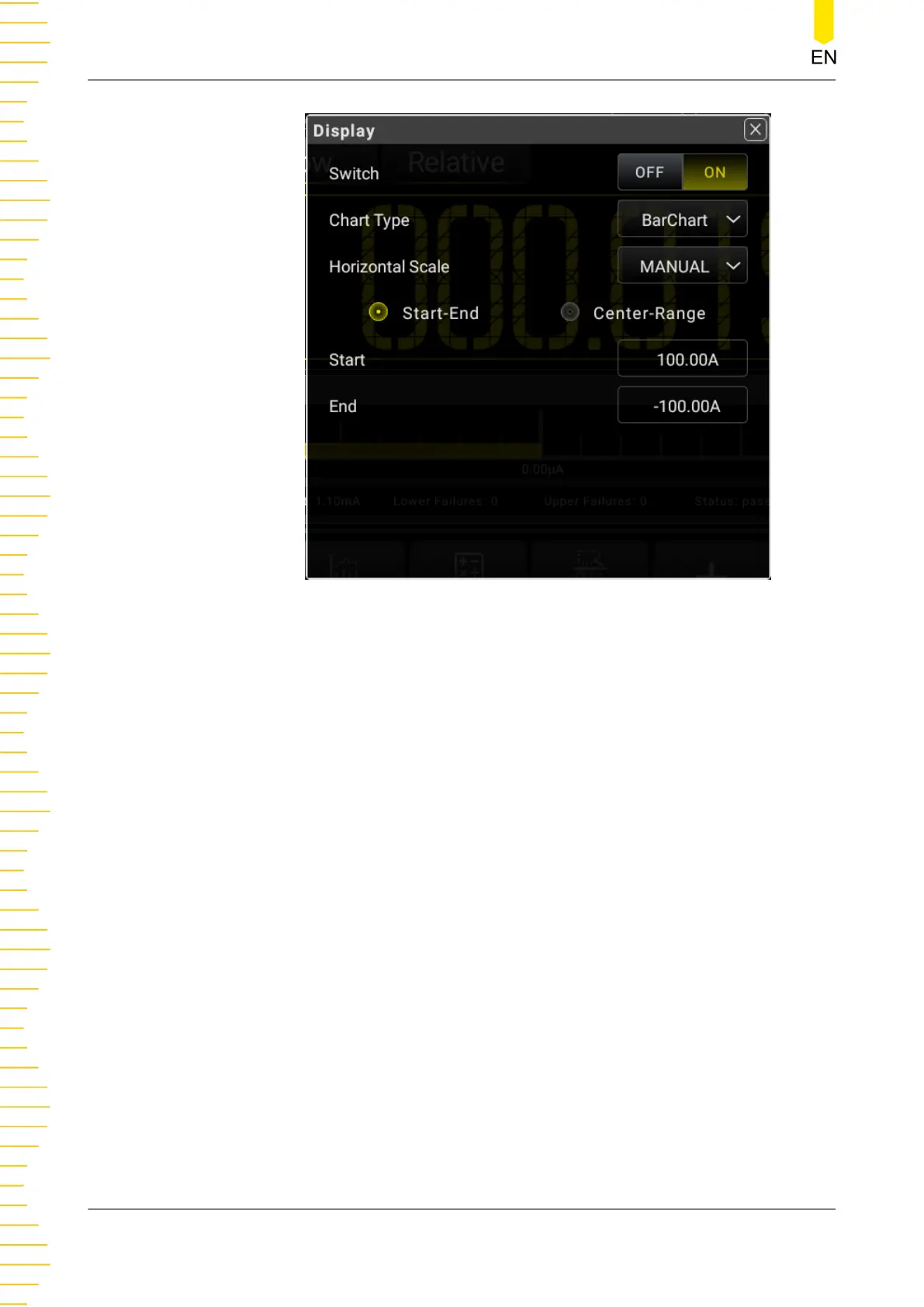

Figure 5.59 Manual Setting of Bar Chart
- Start: sets the start range of the horizontal scale.
- End: sets the end range of the horizontal scale.
- Center: sets the middle value of the horizontal scale.
- Range: sets the range value of the horizontal scale.
The following figure shows the bar chart display form for the DCV measurement.
Front Panel Operation
DM858 Series User Guide
