Rigol DM858 - Figure 5.9 AC Current Measurement Interface; To Measure AC Current

When reading the measurement results, you can use the arrow keys to switch the
reading rate.
6. Hold the reading data
Press to run and hold the reading data displayed on the screen.
5.3.4 To Measure AC Current
The instrument can measure up to 10 A(DM858)/3 A(DM858E) AC current . The
following section introduces the connection methods and measurement methods of
AC current.
Operation Procedures:
1. To enter the AC current measurement interface, perform either one of the
following two operations.
- Press on the front panel;
- Click or tap the main measurement item shown at the left part of the main
display area. The measurement items are displayed. Click or tap to select
to enter the AC current measurement interface.

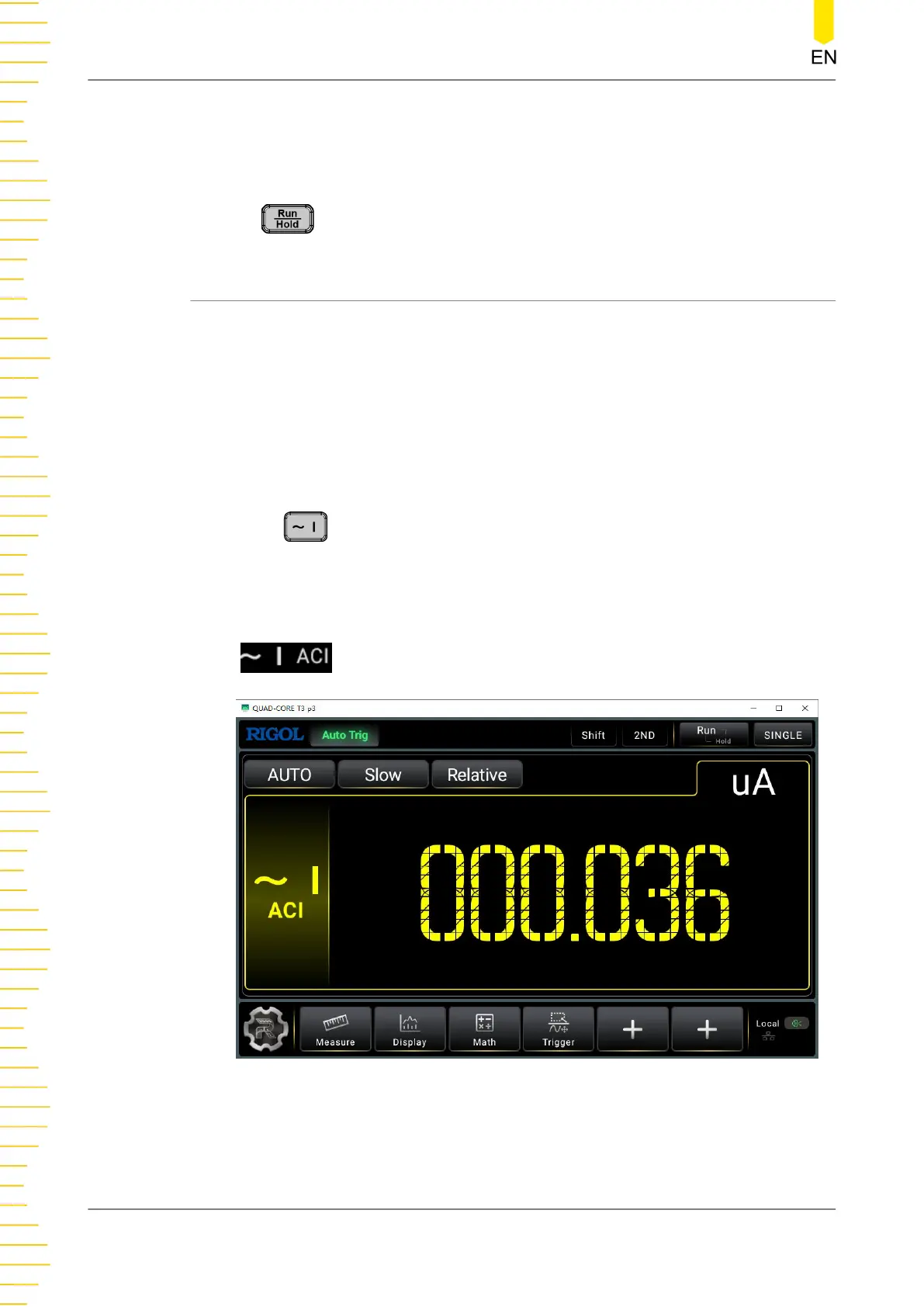

Figure 5.9 AC Current Measurement Interface
2. Connect red lead to terminal Input-I and black lead to terminal Input-LO, as shown
in the figure below.
