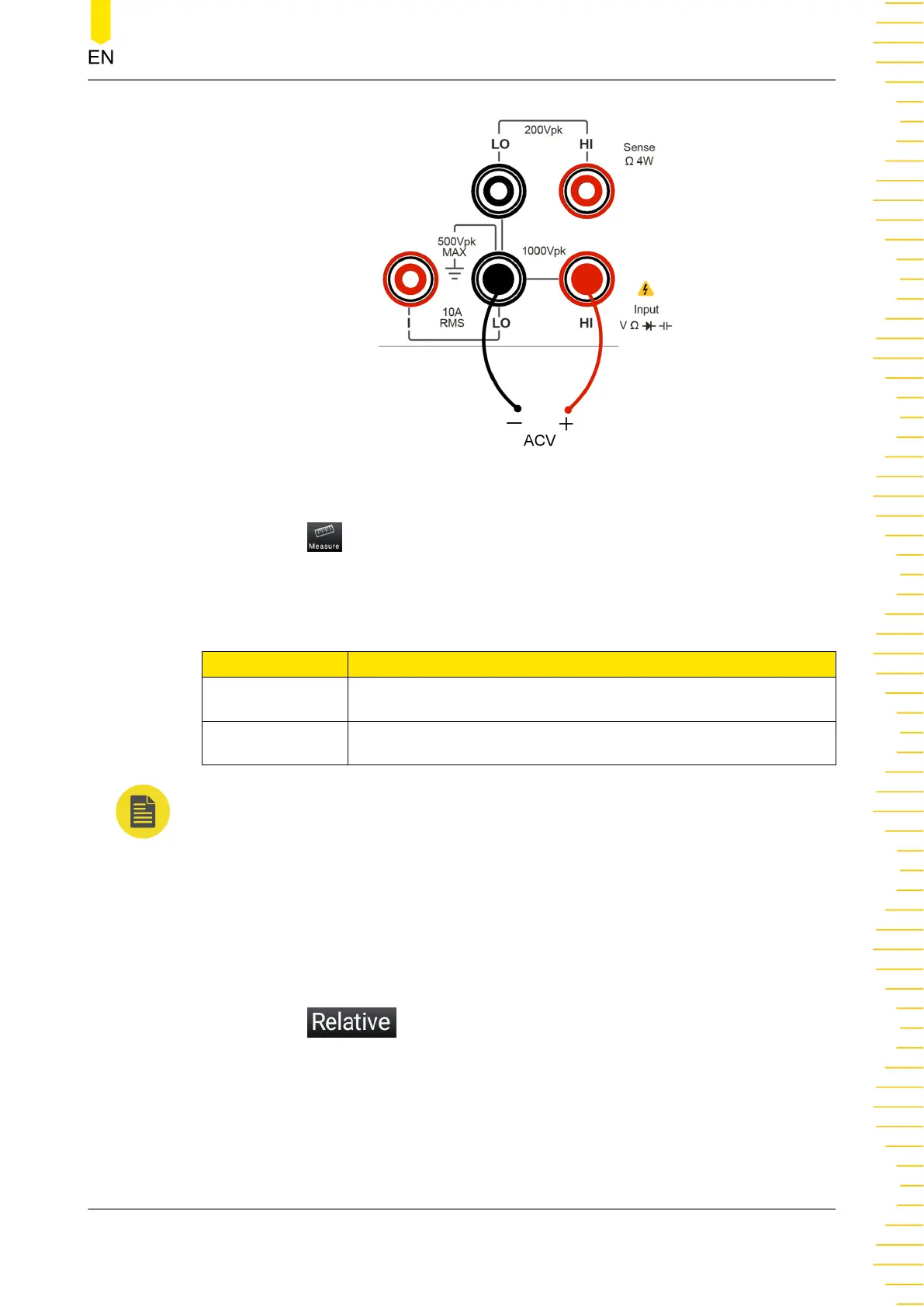

Figure 5.8 AC Voltage Measurement Connection Diagram
3. Click or tap to set the measurement parameters of AC voltage: Range and
Rate
Table 5.4 AC Voltage Measurement Parameter Setting
Parameter Description
Range* Auto, 100 mV, 1 V, 10 V, 100 V, 750 V
Rate Fast, Medium, Slow
NOTE
- 20% over range on all ranges except 750 V range.
- The range can be set to Auto or a specified value (available range options for Range
menu).
- A 750 V input protection is available in all ranges and a 20% overrange is available on all
ranges except 750 V.
- If the reading exceeds 750 V in 750 V range, "OVER LOAD" will be displayed.
4. Click or tap to enable or disable the relative operation function. When
enabled, the displayed reading value is the result obtained by subtracting the set
relative value from the actual measurement value. For the relative value setting
methods, refer to descriptions in "
Math Operation
".
5. Read the measured value
Front Panel Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DM858 Series User Guide
39
