5.3.5 To Measure Resistance
The instrument provides 2-wire (2WR) and 4-wire (4WR) resistance measurements.
The following section introduces the connection methods and measurement methods
of 2WR and 4WR resistance measurements.
5.3.5.1 2WR Measurement
Operation Procedures:
1. To enter the 2WR measurement interface, perform either one of the following two
operations.
- Press on the front panel;
- Click or tap the main measurement item shown at the left part of the main
display area. The measurement items are displayed. Click or tap to select
to enter the 2WR measurement interface.

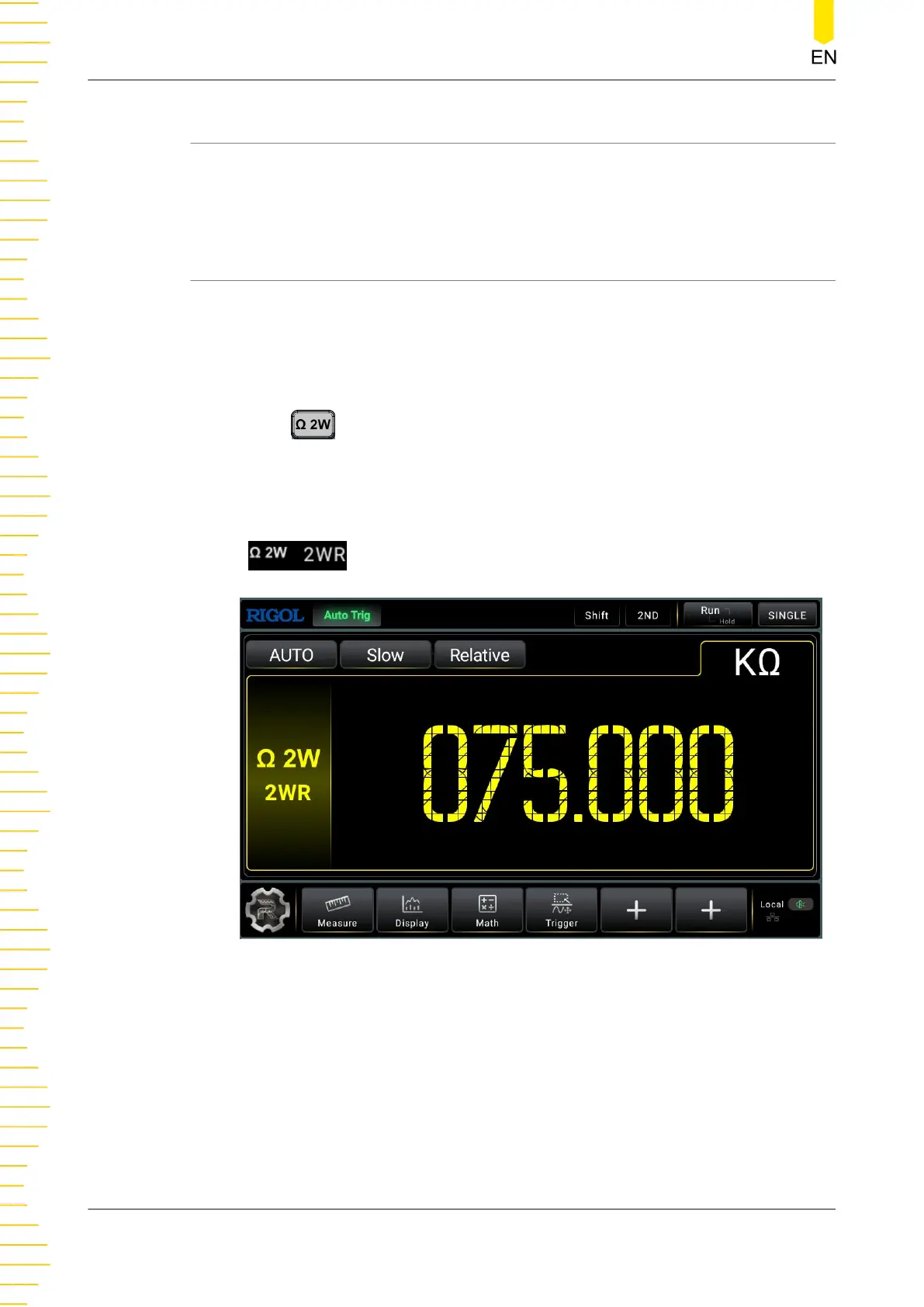

Figure 5.11 2WR Measurement Interface
2. Connect red lead to terminal Input-HI and black lead to terminal Input-LO, as
shown in the figure below.
