Parameter Remarks
from 1 ms to 7 ms. For DM858E, its
range is from 1 ms to 11 ms.
Medium: The defalut pulse width in
medium speed is 10 ms. Its range is from
1 ms to 49 ms.
Slow: The default pulse width in slow
speed is 100 ms. The range of the pulse
width for the Frequency/Period
measurement is from 1 ms to 1,599ms.
The range of the pulse width for other
measurements is from 1 ms to 399 ms.
5.8.3 External Trigger
The external trigger signal is input via the rear-panel EXT TRIG connector. You can set
the parameters such as Edge, Output, Polarity, and Pulse Width.
Press > External to enter the External trigger setting menu.

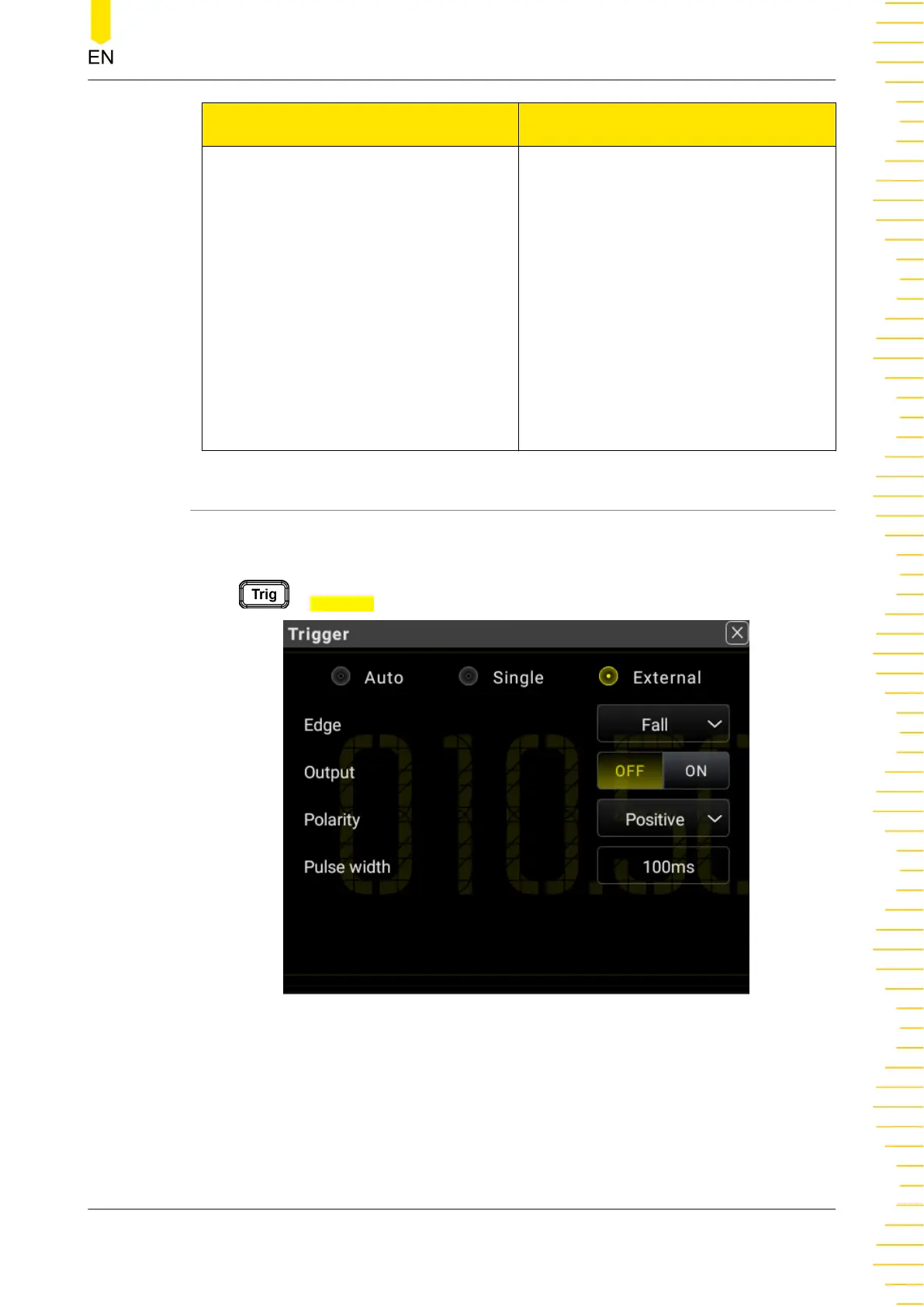

Figure 5.65 External Trigger Parameter Setting
Front Panel Operation
