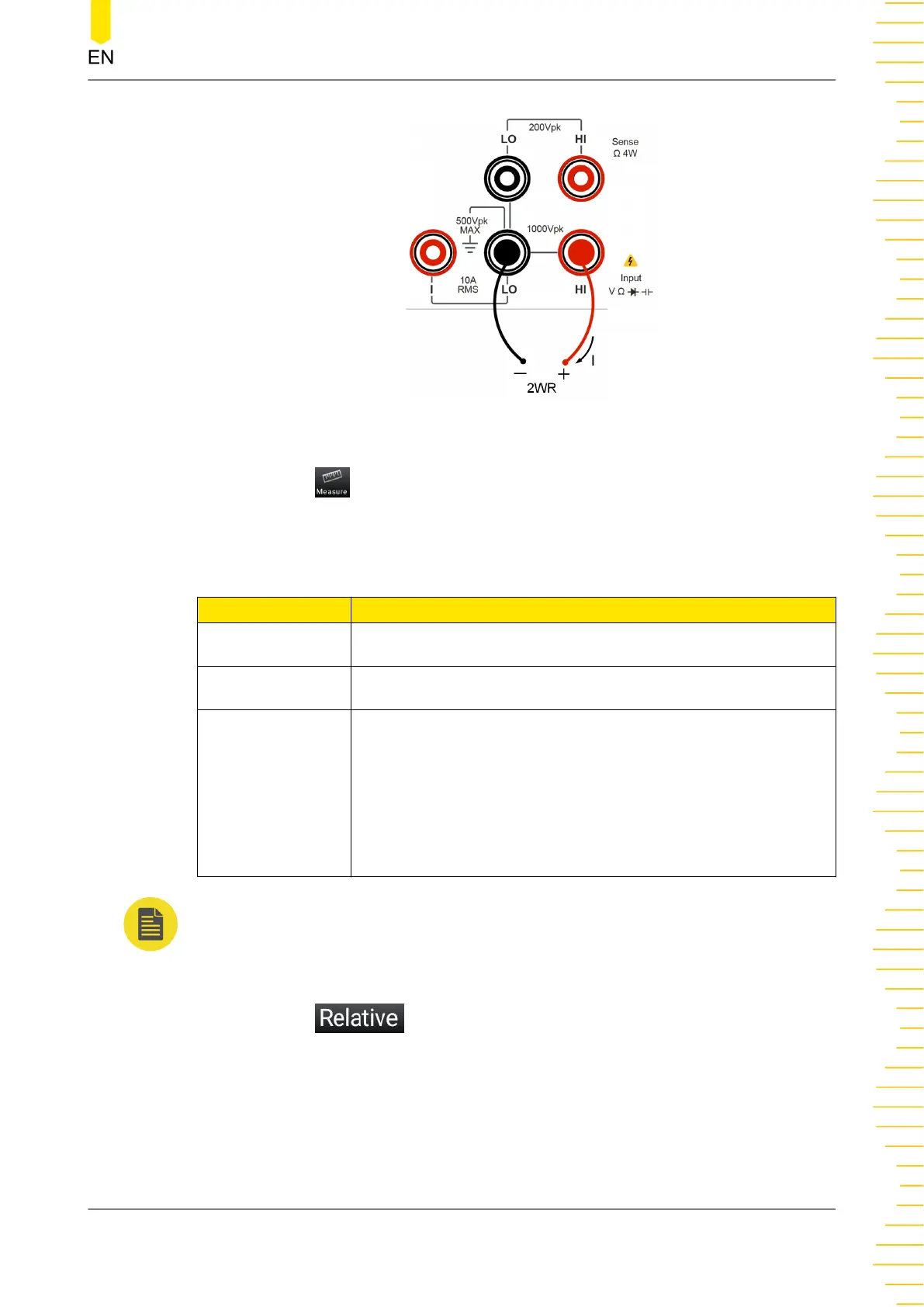

Figure 5.12 2WR Measurement Connection Diagram
3. Click or tap to set the measurement range, rate, and display digit (available
when the range is set to 1 MΩ or above and when the measurement rate is Slow).
Table 5.6 2WR Measurement Parameter Setting
Parameter Description
Range* Auto, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, and 100 MΩ
Rate Slow, Medium, Fast
Digit (available
when the range is
set to 1 MΩ or
above and when
the measurement
rate is Slow)
4
1/2
, 5
1/2
NOTE
20% overrange in all ranges. You can select Auto or a specified range value.
4. Click or tap to enable or disable the relative operation function.
When enabled, the displayed reading value is the result obtained by subtracting
the set relative value from the actual measurement value. For the relative value
setting methods, refer to descriptions in "
Math Operation
".
Front Panel Operation
