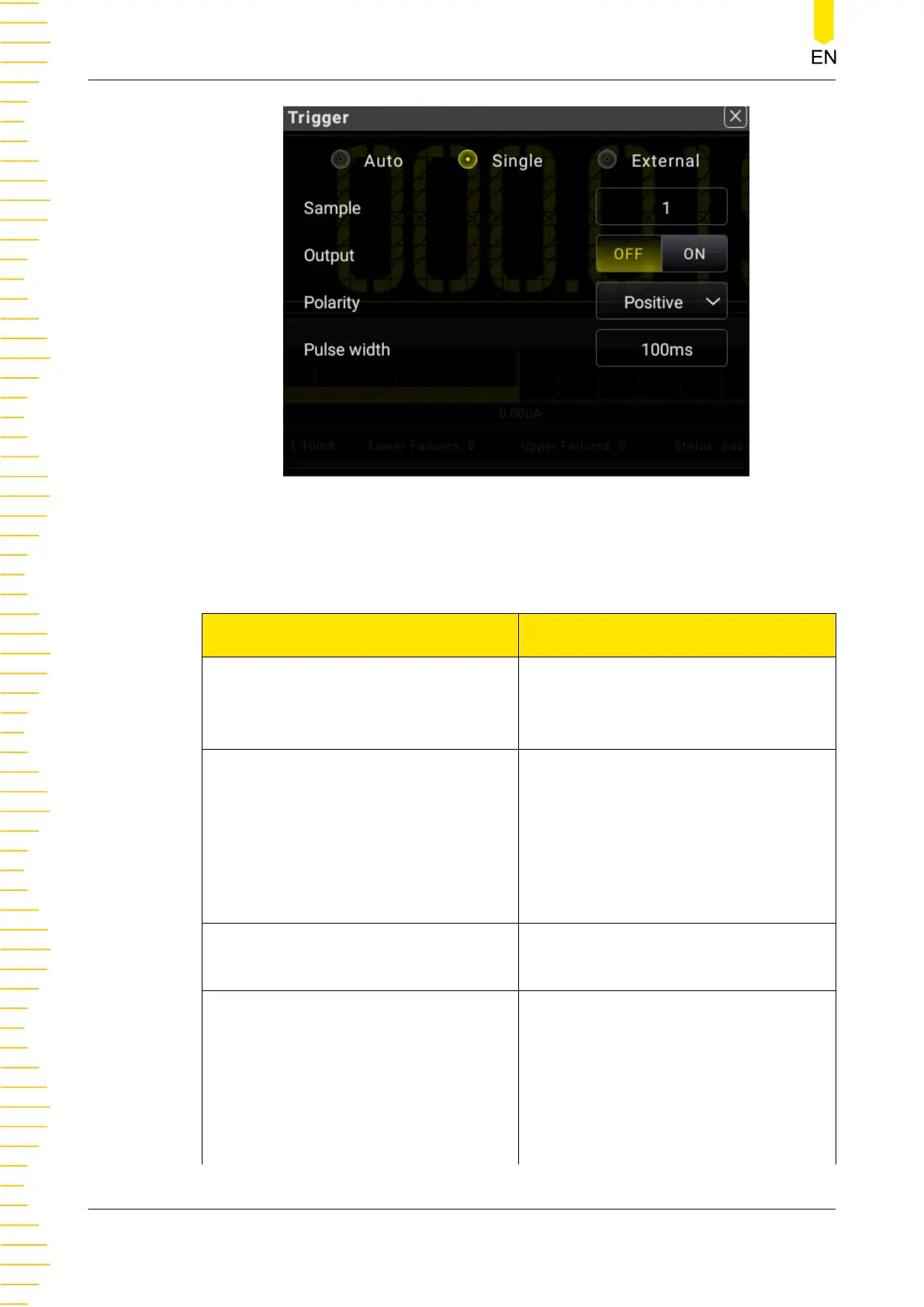

Figure 5.64 Single Trigger Parameter Setting
Table 5.24 Single Trigger Parameter Setting
Parameter Remarks
Sample Count
Sets the number of samples acquired for
each single trigger. The range is from 1
to 2,000. By default, it is 1.
Output
Sets whether to output the pulse signal.
By default, it is OFF.
When enabled, the pulse signal is output
via the rear-panel VM COMP interface.
You can set the polarity and width of the
pulse signal.
Pulse Polarity
Sets the polarity of the output pulse
signal after sampling.
Pulse Width
Sets the pulse width of the output pulse
signal. The range of the pulse width is
different under different measurement
speed.
Fast: The default pulse width in fast
speed is 2 ms. For DM858, its range is
