4.3 To Prepare for Use
4.3.1 To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the multimeter
upwards for stable placement of the multimeter as well as better operation and
observation. You can also fold the supporting legs when the instrument is not in use
for easier storage or shipment, as shown in the figure below.
Supporting
Legs
(a) Unfold the supporting legs
(b) Fold the supporting legs

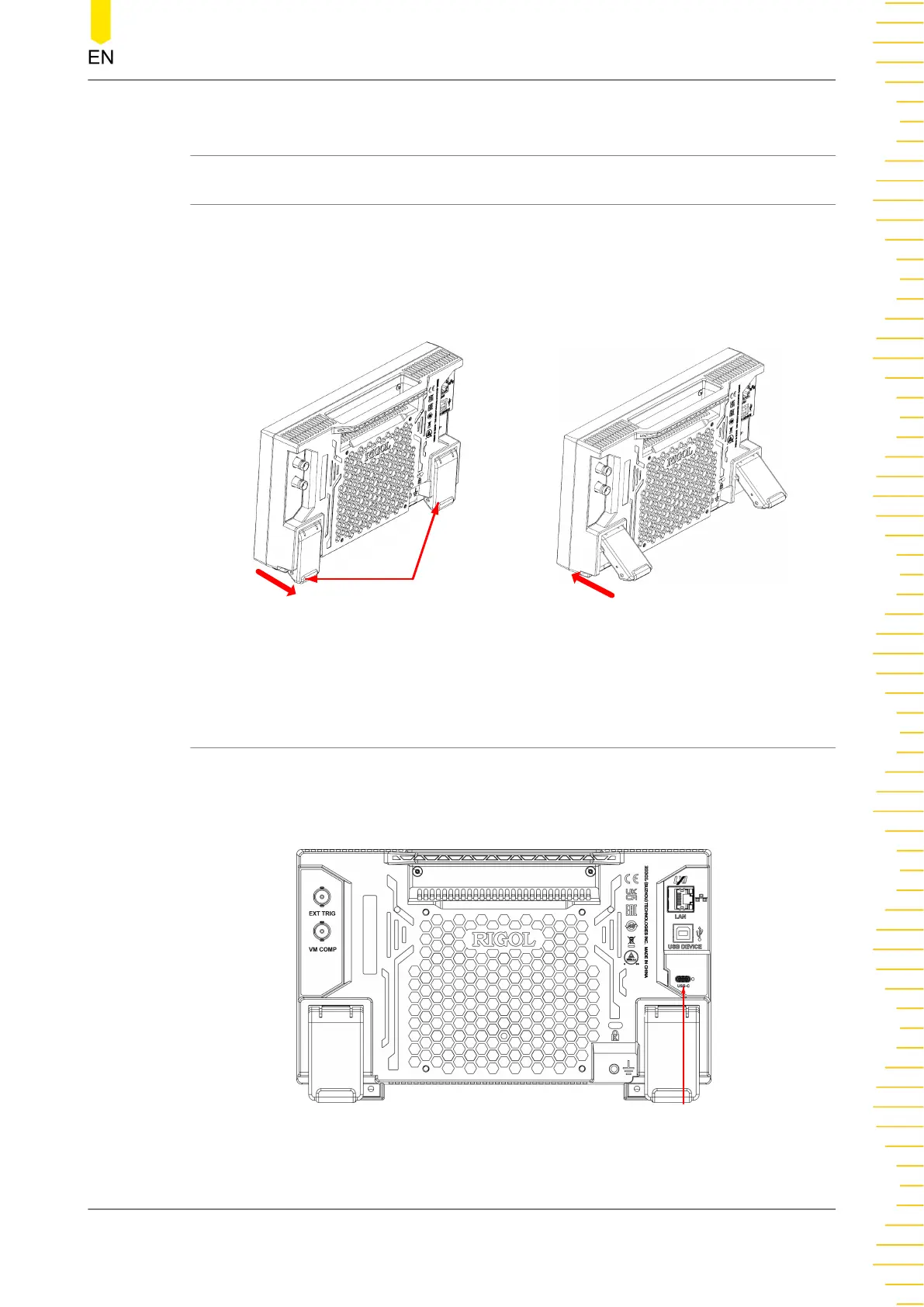

Figure 4.3 Adjusting the Supporting Legs
4.3.2 To Connect to Power
The power requirements of the multimeter are DC, 12 V, 3 A. Please use the power
adaptor provided in the accessories to connect the multimeter to the AC power
source (100 V to 240 V, 50 Hz to 60 Hz), as shown in the figure below.
Power Cord Connector
Figure 4.4 Connect to Power
Quick Start
