Rigol DM858 - Figure 5.7 AC Voltage Measurement Interface; To Measure AC Voltage

5.3.3 To Measure AC Voltage
The instrument can measure up to 750 V AC voltage. The following section introduces
the connection methods and measurement methods of AC voltage.
Operation Procedures:
1. To enter the AC voltage measurement interface, perform either one of the
following two operations.
- Press on the front panel;
- Click or tap the main measurement item shown at the left part of the main
display area. The measurement items are displayed. Click or tap to select
to enter the AC voltage interface.

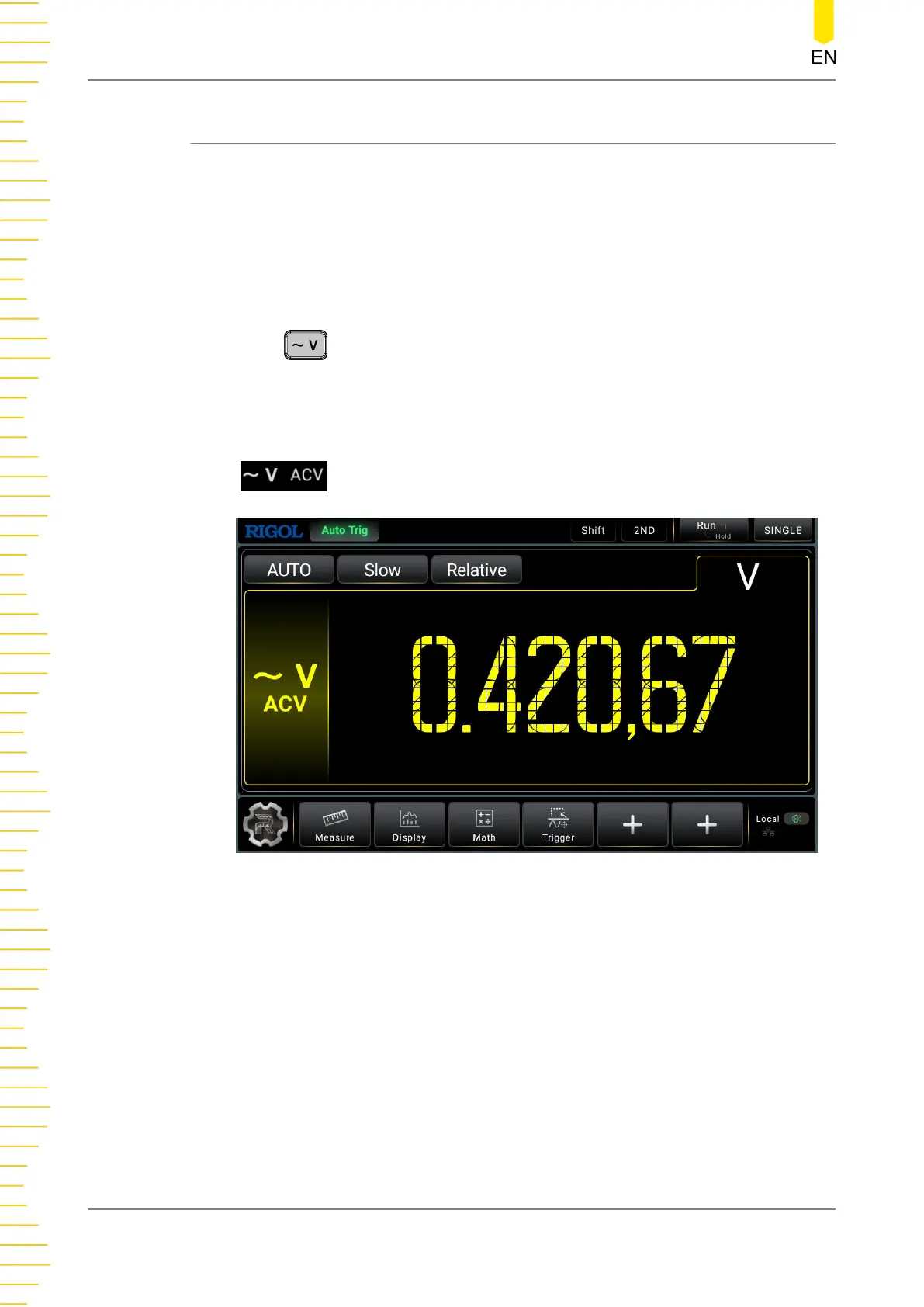

Figure 5.7 AC Voltage Measurement Interface
2. Connect red lead to terminal Input-HI and black lead to terminal Input-LO, as
shown in the figure below.
