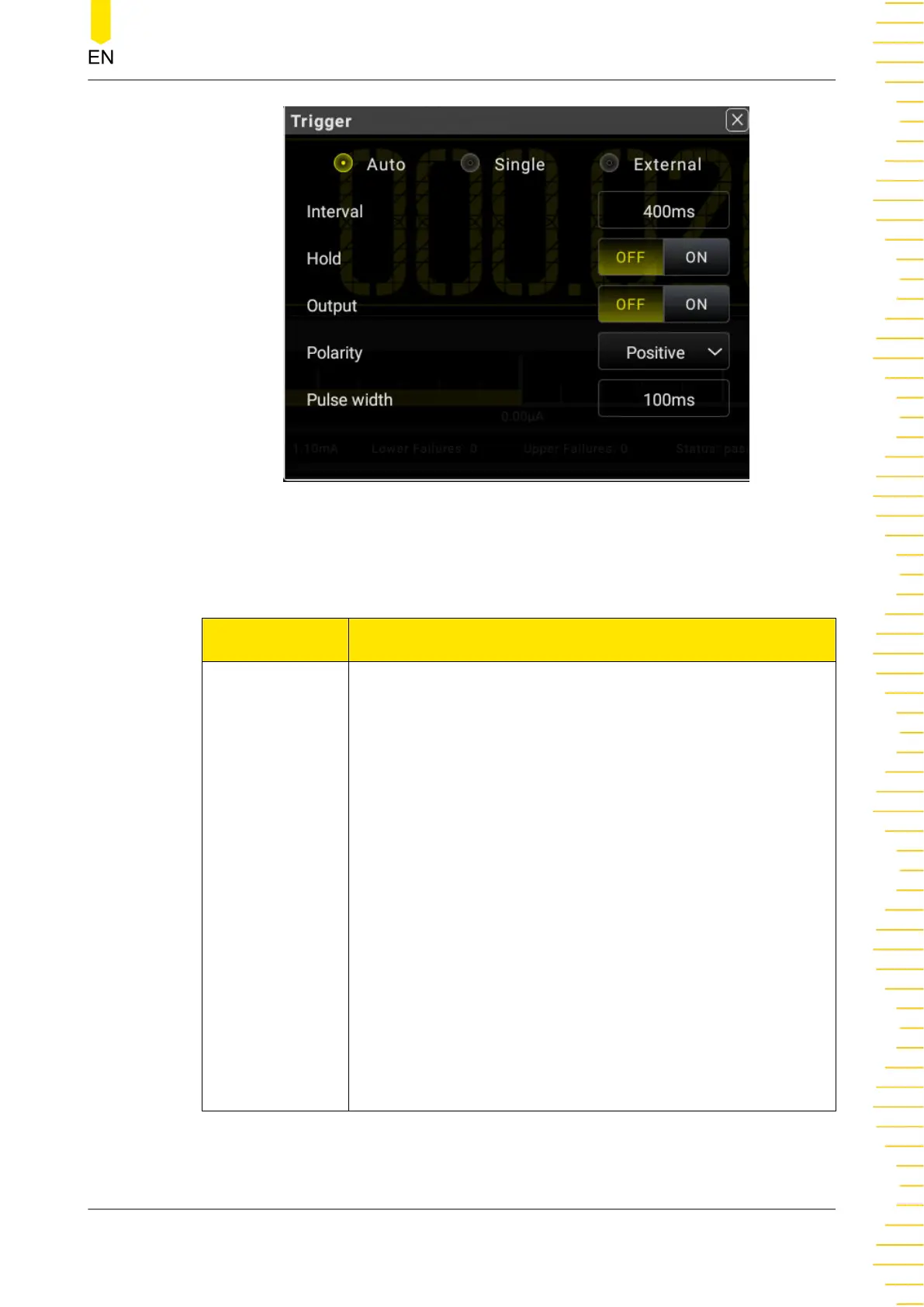

Figure 5.62 Auto Trigger Setting Interface
Table 5.23 Auto Trigger Menu
Parameter Remarks
Interval
Sets the interval of the auto trigger.
• It indicates the waiting time before acquisition when the
trigger signal is sent. The intervals are different for
different measurement speeds.
Fast: The default interval is 8 ms. For DM858, its range is
from 8 ms to 2,000 ms. For DM858E, its range is from12
ms to 2,000 ms.
Medium: The default interval is 50 ms. Its range is from 50
ms to 2,000 ms.
Slow: The default interval for Frequency and Period
measurement is 1,600 ms. Its range is from 1,600 ms to
2,000 ms. The default interval for other measurement is
400 ms. Its range is from 400 ms to 2,000 ms.
The default measurement rate is Slow, and the default
interval is 400 ms.
• The interval is stored in volatile memory.
Front Panel Operation
